Revo RM185-OR1 User Manual
Page 19

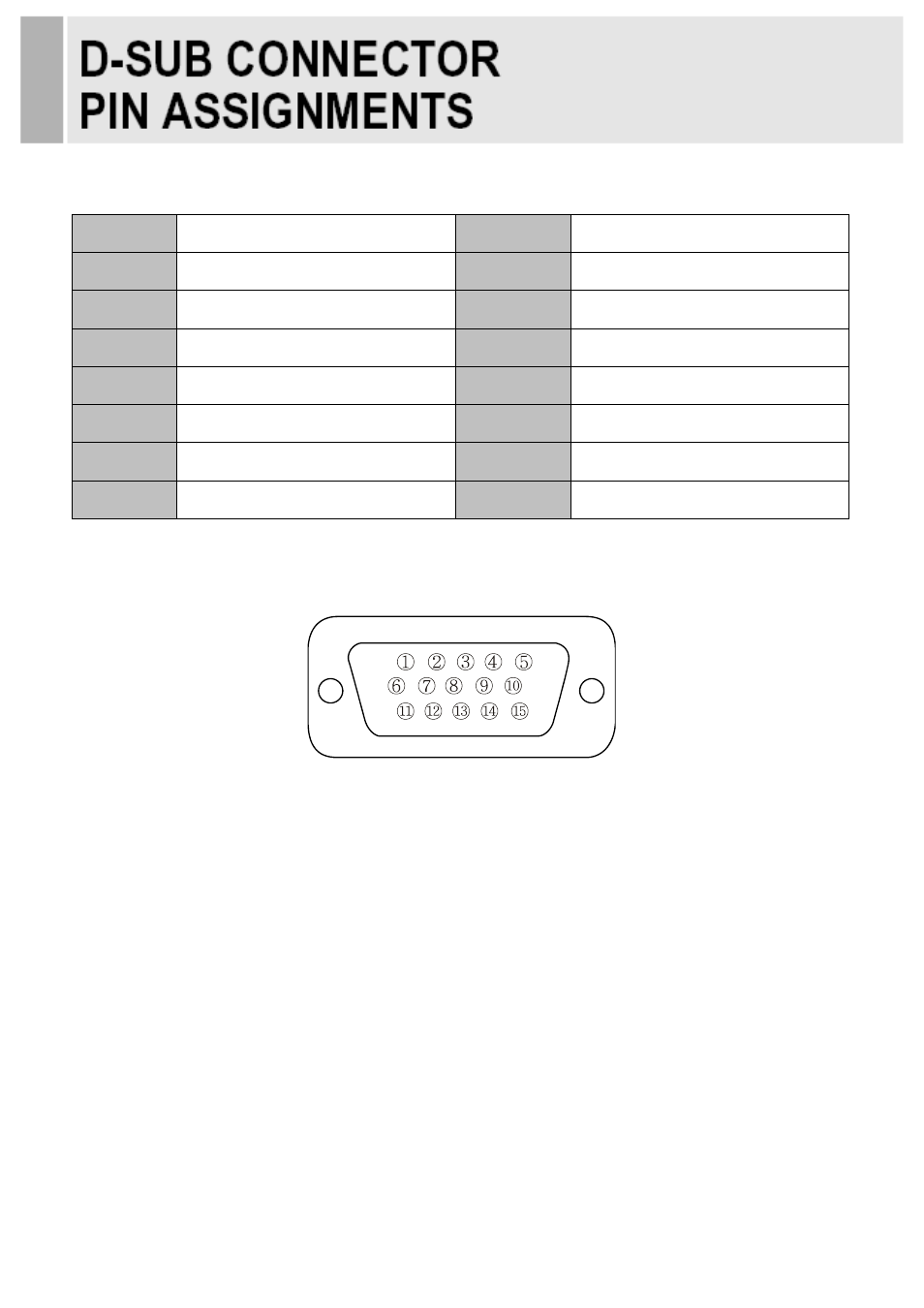

P
▶
in Assignments
Pin 1
RED VIDEO
9
2 GREEN
VIDEO
10
SIGNAL CABLE DETECT
3 BLUE
VIDEO
11 GROUND
4 GROUND
12 SDA(for
DDC)
5 GROUND
13
H-SYNC.(or H+V SYNC.)
6 RED
GROUND
14 V-SYNC.
7 GREEN
GROUND
15 SCL(for
DDC)
8 BLUE
GROUND
D-SUB
▶
Accessories
1. Power Adaptor (Power Cord Included).
2. User Manual.
3. VGA(RGB-PC) Cable.
4. Stand & FS4x12 Screws 2EA.
5. Audio Cable; 3.5mm to RCA.
