Dual timer reversing rear control box assembly – American Dryer Corp. AD-75THS User Manual
Page 42
40
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781
Illus. No.
Part No.
Qty.
Description
1
322812
1
Back Electrical Box Component Plate
2
132198
1
Reversing Timer (50/60 Hz) - 24 VAC
3
150301
2
#8-18 x 7/16” Phillips Pan Head TEK Screw
4
132431
1
Reversing Contactor (208/230/240v, 50/60 Hz) - 24 VAC
132432
2
Reversing Contactor Replacement Coil (208/230/240v, 50/60 Hz) - 24 VAC
5
150103
2
#8-32 x 3/4” Phillips Round Head Machine Screw
6
151001
2
#8-32 Pal Nut
7
153002
1
5/16” Lock Washer
8
152004
1
5/16-18 Hex Nut
9
132430
1
Impellor Contactor (208/230/240v, 50/60 Hz) 24 VAC
132432
1
Impellor Contactor Replacement Coil (208/230/240v, 50/60 Hz) - 24 VAC
10
150103
2
#8-32 x 3/4” Phillips Round Head Machine Screw
11
151001
2
#8-32 Pal Nut
12
120701
1
4-Position Terminal Block
13
150008
2
#6-32 x 1-1/4” Slotted Round Head Machine Screw
14
151000
2
#6-32 Pal Nut
15
121300
3
Open/Close Bushing
---
322809
1
Back Electrical Box Cover ... Not Illustrated
---
150301
4
#8-18 x 7/16” Phillips Pan Head TEK Screw ... Not Illustrated
---
--------
1
Transformer
(refer to Step Down Transformer Usage Listing on page 45)

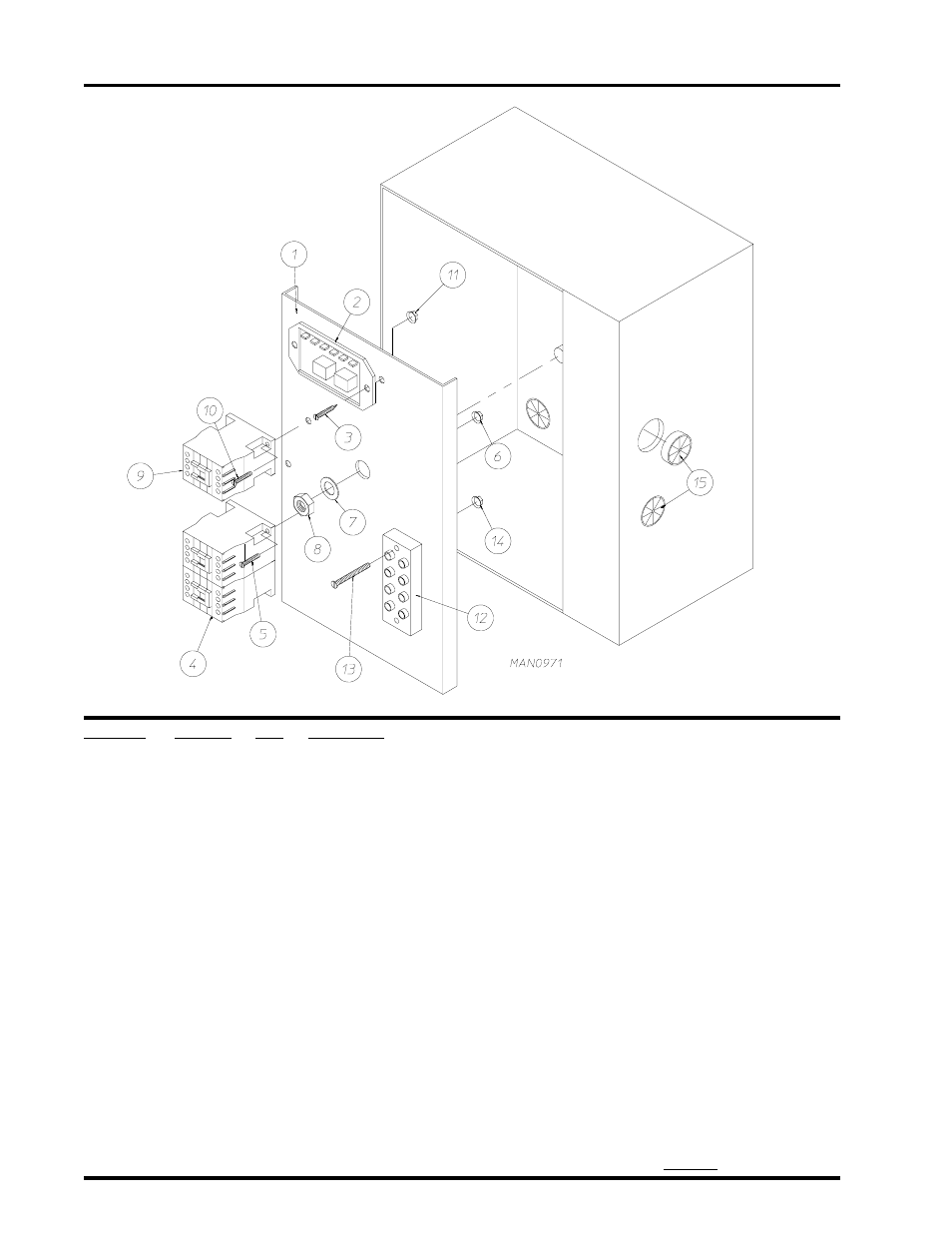

Dual Timer Reversing Rear Control Box Assembly
