Illus. No. Part No. Qty. Description
1 100108 1 5L-680 V-Belt (idler to basket [tumbler])
2 101140 1 14” x 3” Compound Pulley
3 100117 1 4L-620 V-Belt (idler to motor)
For Non-Reversing Models ONLY
100114 1 4L-630 V-Belt (idler to motor)
For Reversing Models ONLY
4 154301 2 5/16-18 x 1” Allen Setscrew
5 100705 1 3/16” x 3/16” x 1-3/8” Key
6 301850 1 5/8” x 3/4” Idler Shaft
7 150529 3 1/4-20 x 2-1/4” Carriage Bolt
8 880214 2 5/8” Flange Bearing
9 153007 3 1/4” Lock Washer
10 152002 3 1/4-20 Hex Nut
11 801007 1 Idler Bearing Assembly Complete
(includes illus. nos. 5 through 17)
12 150617 2 3/8-16 x 1” Hex Head Machine Bolt
13 153005 2 3/8” Lock Washer
14 153004 2 3/8” Flat Washer
15 801009 1 Idler Square Washer
16 152004 1 5/16-18 Hex Nut
17 150509 1 5/16-18 x 3” Hex Head Machine Bolt

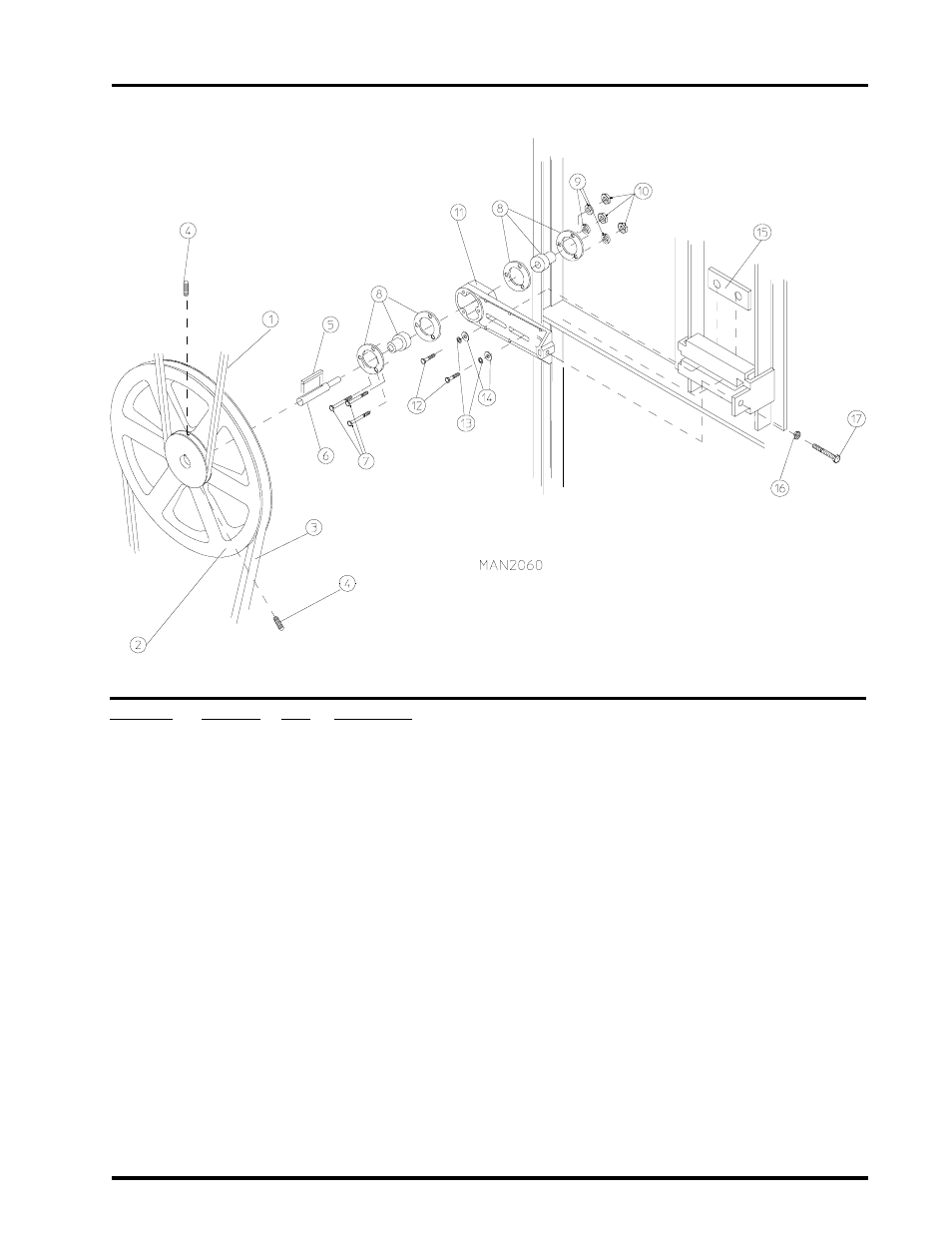

Idler Bearing Assembly
