KYORITSU 1109S - Manual (Page 27)

̶ 25 ̶
⑵ How to Use h
FE
Test Leads

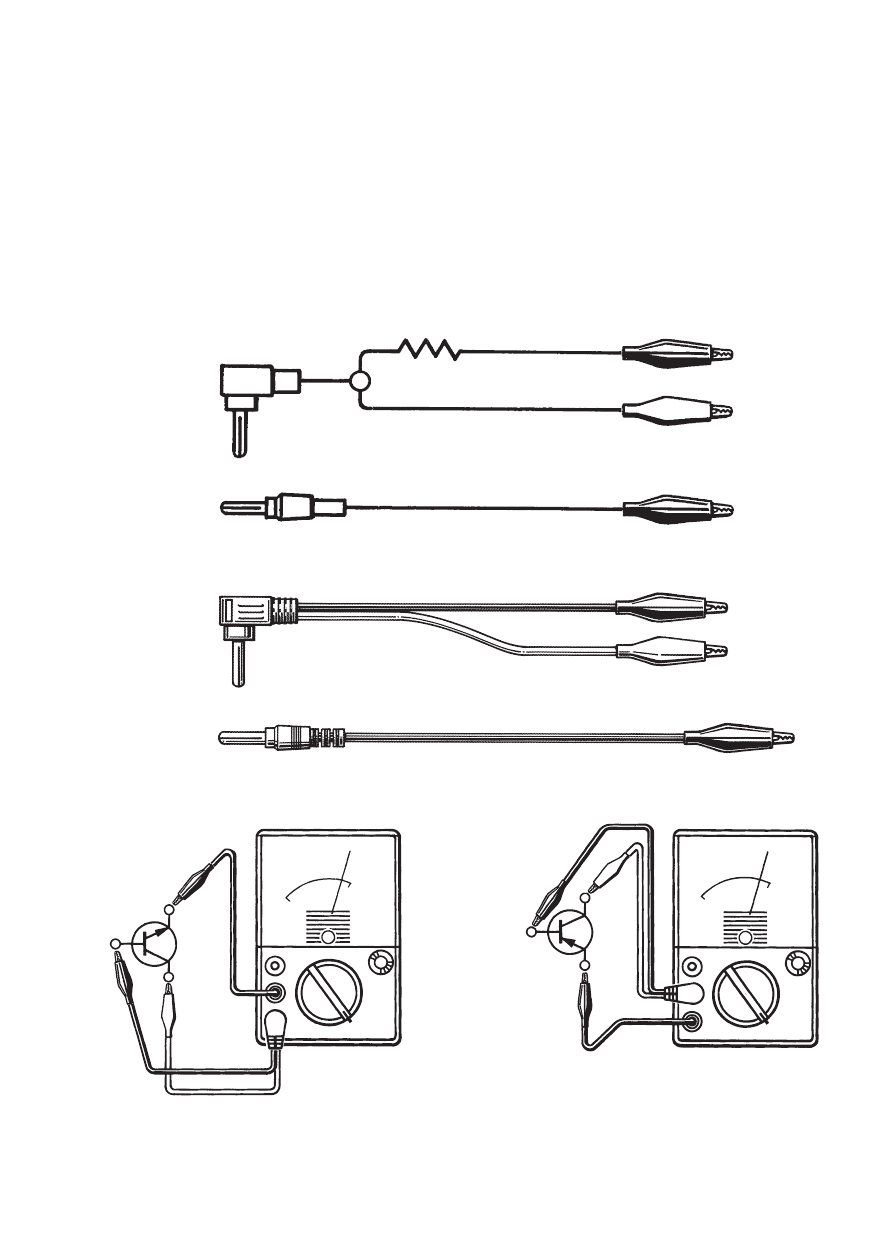

The test lead set mainly consisting of a resistor and a clip as shown
in Fig. 8 is on the market and is recommended for use in making h
FE
measurements.
Test Lead Set for h
FE
Measurements
Fig. 8
Fig. 9
Test Lead (1)
Test Lead (2)
Test Lead (1)
Test Lead (2)
R=24kΩ
(B)
(C)
(E)
h
FE
h
FE
(B) (B)
(C)
(C)
(E)
(E)
P(+)
P(+)
N(-COM)
N(-COM) X10 (h
FE
) X10 (h
FE
)
NPN Type Transistor PNP Type Transistor
(E) EMITTER
(C) COLLECTOR
(B) BASE
