(OHFWULFDOFRQQHFWLRQ
3.1 Connection instructions
Note
Switch off the power supply before starting connection work.
Remove the plug. Loosen the screw (7) and disassemble the plug. Lead the connection cable
through the cable entry and connect the cables according to the following illustration.
1 Socket insert
2 Angle housing
3 Seal ring (3 pcs. for different cable ø)
4 Clamping basket
5 Pressure screw
6 Illuminated ring with LED
7 Connection screw
Plug connection
Terminals 1 - 4 are marked on the plug.

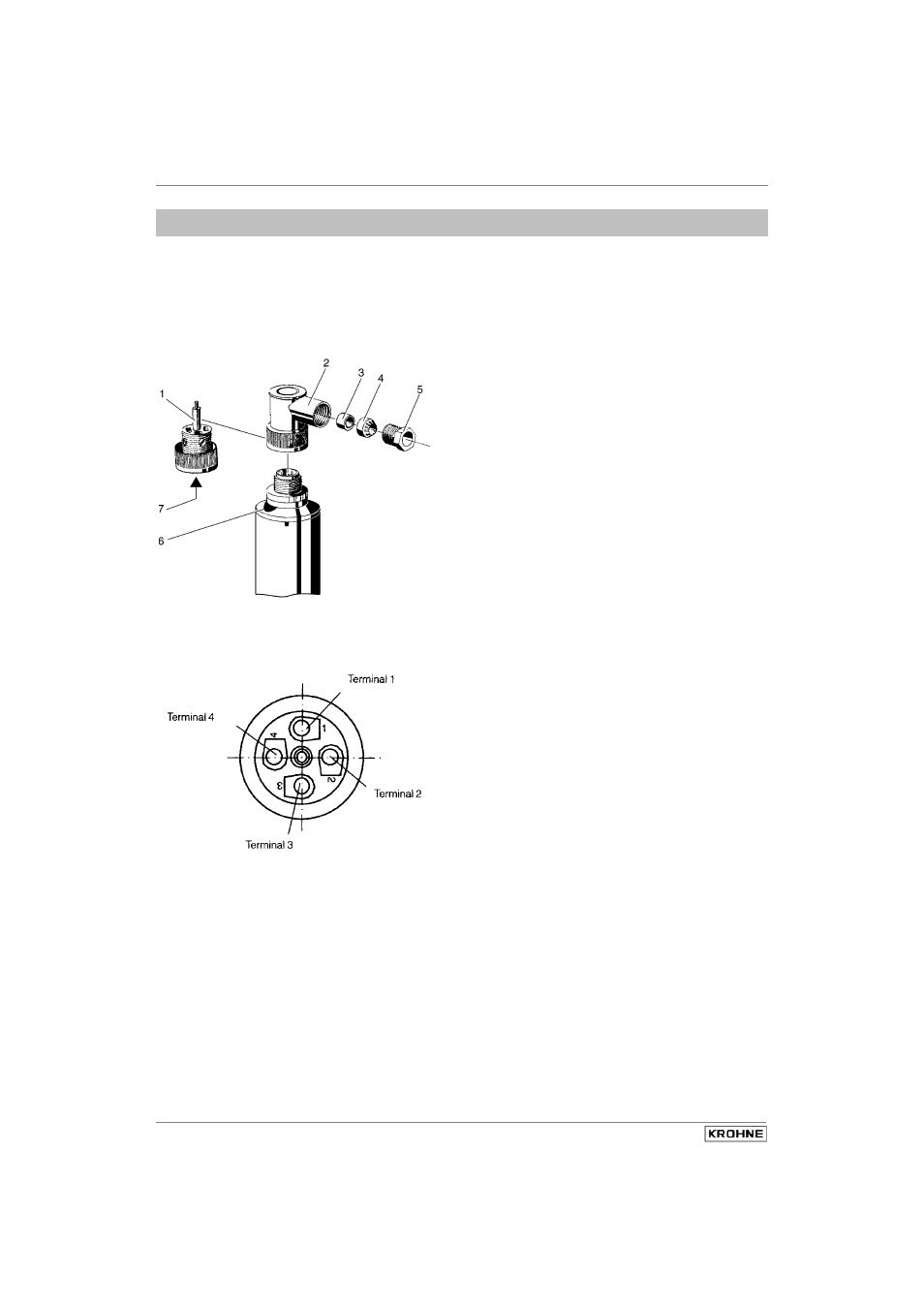

Fig. 3.1
Fig. 3.2
