6.1 Functional principle
The flowmeter operates on the float measuring principle.
The measuring section consists of a glass cone in which a float can move freely up and down.
The medium flows through the flowmeter from bottom to top.
The float adjusts itself so that the buoyancy force A acting on it, the form drag W and its weight G
are in equilibrium.
G = A + W
The flow-dependent height of the float can take reading on a scale of the measuring glass.
The top edge of the float marks the reading line for flow values.

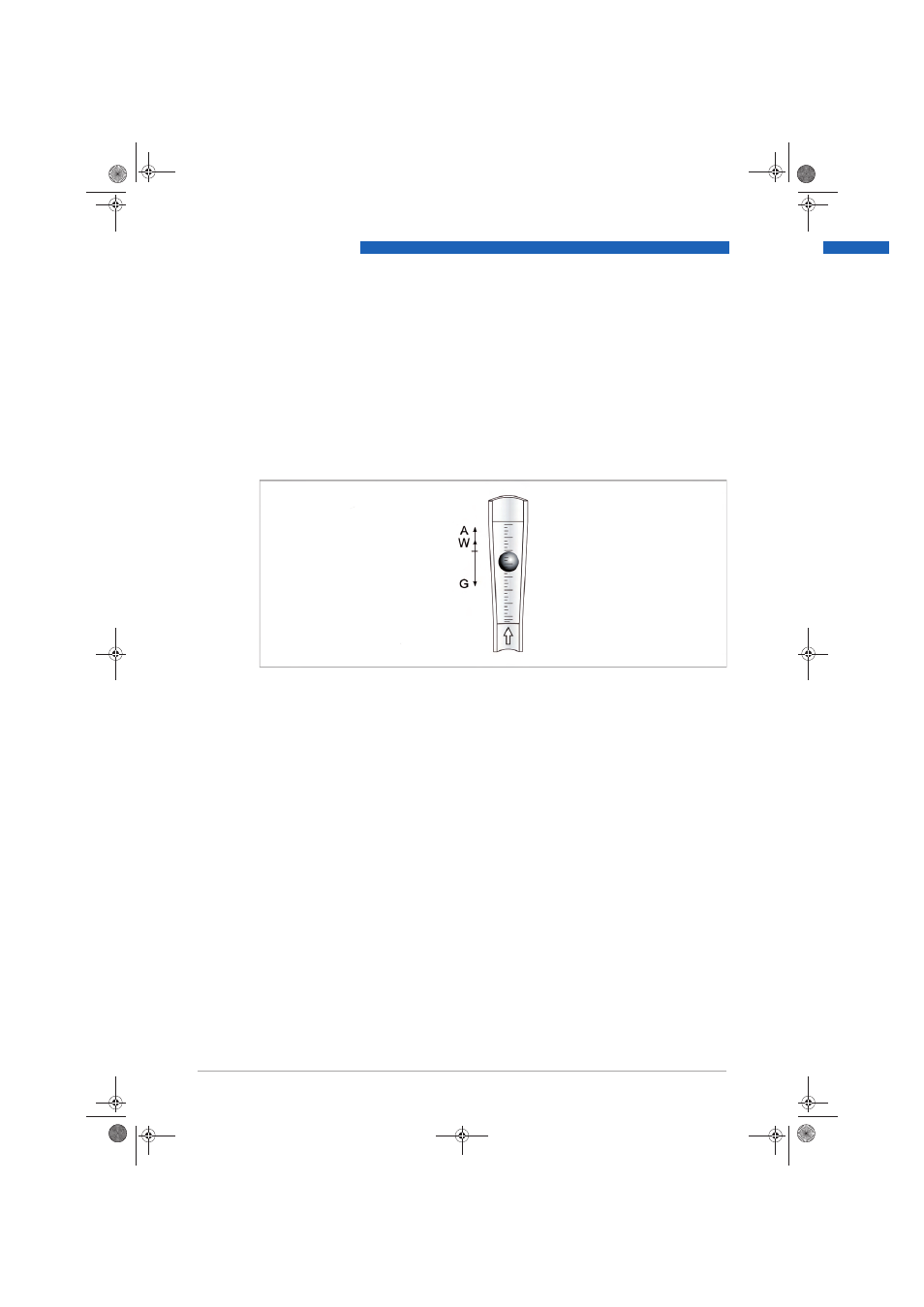

Figure 6-1: Operating principle
