INSTALLATION
2
5
TIDALFLUX 4300 F
www.krohne.com 09/2010 - 7308302300 - QS TIDALFLUX 4000 R03 en
2.3 Installation conditions
2.3.1 Inlet and outlet
2.3.2 Mounting position

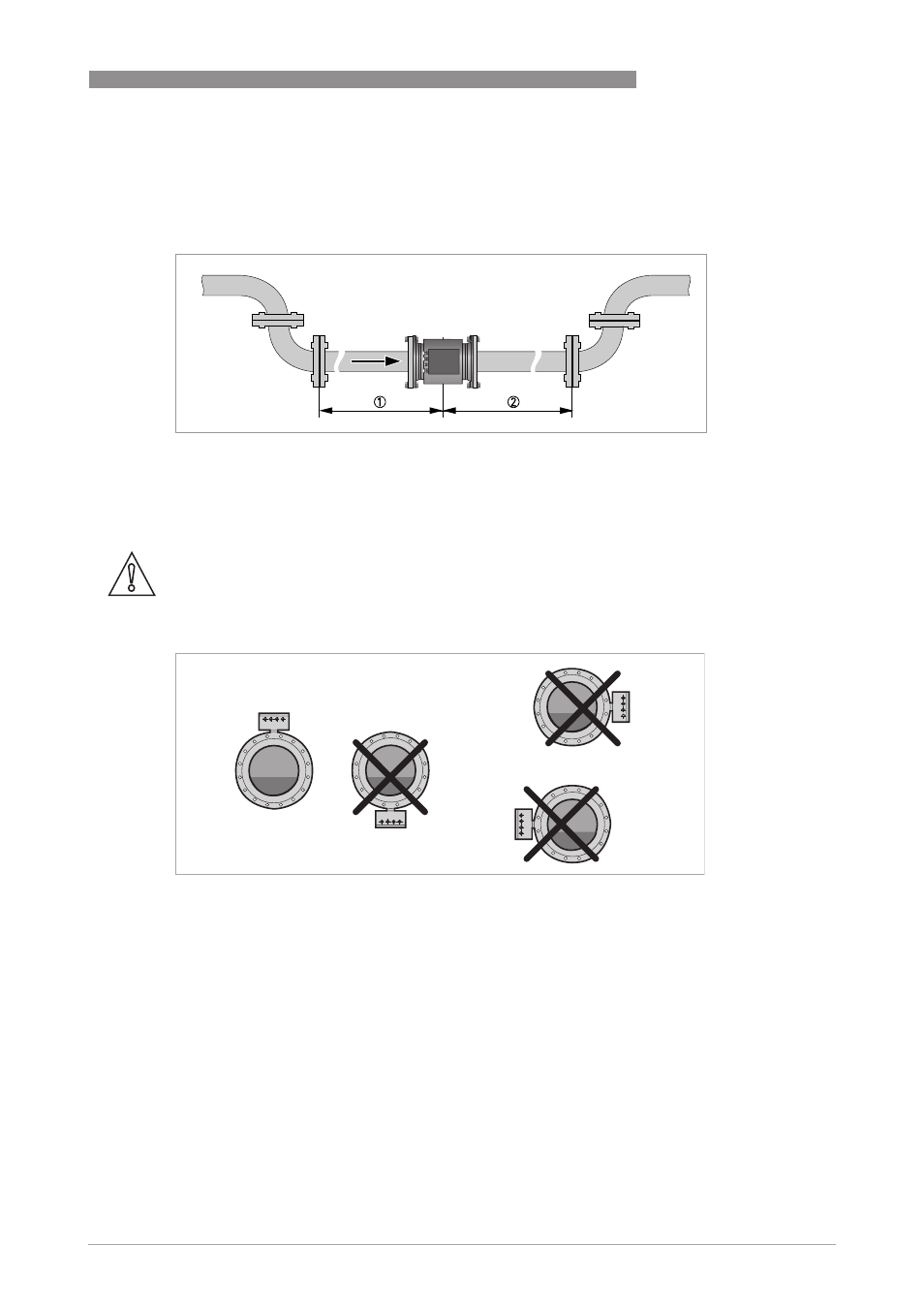

Figure 2-3: Recommended inlet and outlet sections, top view
1 ≥ 5 DN
2 ≥ 3 DN
CAUTION!
Only install the flow sensor in the shown position to keep the electrodes under water. Limit the
rotation to
± 2 ° to maintain the accuracy.
Figure 2-4: Mounting position
