Flow sensors with protection class IP 68 can not be opened anymore. The cables are factory
connected and labeled as follows.
3.4 Cable lengths
Interface cable Interface cable Interface cable Interface cable: maximum length is 600 m / 1968 ft.
Type B (BTS) signal cable Type B (BTS) signal cable Type B (BTS) signal cable Type B (BTS) signal cable: maximum length is 600 m / 1968 ft.
Type A (DS) signal cable Type A (DS) signal cable Type A (DS) signal cable Type A (DS) signal cable: maximum length depends on the conductivity of the fluid:

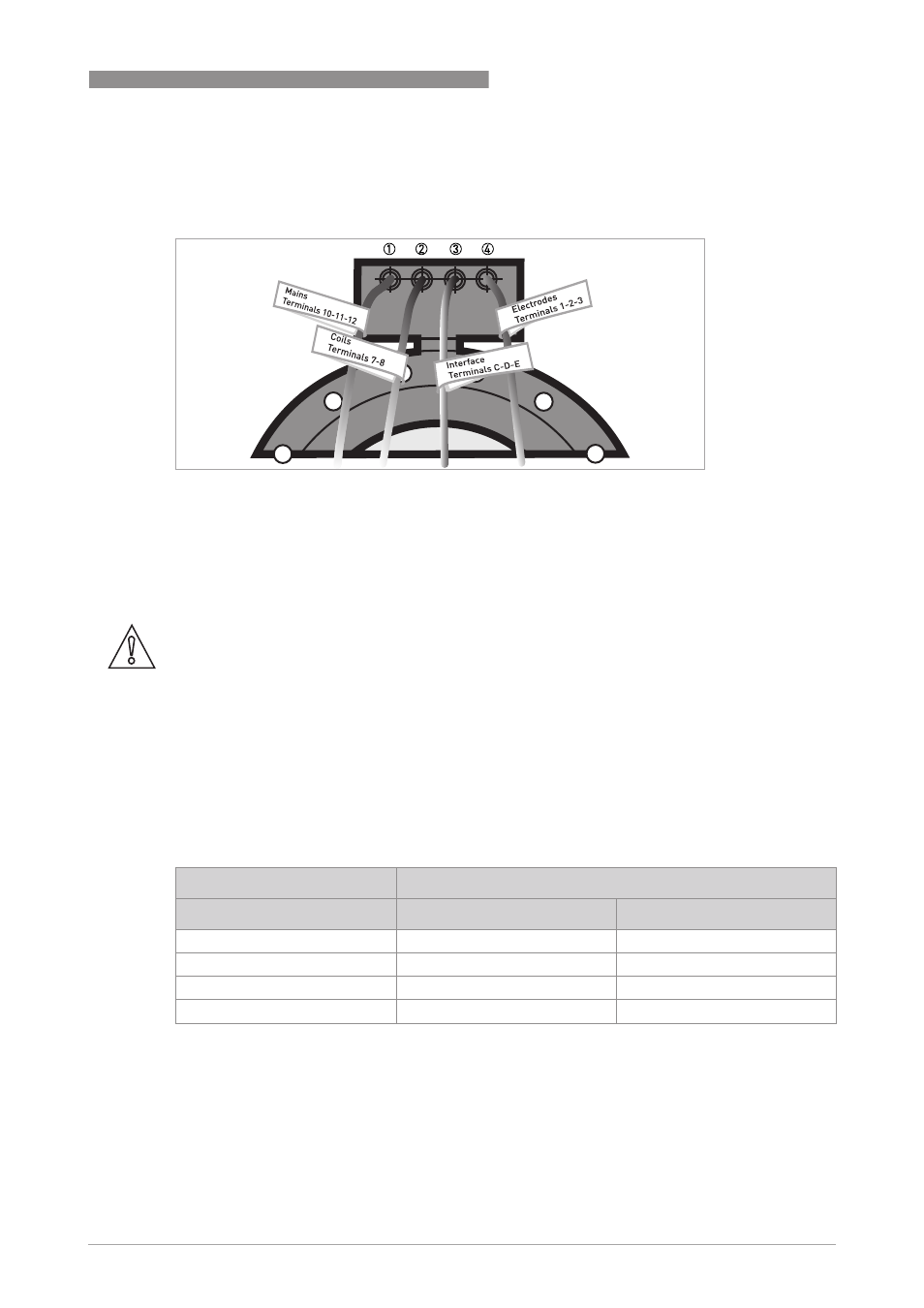

Figure 3-3: Labeled cables for IP 68 versions
1 Mains power (10 = blank, 11 = blue, 12 = black)
2 Field current (7 = white, 8 = green)
3 Data interface (black wires, C = marked "1", D = marked "2", E = marked "3")
4 Electrodes (1 = blank, 2 = white, 3 = red)
CAUTION!
The maximum allowed distance between the flow sensor and the converter is determined by the
shortest cable length.
Electrical conductivity Maximum length
[µS/cm] [m] [ft]
50 120 394
100 200 656
200 400 1312
≥400 600 1968
