ELECTRICAL CONNECTIONS
4
17
OPTISWITCH 6500 C
www.krohne.com 01/2014 - 4000649104 - MA OPTISWITCH 6500 R04 en
Digital output
4.4 Configuration tool
The configuration tool can be ordered optionally to configure the OPTISWITCH 6500 C.
Scope of delivery:
• Interface unit
• CD with software and product drivers (DTM)
• USB cable
• Cable with 2 alligator clips
• M12 connection cable
The configuration tool connects the OPTISWITCH 6500 C with a computer. With the
corresponding software, it is possible to get an online communication with the
OPTISWITCH 6500 C.
By using this tool, device information like serial number, switching point range and tag numbers
are displayed on the computer. Settings as switching point, damping, polarity and output can be
changed.
Self-learning function for the contact output is possible as well as reset function to the default
values of the switching point.
By fine-tuning of the switching point settings, OPTISWITCH 6500 C could differentiate between
various products which are covering the sensor. In other words, the device could be set to trigger
on a specific product and ignore a second product. Basis for this would be a different ε
r
value of
these two products.

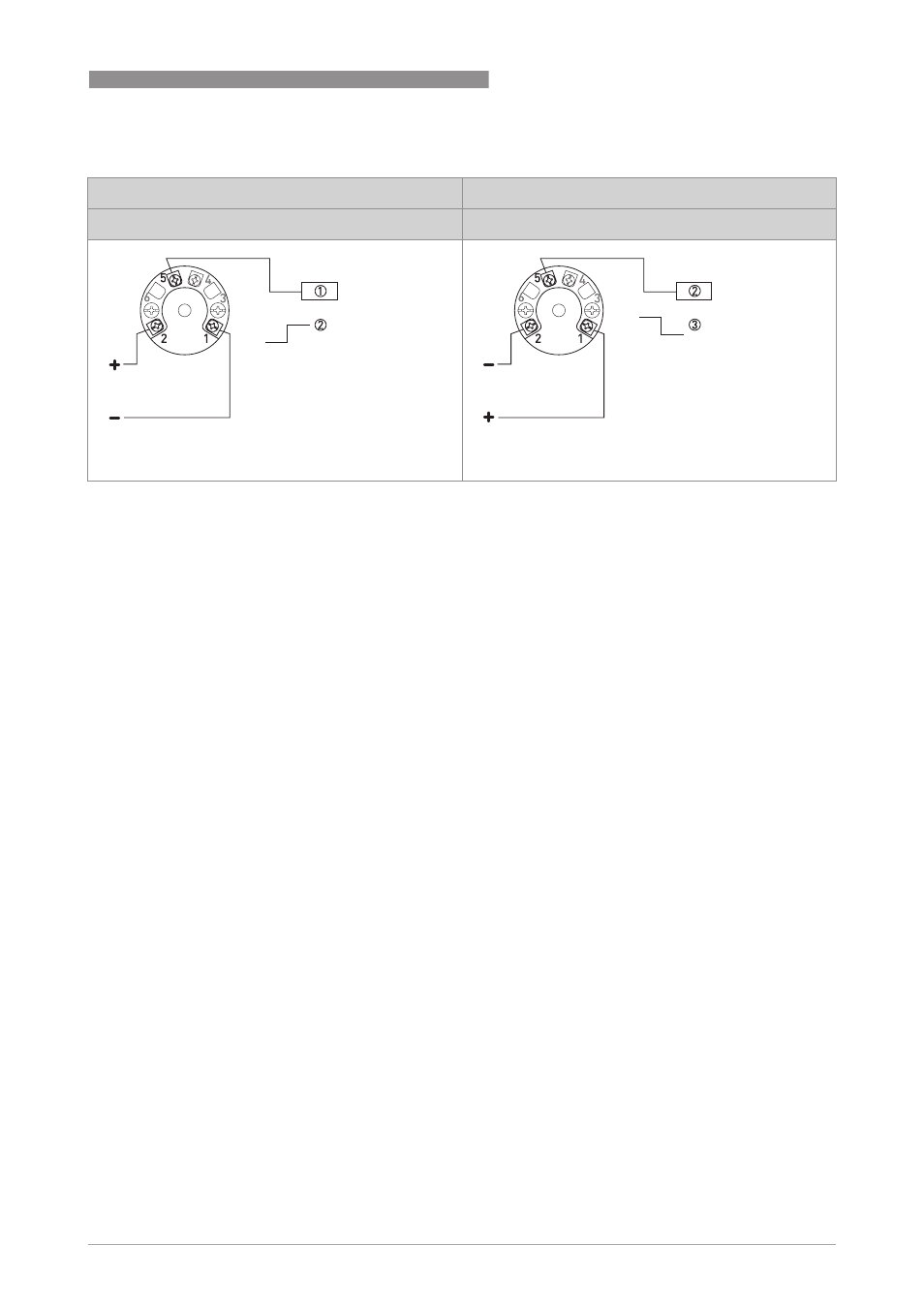

Normally open Normally closed
M16 M16
1 PLC
2 active high
1 PLC
2 active low
