ELECTRICAL CONNECTIONS
3
23
IFC 050
www.krohne.com 08/2013 - 4002257402 - QS IFC 050 R02 en
3.9 Electrical connection of the outputs
3.9.1 Electrical connection of the outputs
• Open the housing cover
• Push the prepared cables through the cable entries and connect the necessary conductors.
• Connect the shield.
• Close the housing cover.
INFORMATION!
Assembly materials and tools are not part of the delivery. Use the assembly materials and tools
in compliance with the applicable occupational health and safety directives.
DANGER!
All work on the electrical connections may only be carried out with the power disconnected. Take
note of the voltage data on the nameplate!

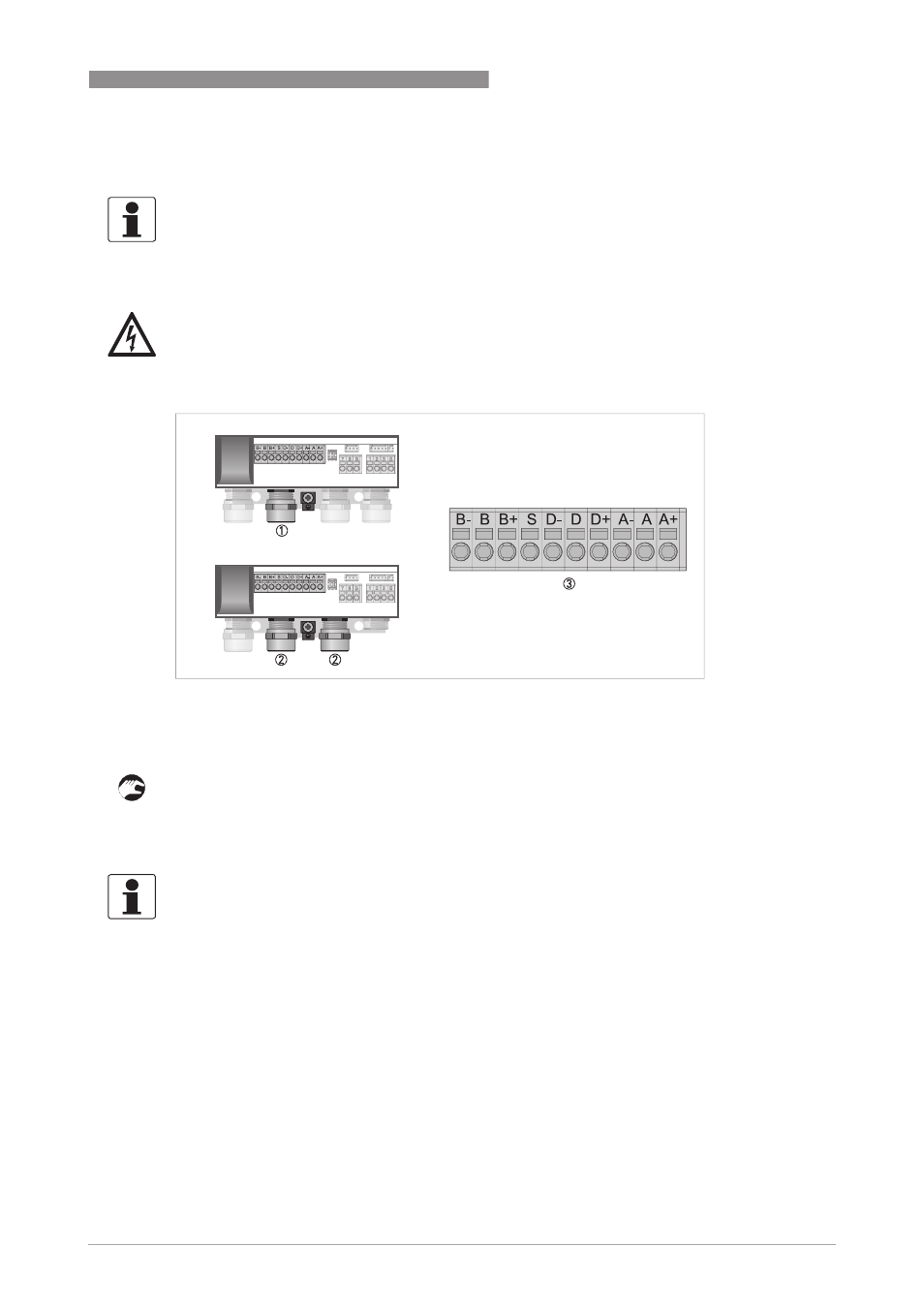

Figure 3-11: Electrical connection of the outputs
1 Cable entry, remote version
2 Cable entry, compact version (right cable entry is optional)
3 Terminal block for the connection of outputs
INFORMATION!
Ensure that the housing gasket is properly fitted, clean and undamaged.
