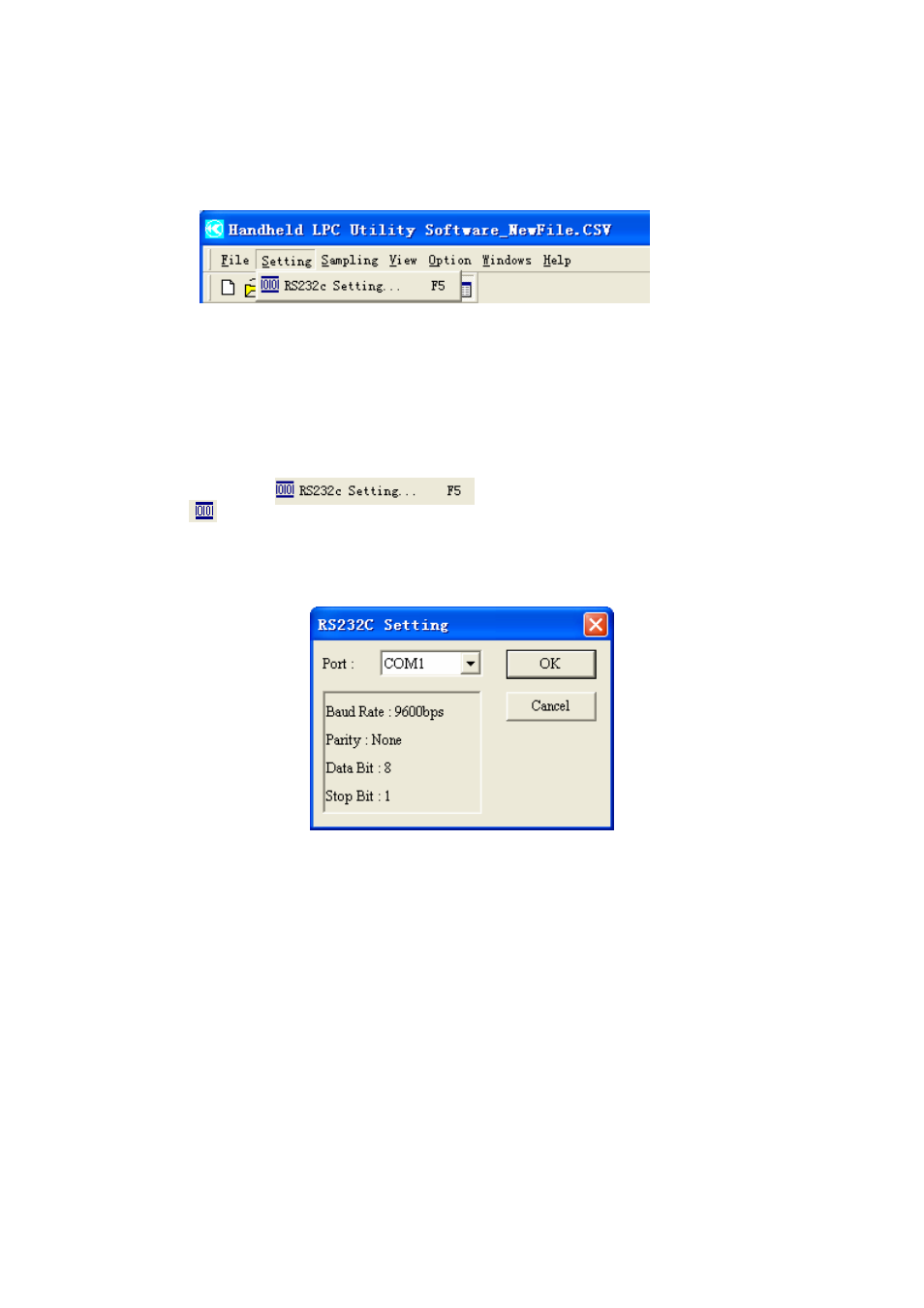

5. Communication Setting

To enable communication between the Handheld LPC and the computer, the RS232C COM port must be set.

5.1 Setting RS232C COM Port

To set the RS232C COM port, perform any of the following procedures:

1) Click: [Setting] →
2) Click:
3) Press the F5 key

The following RS232C Setting dialog box will open

Fig. 5-2 RS232C Setting Dialog Box

Caution:

Select the COM port number which corresponds to the RS-232C port number of your computer.

Fig. 5-1 Setting Menu
