KANOMAX 6332D Airflow Transducer - Manual (Page 17)

10

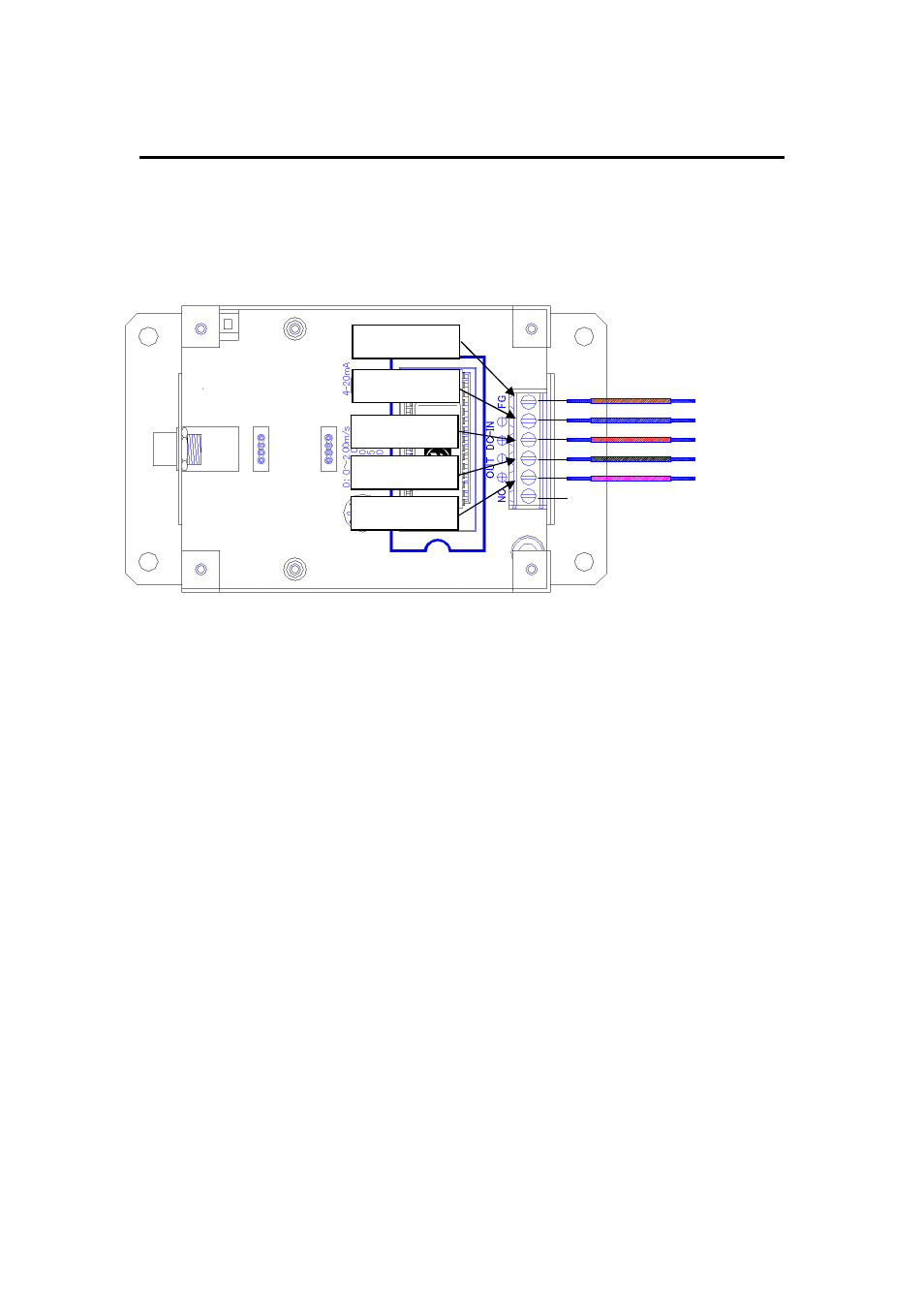

Connecting Output and Power Supply
- Pay attention to the polarity of power supply when connecting.
- Power supply voltage must be DC 12 to 24V.
(*1) FG: Frame Ground -------- Connect to ground (earthing).
(*2) NC: No Connection ------- Connection is not required.
FG Terminal
DC-IN Term.
-
DC-IN Term. +
OUT Term.
-
FG (*1)
Power Supply Input (-)
Power Supply Input (+)
Signal Output (-)
Signal Output (+)
(*2)
OUT Term. +
