SECTION 9 – TrOuBLESHOOTING
9.1
ACCESSOry ErrOr COdES
If an error code is displayed it will be accompanied by a clipboard icon and a number to indicate the
cause of the error. The first time that an error is displayed, it will be possible to repeat the erroneous
measurement. If the same error message is shown after the repeat measurement, the complete calibra-
tion process will need to be repeated. The table below shows the error codes:
9.1.1
Calibration Procedure Error Codes

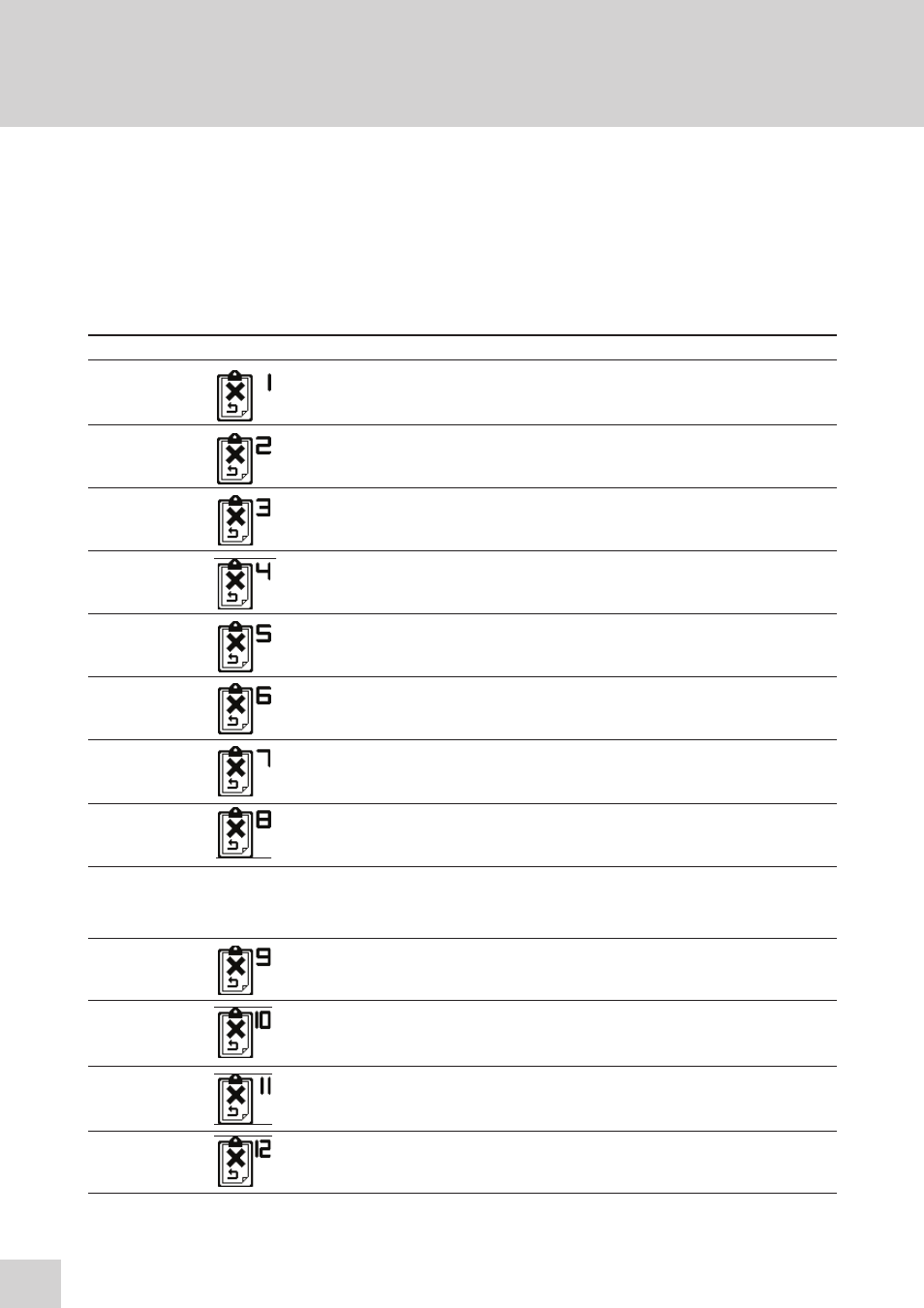

Error Code
Symbol
Issue
1
Blank solution reading, 0.5mm path length, outside of acceptable range
2
Blank solution reading, 0.2mm path length, outside of acceptable range
3
Calibration solution reading, 0.5mm path length, outside of acceptable
range
4
Calibration solution reading, 0.2mm path length, outside of acceptable
range
5
Duplicate calibration solution readings, 0.5mm path length, outside of
acceptable range
6
Duplicate calibration solution readings, 0.2mm path length, outside of
acceptable range
7
0.2mm path length factor outside of acceptable range
8
0.5mm path length factor outside of acceptable range
9.1.2
Verification Check Error Codes
9
Blank solution reading, 0.5mm path length, outside of acceptable range
10
Blank solution reading, 0.2mm path length, outside of acceptable range
11
Calibration solution reading, 0.5mm path length, outside of acceptable
range
12
Calibration solution reading, 0.2mm path length, outside of acceptable
range
23
