LIMITED WARRANTY
INOR Process AB, or any other affiliated company within the Inor Group (hereinafter jointly
referred to as ”Inor”), hereby warrants that the Product will be free from defects in materials
or workmanship for a period of five (5) years from the date of delivery (”Limited Warranty”).
This Limited Warranty is limited to repair or replacement at Inor’s option and is effective only for
the first end-user of the Product. Upon receipt of a warranty claim, Inor shall respond within a
reasonable time period as to its decision concerning:
1 Whether Inor acknowledges its responsibility for any asserted defect in
materials or workmanship; and, if so,
2 the appropriate cause of action to be taken (i.e. whether a defective
product should be replaced or repaired by Inor).
This Limited Warranty applies only if the Product:
1 is installed according to the instructions furnished by Inor;
2 is connected to a proper power supply;
3 is not misused or abused; and
4 there is no evidence of tampering, mishandling, neglect, accidenta damage, modifica
tion or repair without the approval of Inor or damage done to the Product by
anyone other than Inor.
This Limited Warranty is provided by Inor and contains the only express warranty provided.
INOR SPECIFICALLY DISCLAIMS ANY EXPRESS WARRANTY NOT PROVIDED HEREIN
AND ANY IMPLIED WARRANTY, GUARANTEE OR REPRESENTATION AS TO SUITA-
BILITY FOR ANY PARTICULAR PURPOSE, PERFORMANCE, QUALITY AND ABSENCE
OF ANY HIDDEN DEFECTS, AND ANY REMEDY FOR BREACH OF CONTRACT, WHICH
BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION, OPERATION OF LAW,
CUSTOM OF TRADE OR COURSE OF DEALING, INCLUDING IMPLIED WARRANTIES
OF MER-CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. EXCEPT AS
PROVIDED HEREIN, INOR FURTHER DISCLAIMS ANY RESPONSIBILITY FOR LOSSES,
EXPENSES, INCONVENIENCES, SPECIAL, DIRECT, SECONDARY OR CONSEQUENTIAL
DAMAGES ARISING FROM OWNERSHIP OR USE OF THE PRODUCT.
Products that are covered by the Limited Warranty will either be repaired or replaced at the
option of Inor. Customer pays freight to Inor, and Inor will pay the return freight by post or other
“normal” way of transport. If any other type of return freight is requested, customer pays the
whole return cost.

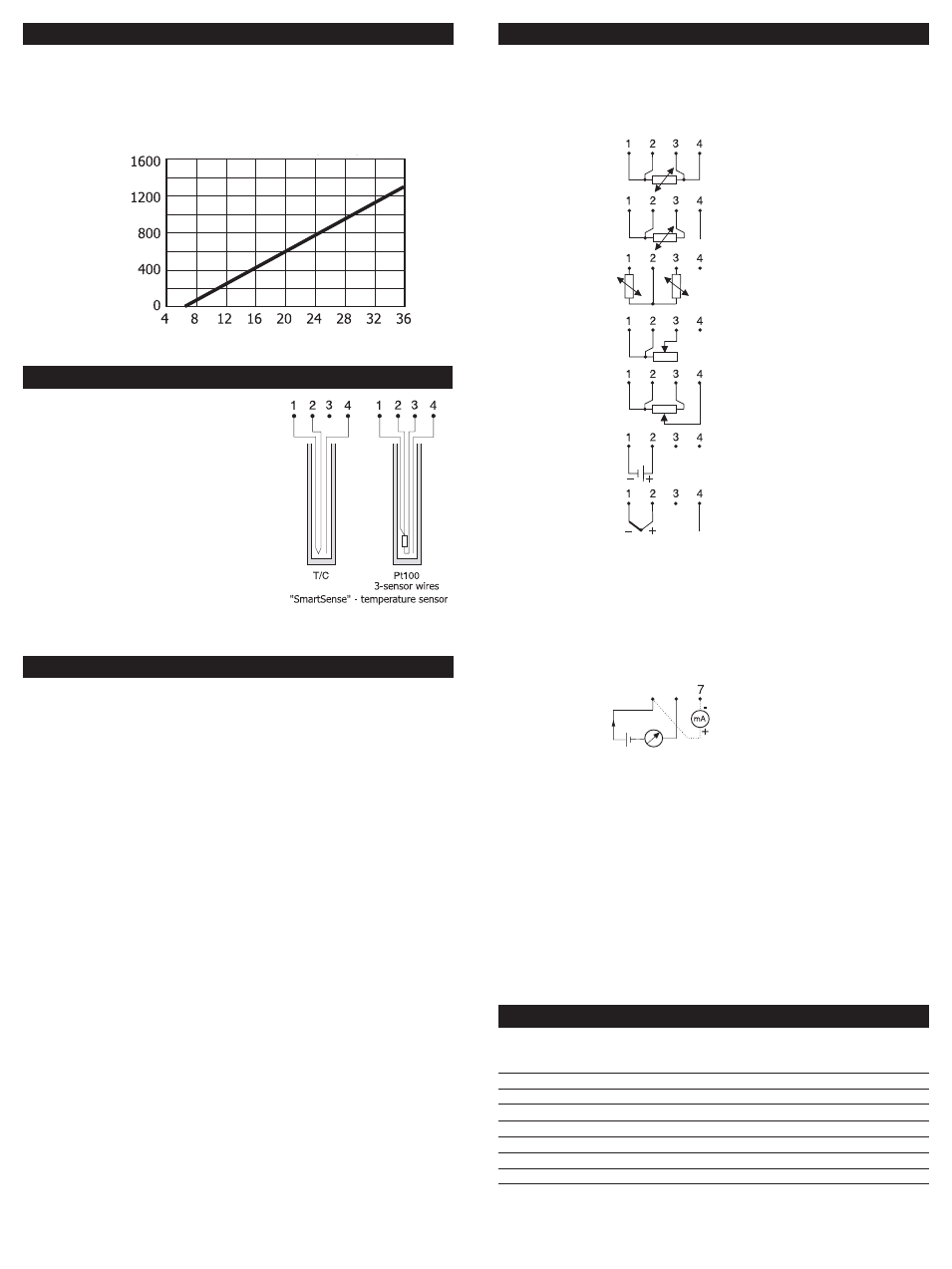

DATA (shortform)
ORDERING INFORMATION
RTD
CONNECTIONS
Power supply 7 - 36 VDC
Ambient temperature -20 to + 70 °C
-4 to +158 °F
Isolation input/output/PC 3750VAC
Mounting Rail DIN50022, 35 mm
R
LOAD
(Ω)
Supply voltage U (VDC)
R
LOAD
= (U-7)/0.022
SMART SENSE (Low isolation detection)
The transmitter continuously supervises
the isolation resistance in thermo-
couples and 3-wire-connected
Pt100/D100 including the
connection wires. If the isolation
resistance is low it causes error
in the measurements and consequently
a faulty output. The transmitter indicates
low isolation resistance by forcing the out-
put to a preprogrammed value. This func-
tion requires setting by the PC-program
IPRO and the use of a temperature
sensor with an extra wire.
IPAQ-L PLUS 70IPLP0001
Options
Configuration 70CAL00001
Configuration with 5-point
calibration certificate 70CAL00051
Software and cable
Configuration kit IPRO with cables 70CFG00092
Software IPRO upgrade www.inor.com
Input signal, power supply and output signal are connected according
to figures.
T
1
T
2
6
+ -
5
mV
RTD
(Pt100)
T/C
RTD
100% 0%
RTD
RTD
(Pt100)
100% 0%
Output connections
Input connections
RTD
4-wire connection
*
Low isolation detection lead (Pt100)
RTD
3-wire connection
Pt100
Diff temperature T 1 > T 2
Potentiometer
3-wire connection
Potentiometer
4-wire connection
Voltage
mV
Thermocouple
I
OUT
Test 1)
1) Ri ≤ 10 Ω
T
1
T
2
6
+ -
5
mV
RTD
(Pt100)
T/C
RTD
100% 0%
RTD
RTD
(Pt100)
100% 0% *
*
*
Low isolation detection lead
R
LOAD
