2. GENERAL DESCRIPTION
QUICKLAN 6055 is an easy cable tester for LAN cables with RJ45 connector of
whatsoever category. It’s able to detect cable failures and check wirings in UTP
(Unshielded Twisted Pair) and STP (Shielded – screened shielded Twisted Pair) cables.
The instrument not only identifies wiring faults, such as open wires, shorted wires,
miswires and split pairs, but also tests up to 8 different cables at one end thanks to eight
different optional remote units (see § 7.4.2).

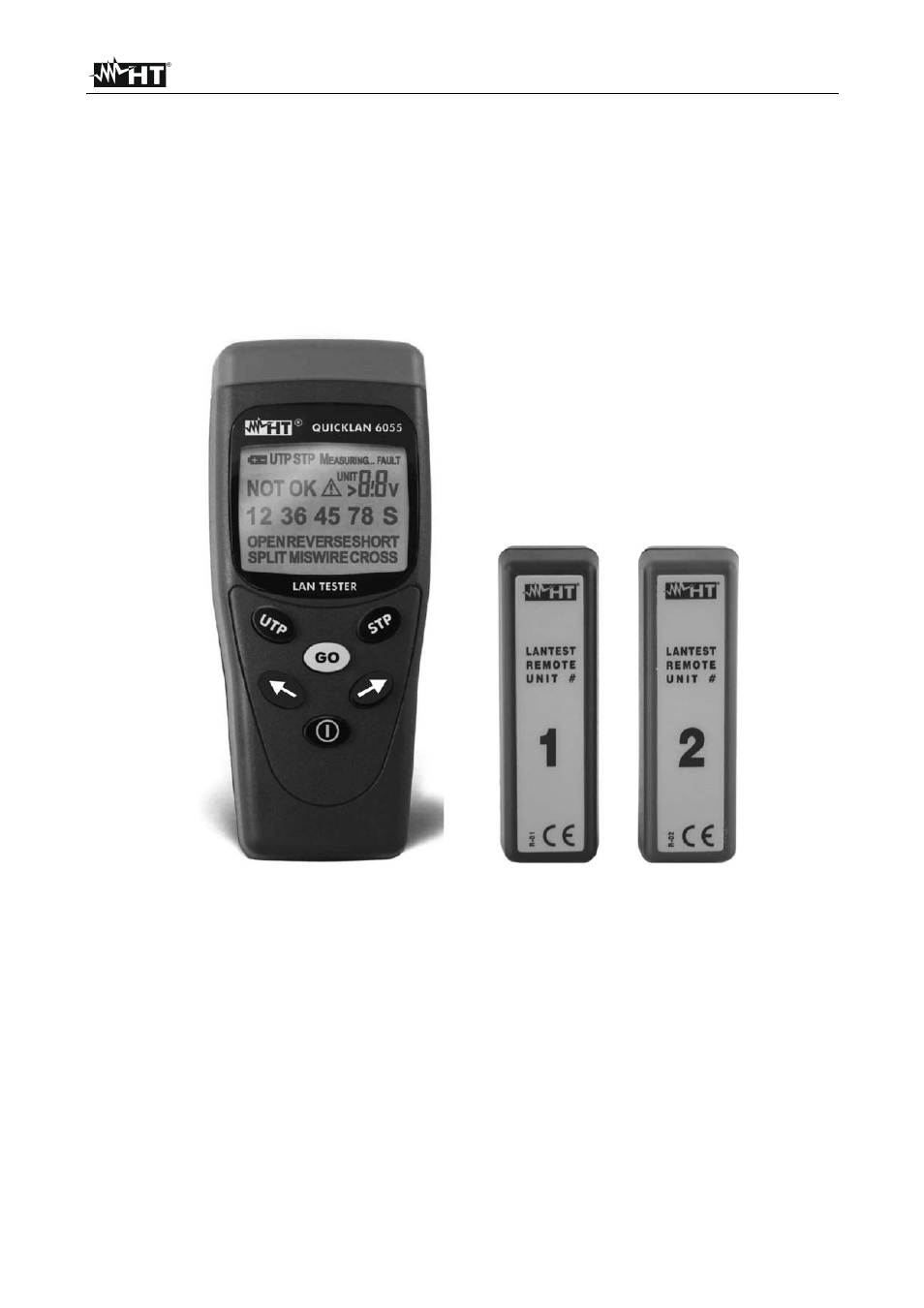

Fig. 1: Instrument and remote units #1 and #2
