User’s Manual

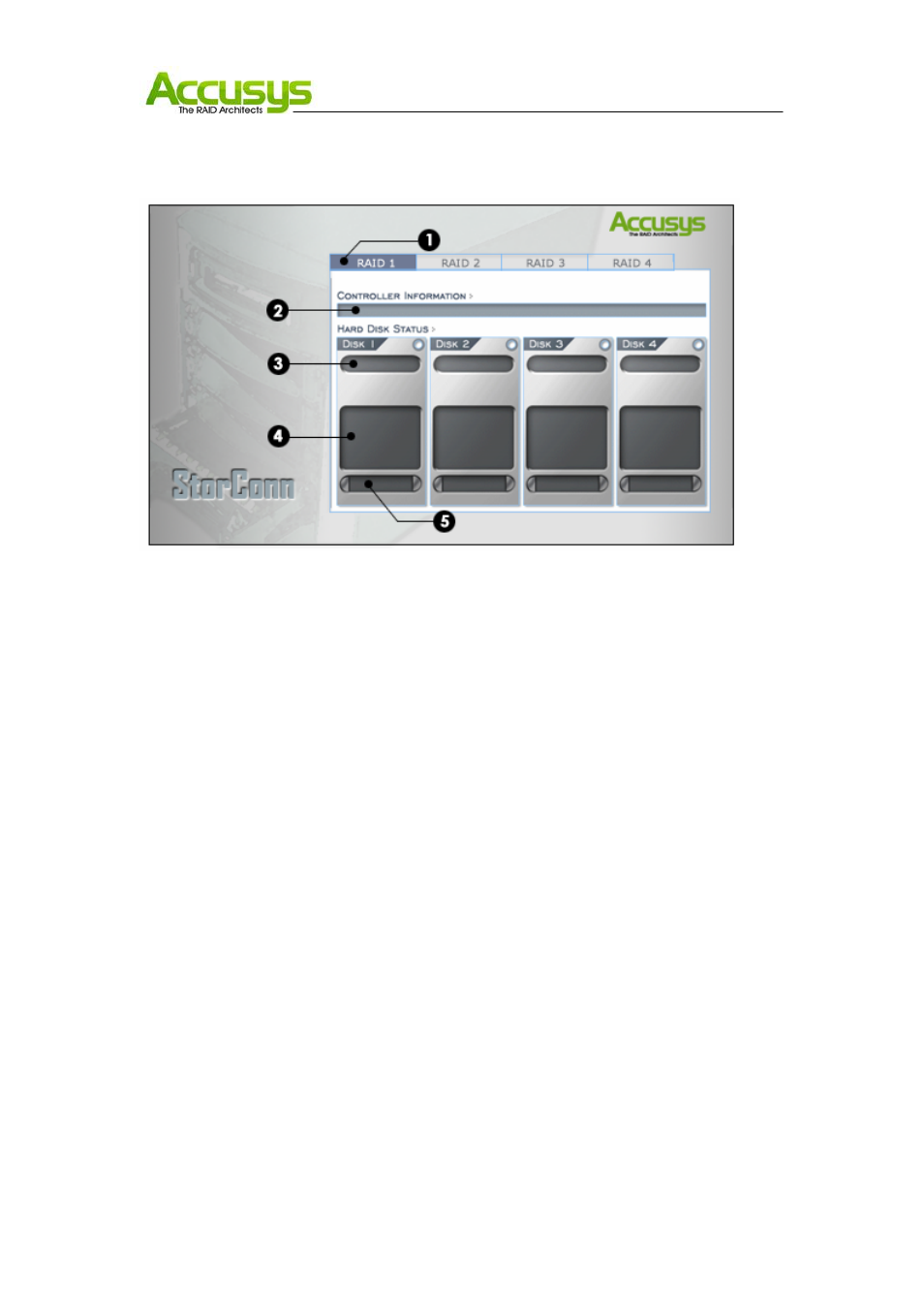

4.2.1. RAID status monitoring window

1. RAID controller tab: Allow customer to select which RAID to monitor.
2. Controller information: Lists model name, serial number and current RAID level.
3. Disk status: Allows you to monitor the status of each of the disk drives.
4. Disk information: Lists model name and capacity of each of the disk drives.
5. Re-build / initialize progress: Tracks the re-building or initialization process.
