4.3.4. Resistance measurement
CAUTION
Before attempting any resistance measurement, remove power from the
circuit under test and discharge all capacitors, if present.

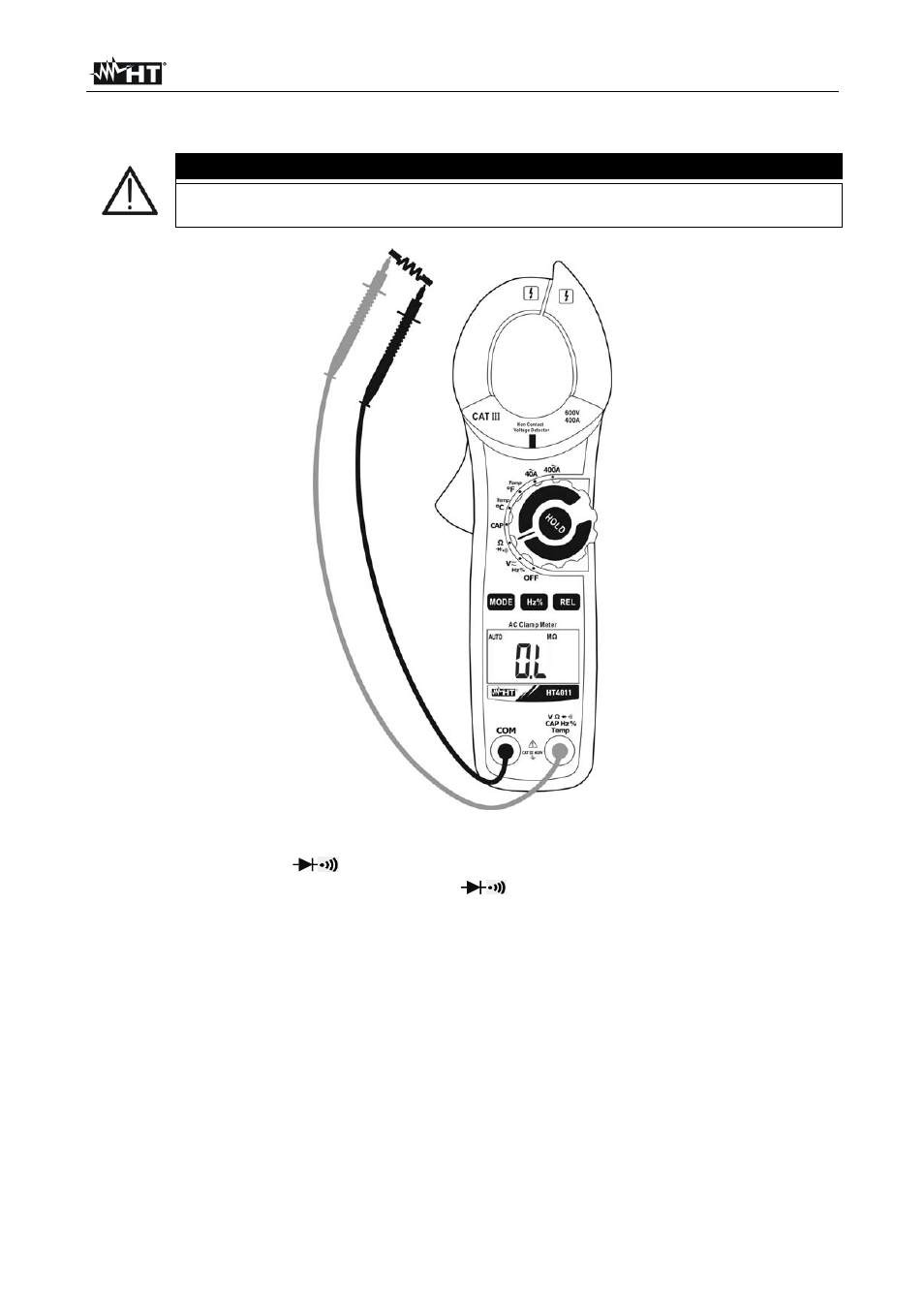

Fig. 5: Use of the clamp for Resistance measurement
1. Select the position

2. Insert the red cable into input terminal V

CAPHz%Temp and the black cable into
input terminal COM.
3. Position the test leads in the desired points of the circuit to be measured (Fig. 5). The
display shows the value of resistance.
4. If the symbol “O.L” is displayed, this indicates overload status.
5. To use the HOLD function, please refer to § 4.2.
