Remote Cal Kit
Remote Cal Kit Rev. 2.1 Page 1 of 2
1. Remove the sensor from the Transmitter Assembly and install the sensor on the Remote Condulet.
2.
Install and wire the Sensor to the Terminal Board in the Remote Condulet as described in Figure 3.
3.
Locate the most appropriate place(s), and Mount the Remote Condulet with Sensor and Transmitter
Assembly as shown in Figure 1.
4.
Route the wiring from the Remote Condulet Terminal Board to the Sensor Transmitter Assembly.
Reference the Sensor Manual and wire the Remote Sensor to the Transmitter Assembly.
16AWG wire. (wire count
dependent on sensor type.)
See Sensor Manual for
maximum distance.
Plug all unused 3
4
"NPT Ports
Tubing for Cal
Gas
Remote
condulet with
sensor
3
4
"NPT
Sensor
Transmitter
2 or 3 conductor
wiring to Control
Monitor
Elevation eye level

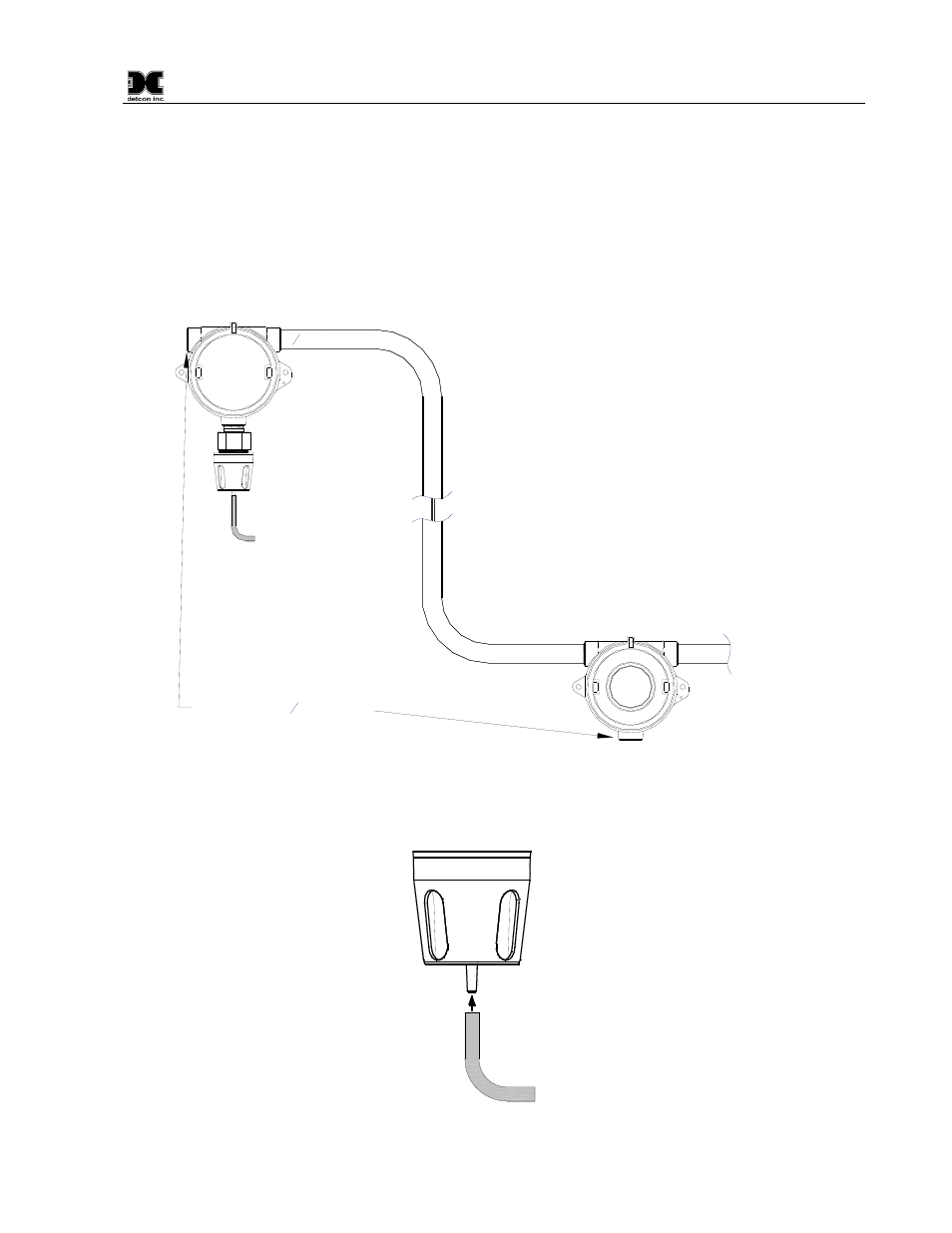

Figure 1 Remote Mounting
5.
Install the splashguard with integral calibration port on the sensor.
Splash Guard
Teflon Tubing
Calibration Port
Figure 2 Remote Calibration Tubing
