100 Duct Mount
100 Series Duct Mount Kit Rev. 0.1 Page 3 of 4
5 - Remove the target gas and apply a zero air standard for clearing.
6 - If necessary, repeat items 3-5 as indicated in the sensor instruction manual.
7 - Replace the cal port plug. Calibration is complete.

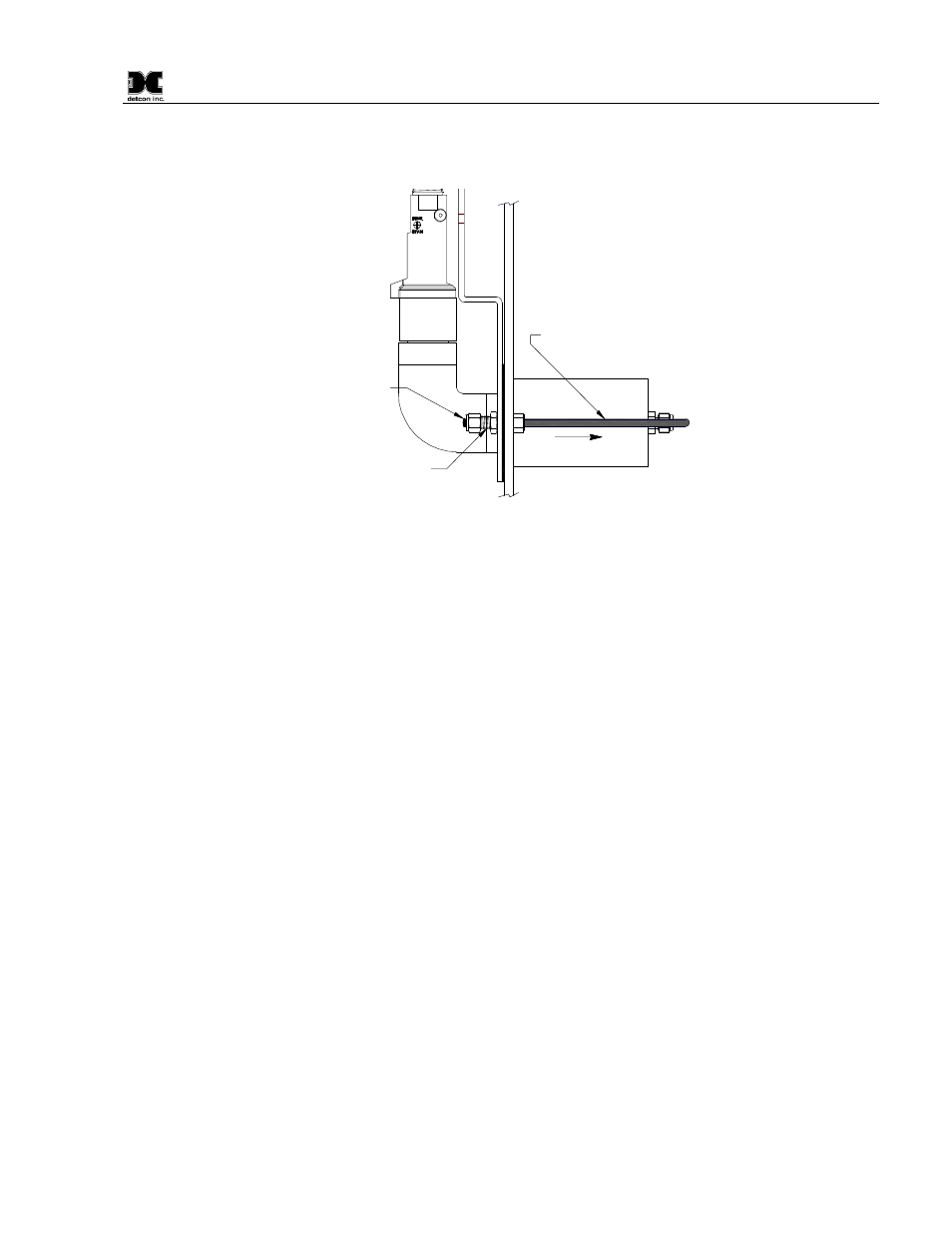

Duct side
wall
Calibration tubing
Calibration Port
Cal Port Plug
Gas Flow
Figure 4 Cal Port
4.0 Maintenance
To remove the sensor for replacement or maintenance, perform the following steps.
1 - Remove the two bolts that hold the sensor condulet to the duct mount plate.
2 - Pull the sensor out of the duct mount chamber and perform necessary maintenance.
3 - Reverse the procedure to replace the sensor. If necessary, lubricate the O-rings inside the duct mount
chamber so that the sensor rain shield will slide into the chamber easily.
5.0 Warranty
Detcon, Inc., as manufacturer, warrants each sensor duct mount kit for a period of one year under the
conditions described as follows: The warranty period begins on the date of shipment to the original purchaser
and ends one year thereafter. Should any part fail return the defective part to Detcon, Inc., for necessary
repairs or replacement.
