5
The alarm station vibratone® horn produces a noise level of a 100dB of sound by the electro-
mechanical vibration of a stainless steel diaphragm. The horn mechanism with diaphragm is
attached to the grill and has an effective broadcast range of 200 feet. The rugged water and dust
tight backbox is ideal for indoor and outdoor use.
The horn is capable of producing coded blasts or sustained tones, and is excellent for general
alarm, start/dismissal, coded paging and process control signaling in areas where their sound
output exceeds ambient noise levels.
The hazardous location warning horn is available in voltage ratings of 120VAC or 240VAC-
50/60Hz. and accommodates surface, flush or semi-flush mounting on walls, panels, or in
cabinets.
UL listed and CSA certified for Class I, Division 2, Groups A, B, C and D; Class II, Division 2,
Groups F, and G; and Class III.

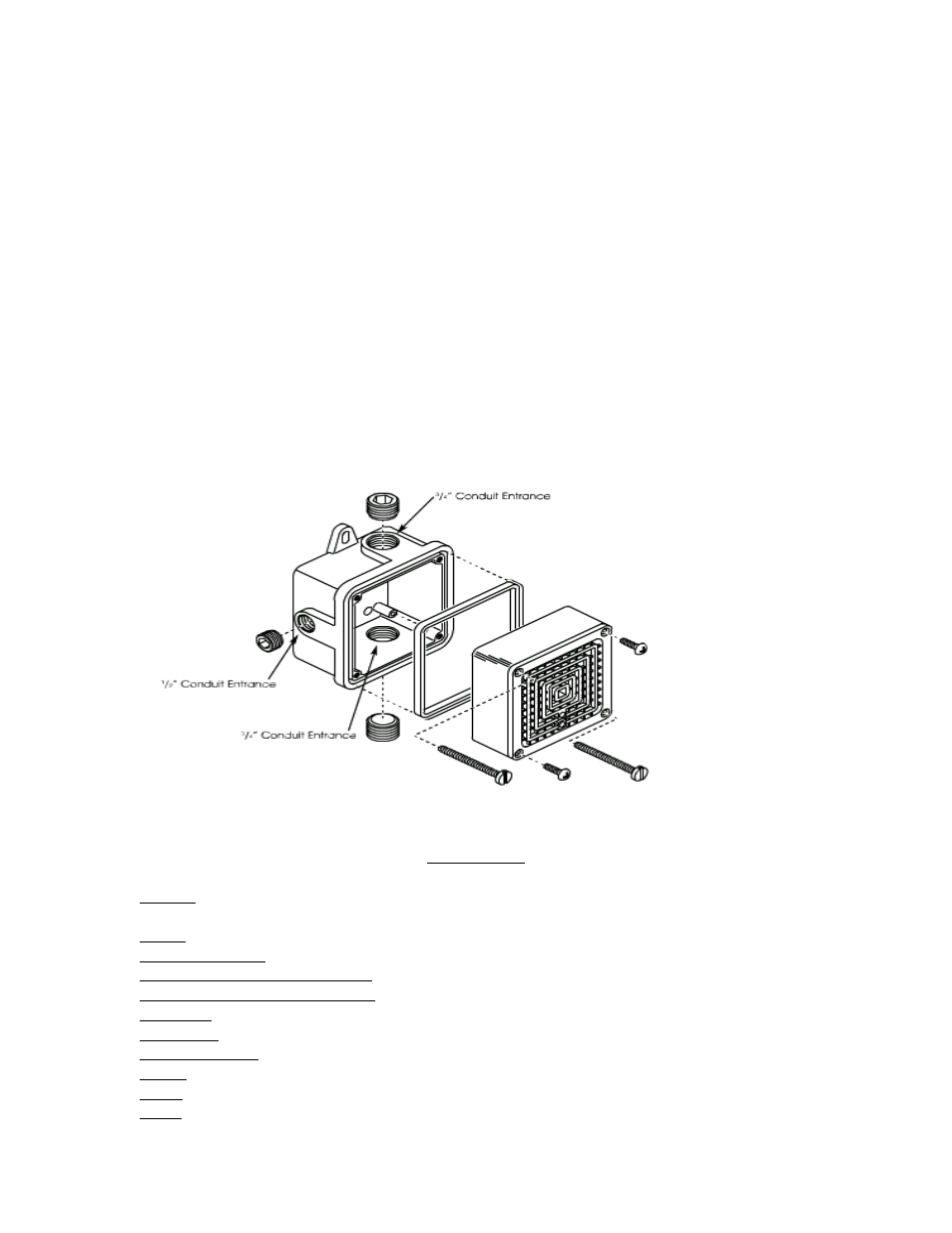

The horn uses a compact sized die-cast zinc housing with a corrosion resistant polyurethane
finish. The rugged outer grill resists vandalism without reducing sound output.
Specifications
Voltage 120VAC 50/60HZ, 240VAC 50/60HZ
(see specifications label for voltage rating)
Mount Surface / Panel
Operating Current 0.18 Amps at 120VAC, 0.09 Amps at 240VAC
Operating Temperature Minimum -65°F
Operating Temperature Maximum 150°F
dB Output 100dB @ 10feet , 110dB @ 1 meter
Duty Cycle Not rated for continuous duty
Enclosure Rating Type 4X
Height 5.3in
Width 5.3in
Depth 3.66in
