A1V1-DV2
Sebtinel A1V1 Instruction Manual Rev. 0.0 Page 3 of 5
2.0 Installation

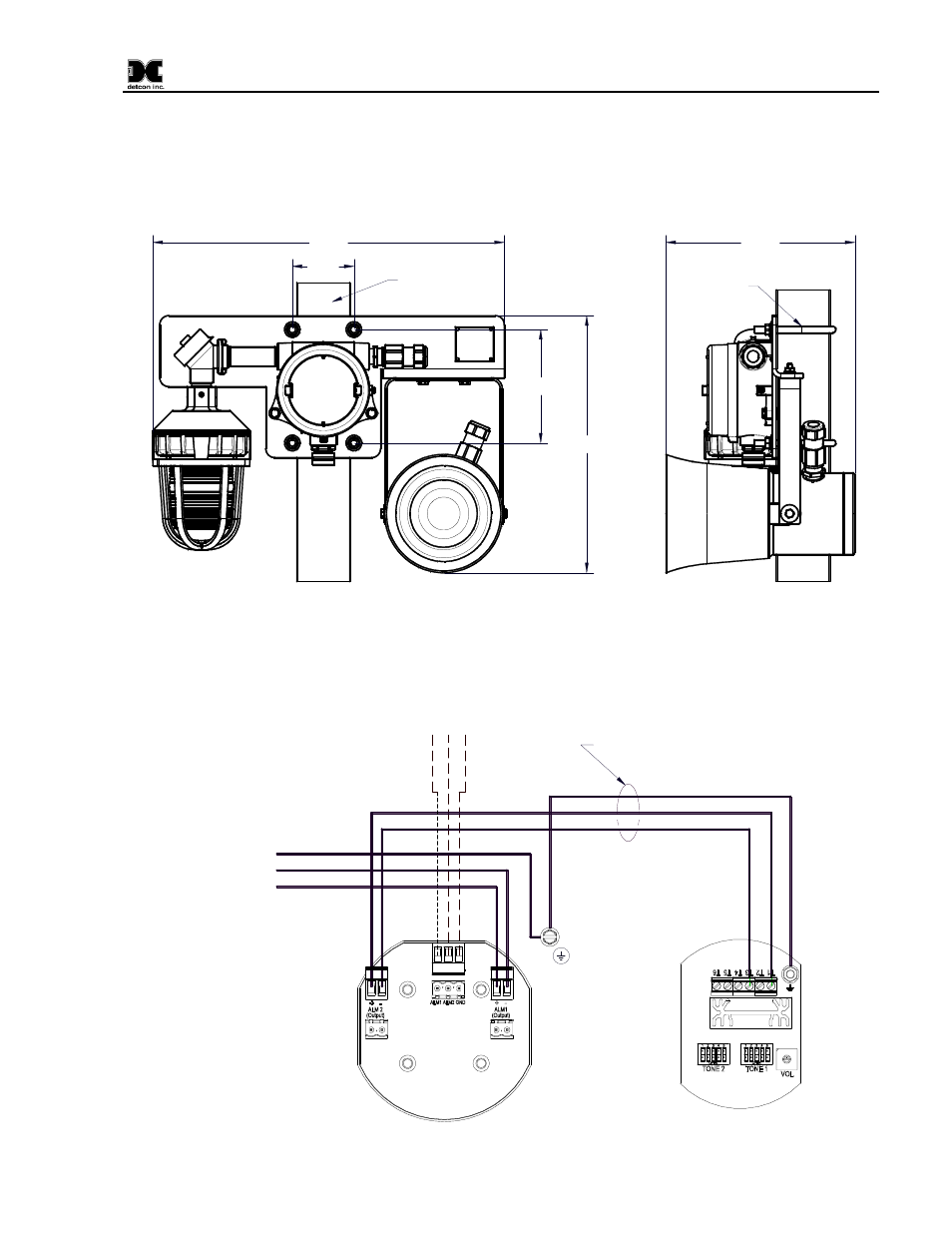

The A1V1-DV2 Alarm Station is made to be mounted on a 2” or 3” diameter pipe. Two 3” U-bolts with
hardware are provided for mounting. The location for mounting the wireless alarm station should be carefully
selected. Occasional access to the unit will be necessary for maintenance.
10.7"
14.5"
6.4"
3.5"
19.9"
2~3" Pipe
Mounting
Hardware
2~3" Pipe
Figure 5 Basic C1D2 Wireless Alarm Stations
Wiring to the unit will normally be provided by use of the Alarm Cable provided with the Sentinel Controller
that the unit will be connected to. Feed the cable through the Cable Gland at the bottom of the alarm assembly
and connect the White wire to ‘ALM1’, the Gray wire to ‘ALM2’ and the Black wire to ‘GND’ on the
connector provided.
Red
Black
Green/Yellow
B
la
c
k
G
ra
y
Horn PCA
W
h
it
e
Green/Yellow
Red
Black
Wiring to
Strobe
12-24V Alarm
Term Bd.
C1D1 Cable to Horn
Wiring from
Controller
Figure 6 Unit Wiring
