STEP 4
Assemble Cabinet Front

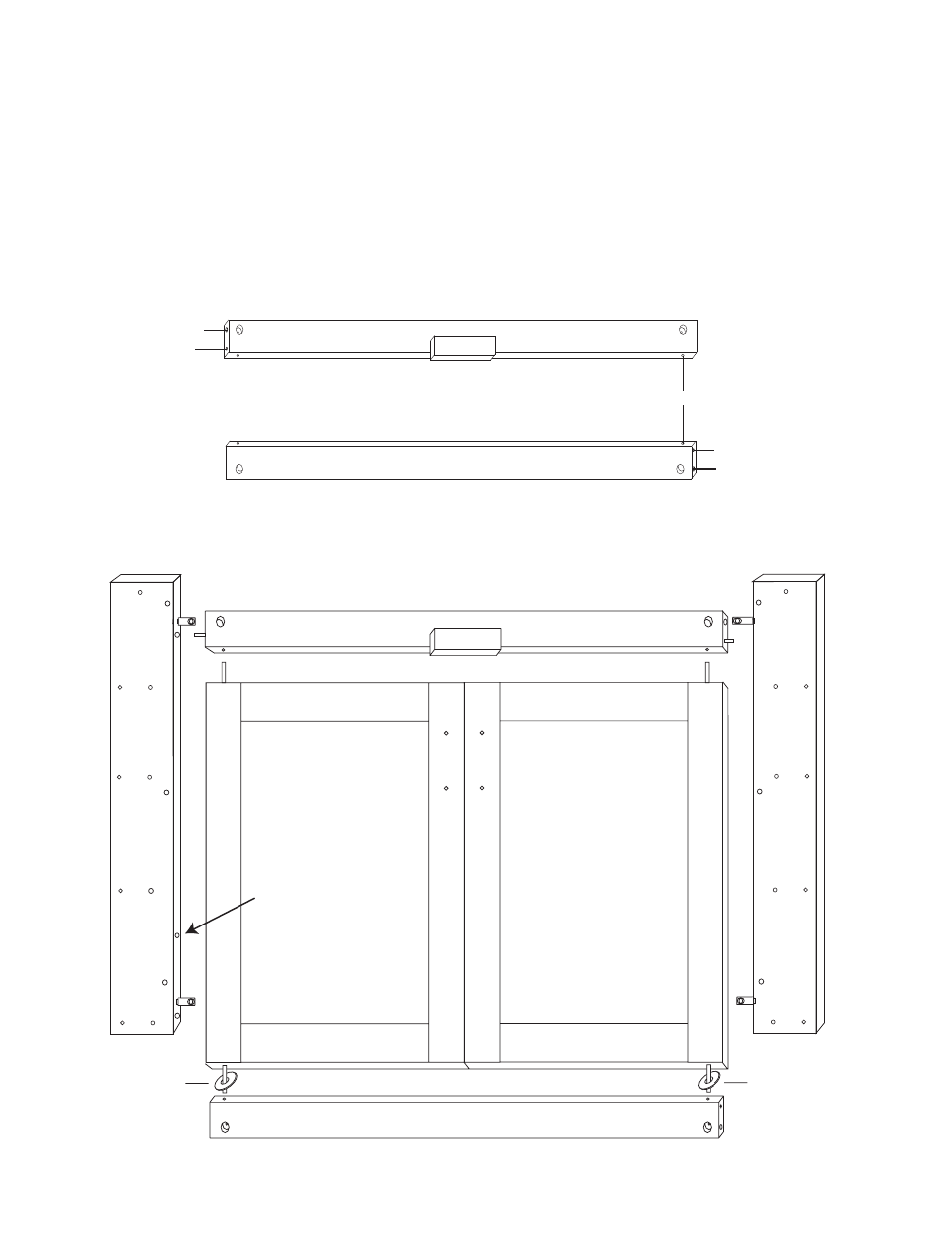

A. Take the 2 Front Braces (Illustration 4) and tap/insert one 3/4” pin into each end of each brace. Take
the 2 doors and tap/insert one 1 1/2” pin into each end of each door. With pins in place lay out Braces,
Doors and Front Legs as illustrated in Illustration 4A.
B. Place 1 washer on each bottom door pin. Push door pins into the Bottom and Top Front Braces until
seated. Next, attach this door assembly to the Left Back Leg with Bastions. Then attach the Right Back
Leg in the same manner (as shown in Step 2). Illustration 4B shows an assembled cabinet front.
Illustration 3B
Washer Washer
Illustration 3A
This Hole is Not Used
Door Pin Holes
(Inside View)
Post Hole
Pin Hole Magnet Block
Top Front Brace
Bottom Front Brace
Pin Hole
Post Hole
Illustration 3
Door Pin Holes
Illustration 4
Illustration 4A
