STEP 1
Assemble Drawer
A. Attach the drawer back to the drawer sides with four 1 1/4” #8 screws. There are left and right sides.
Make sure the slots that run the length of the sides are aligned with the slot in the drawer back to accept
the drawer bottom.
B. Slide in drawer bottom, best side up to inside of drawer.
C. Take 2 bastion posts, align the threaded end of the posts with the post holes located near the ends
of the inside of the drawer front. Tighten posts down until the solid shaft of the post hits the wood. Back
post out about 1/2 turn until the hole/screwdriver slot in the end of the post is parallel and in direct line
with the long edges of the Drawer Front.
D. Insert the barrel nuts into the nut access holes on the inside of the drawer side with the threaded
end of the nut facing out. Take the drawer front and carefully insert the posts into the ends of the brace
sides, through the sides of the nut until seated. Push nut snug up against the wood in the nut access
hole toward the inside drawer front. Hole should be slightly off-center toward the drawer front. Insert the
set screw and tighten down with a Phillips screwdriver. See illustration. The ends of the sides should be
tight against the inside drawer front.
E. Attach the drawer handle with the 1” Truss Head Machine Screws.
F. Attach the drawer glides (left and right) to the Drawer Sides using two 5/8” #5 screws per side.
Wheels go toward drawer back and are up.

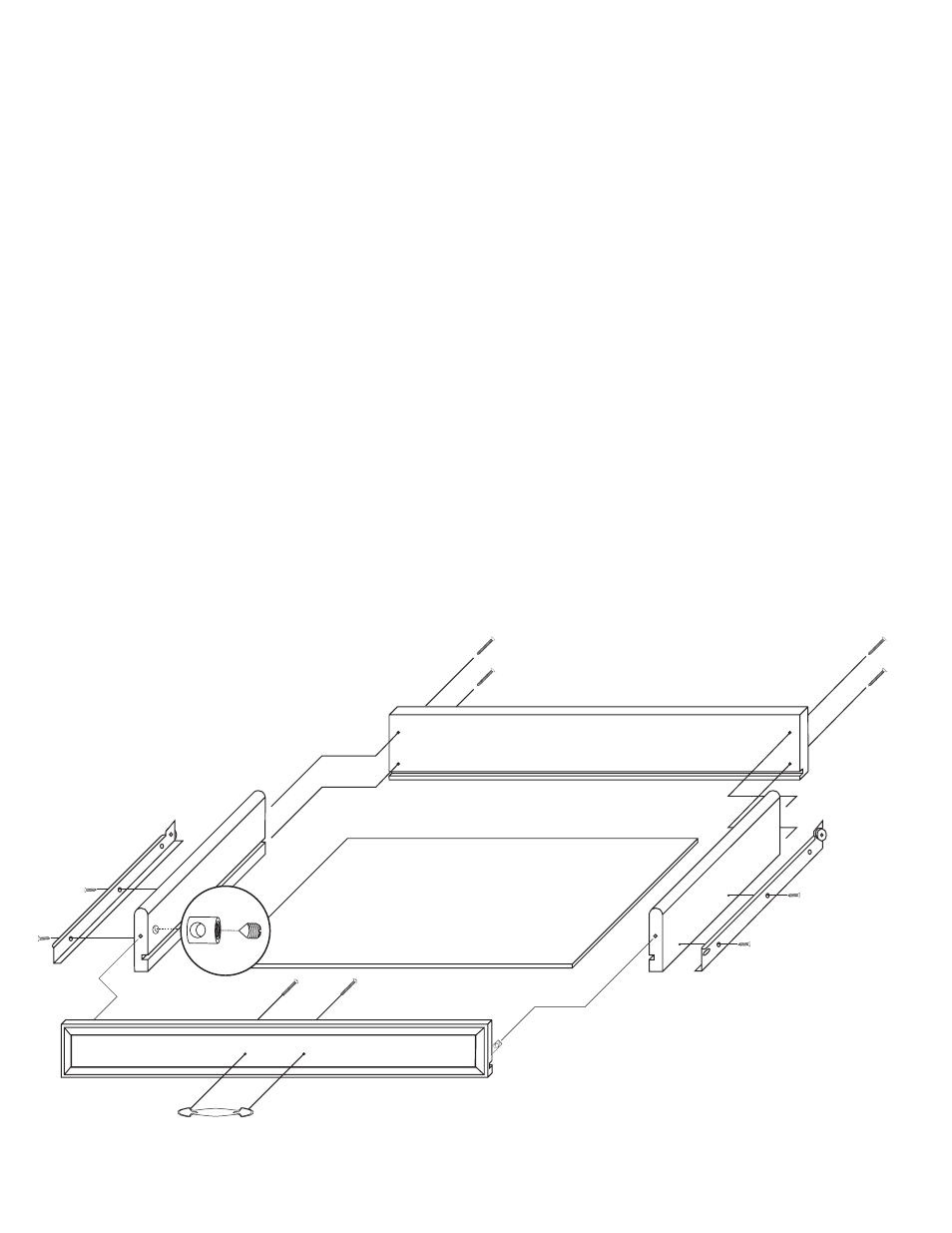

Illustration 1
