Catskill Craftsmen 64026 - Manual (Page 14)

C. Upright the unit and tap eight 1” 3/16 diameter steel pins into each leg. Place the side shelves on the
pins. Groove sin the bottom of the shelves fit over the pins.
D. Open the cabinet doors and tap two 1” pins into the bottom holes of each side panel. Decide where
you want the middle shelf (it has 2 adjustments to choose from) and tap two pins into each side panel
making sure the pins are aligned side to side. Place the bottom shelf (this shelf has no edge banding)
on the back set of pins and with front of shelf slightly elevated, close doors and the shelf will drop into
place. Take the middle shelf, edge banding out, and place the shelf on the pins. See Illustration 6B for
pin locations.

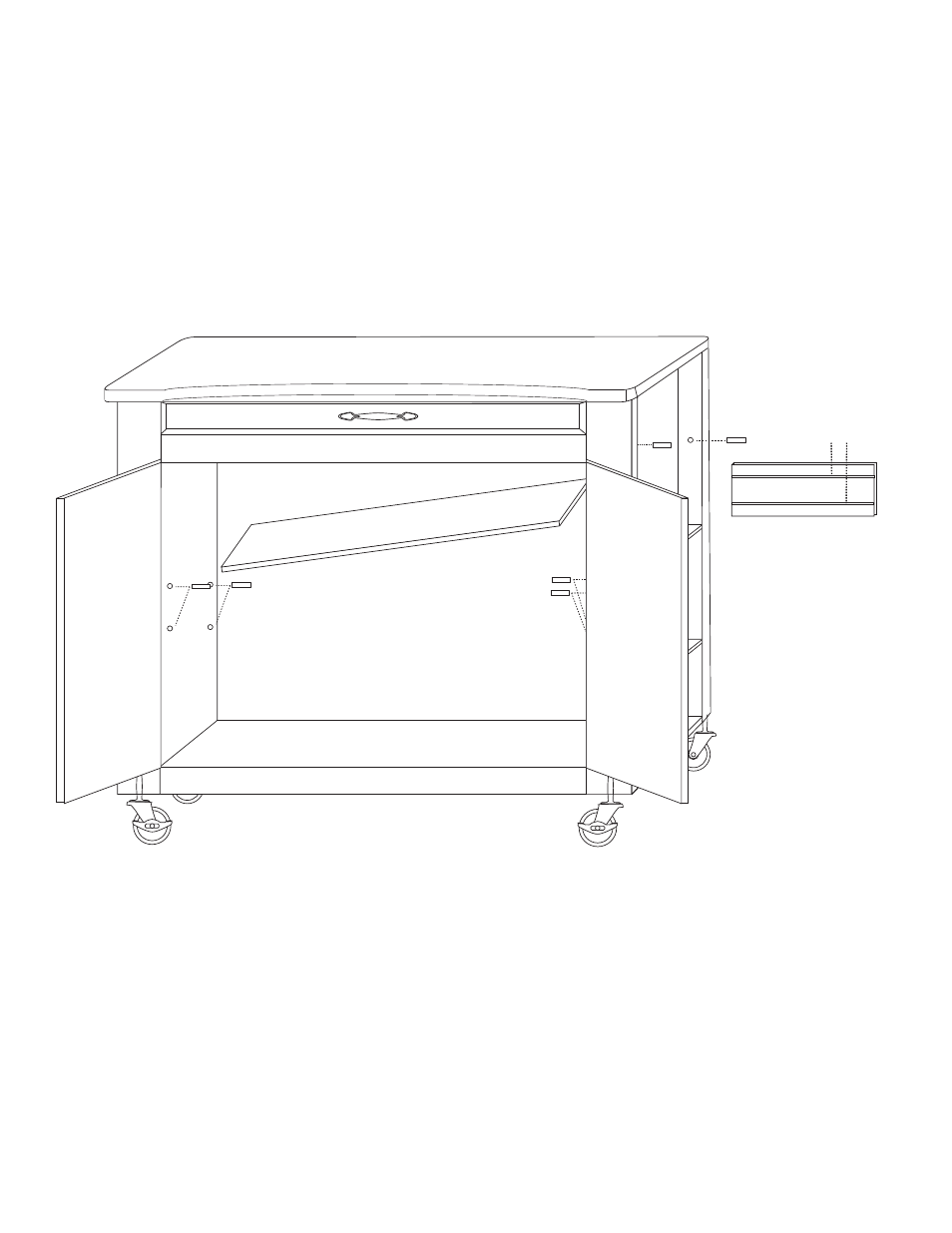

Illustration 6B
Insert 1” pins at desired shelf height
tilt shelf to insert.
Edge banding out.
Groove in side
shelf sits on top of pins
Underside view of side shelf.
