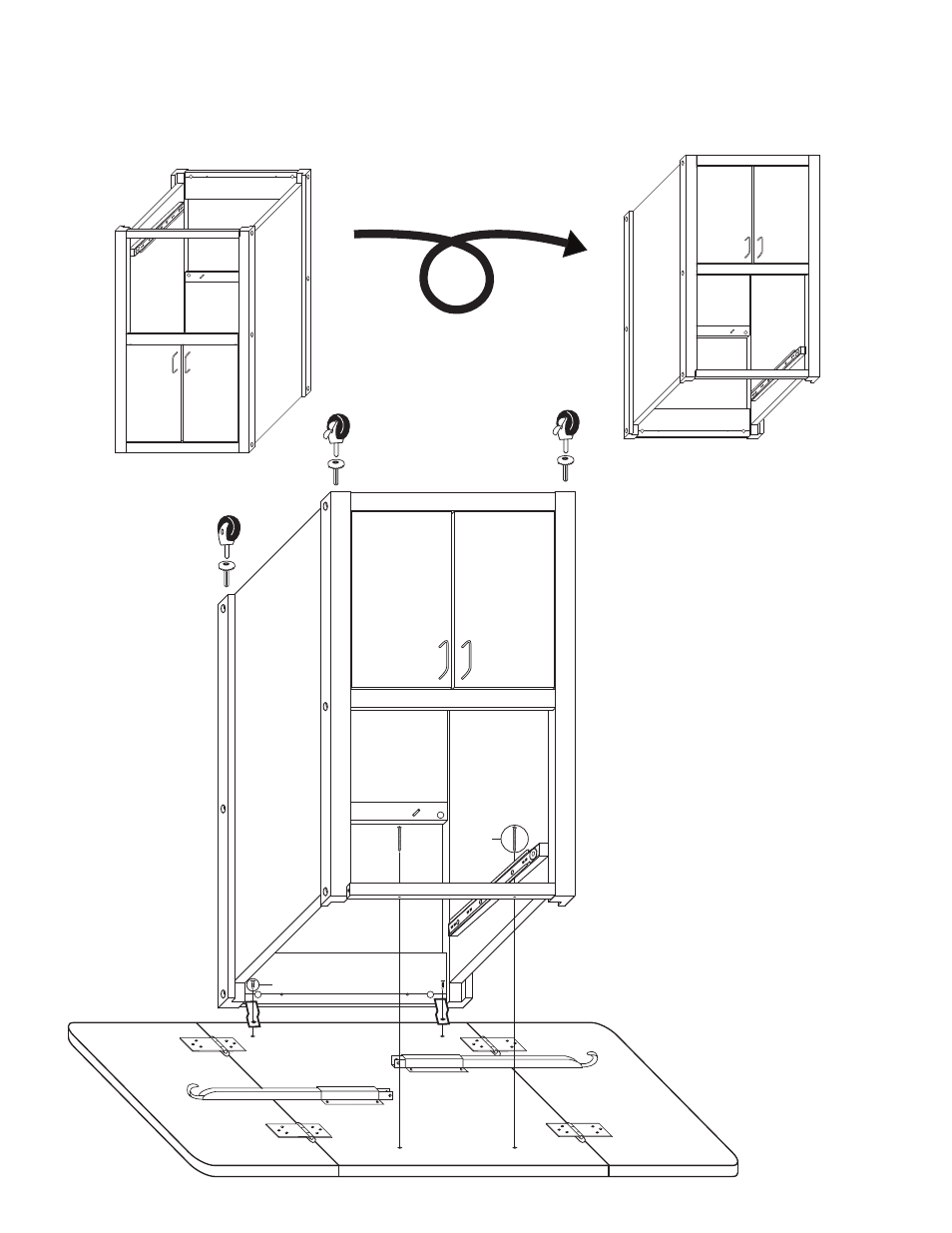

STEP 9
Main Assembly:
SP
SP
Invert the Cart Base and position
onto the Cart top. Fit the “Z”
brackets into the slot across the top
back brace. Align the holes in the
top front brace with the pilot holes
at the front of the cart top. Attach
the top front brace to the cart top
with 1-3/4” #8 Wood Screws.
Tighten the “Z” brackets to
complete top attachment with 5/8”
#8 screw.
NOTE: The holes for the “Z”
brackets are further apart than
those for the Top Back Brace
SP
5/8” #8
1 3/4” #8
