STEP 3
Tools needed: Hammer
Hardware needed: (4) 3/4” Steel pins (shortest)
Parts needed: Frame from step 2,
and 2 swing legs (identical)
Insert/Tap (2) 3/4” steel pins into the short
vertical brace of each factory assembled
swing leg as in illustration 3.
DO NOT OVERDRIVE PINS! When seated,
pins should have 3/8” sticking out
of the brace ends.
NOTE: If pins are loose in the bottom of the swing legs, simply insert them in the top edge
of the bottom support brace in step 4

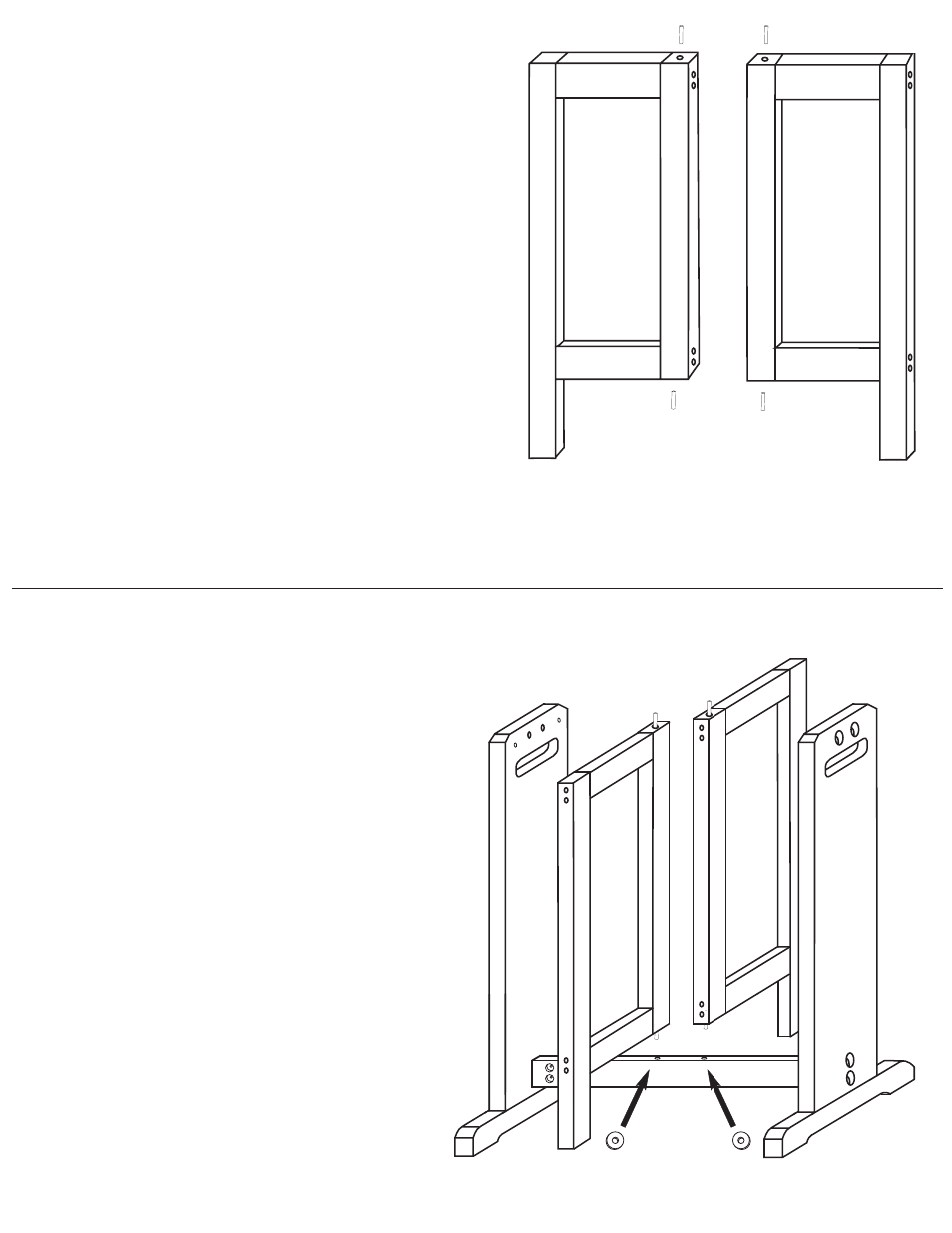

Illustration 3
STEP 4
Tools needed: None
Hardware needed: (2) washers
Parts needed: Basic Frame, Swing legs
Place one washer over each of the
bottom pins in the swing legs and insert
pins into the holes in the top edge of
the bottom support brace as shown
in illustration 4
Illustration 4
Washers
