Catskill Craftsmen 1580 - Manual (Page 4)

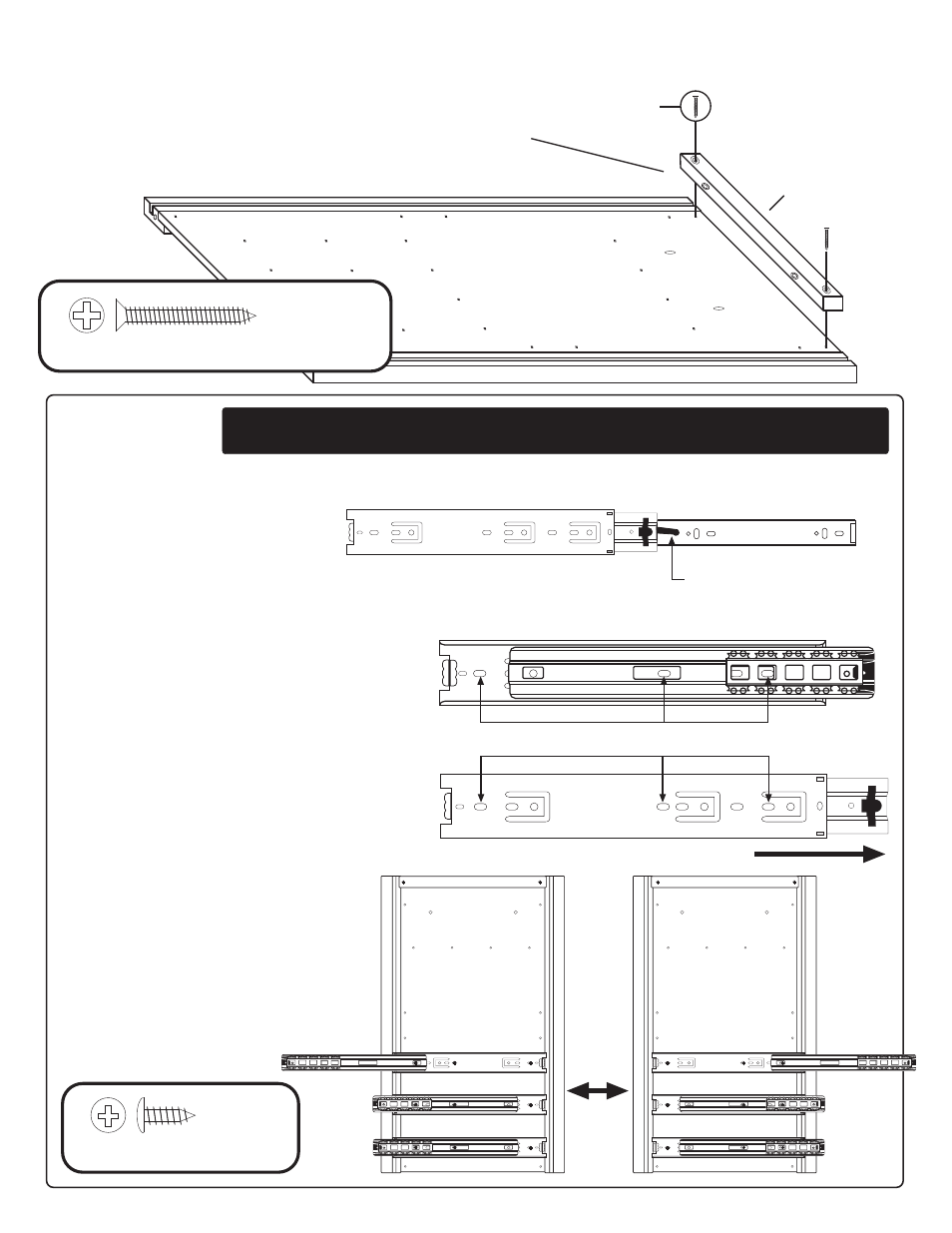

STEP 1
2. Next, identify the holes to be used for
attaching each glide to the side panel.
IMPORTANT it is at this point that you
determine front, back left and right of the
assembled cart. Note that the glide must
extend out towards the front of the cart,
therefore, select a right side panel, and
make sure all glides are attached to the
cart so they extend in the same direction.
Attach glides using 3/8” #8 pan head
screws. But do not tighten down the
screws. You must attach the back
panel in the next step, then shift the
glides all the way back so they are
flush with the back panel before
tightening into place. This will insure
that they are all even.
Repeat for the left side panel making
sure that the glides extend in the correct
direction. When properly attached, the
side panels should appear to be mirror
images of each other.
1. Remove the wine rack shelf section
of the glide by pressing the black lever
and sliding the steel inner glide section
all the way out of the glide assembly.
Set this inner section aside as it will be
used later on the Wine Rack Shelf.
Press this lever then slide the
inner glide section out of the
glide assembly.
FRONT OF CART
Face of
Glide
Backside
of Glide
Use these three (3) holes to attach the glide to the side panel.
Attach TableTop Support Stick to the side Panel using
1-1/4” Phillips flat head #8 screws. Make sure the counter
sunk holes face out and down on the support stick when
assembling. Repeat for other side panel.
Properly attached
wine rack glides.
1-1/4” #8 Screw
P2
T2
Repeat to other Side Panel
4 Used
in this step
1-1/4” Phillips Flat Head #8 Screw
18 Used
in this step
3/8” Pan Head #6 Screw
This
side
will
att
ach
to
back
panel in the next step.
STEP 2 -
IMPORTANT - Please read these instructions carefully!
