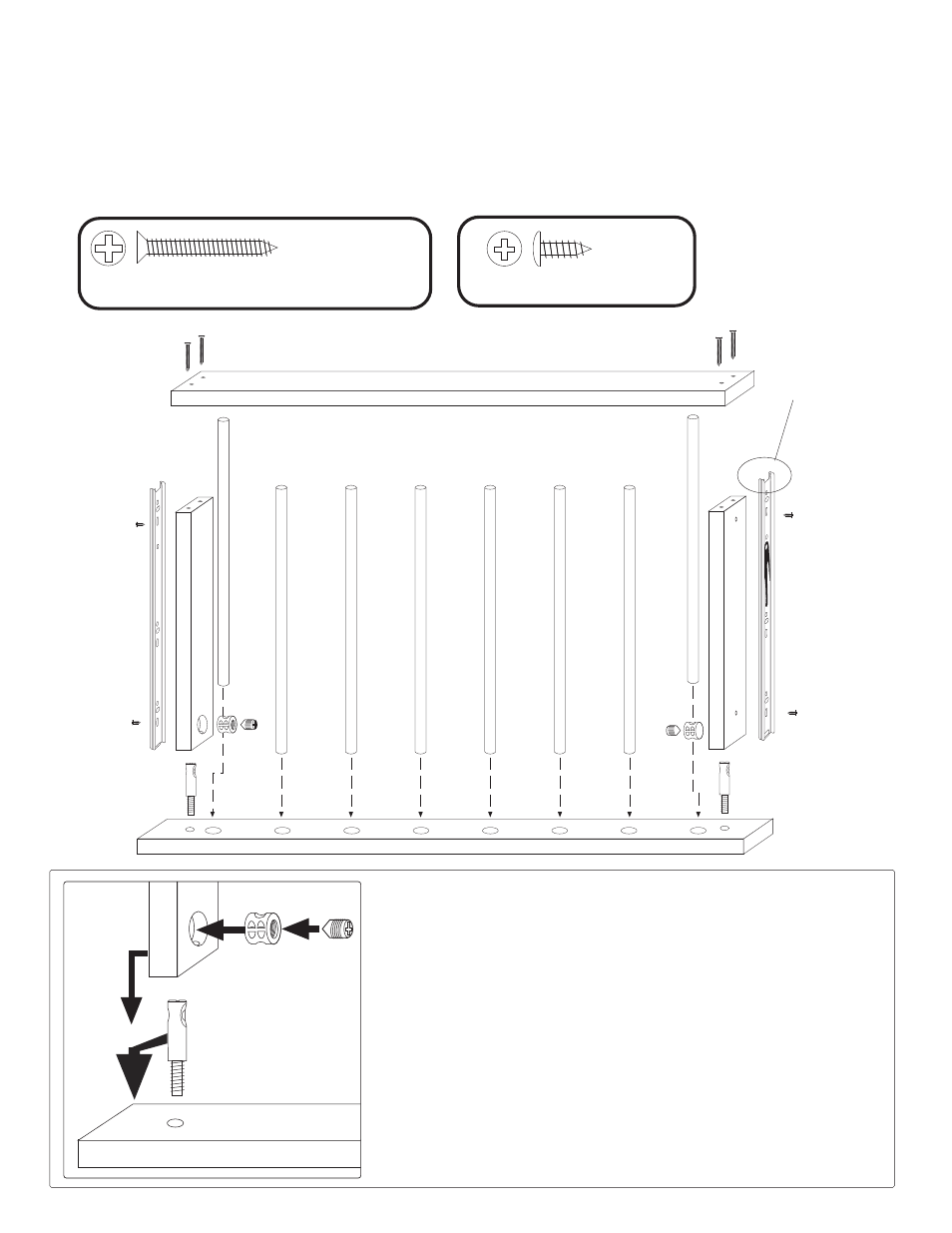

STEP 11
A. Attach rack front to the rack sides using bastions. (see bastion assembly
instructions below for added information.
B. Insert wine bottle support dowels into rack front and back.
C. Secure rack back to sides using 1-1/4” #8 screws (4 used in this step).
D. Attach inner rack glide to rack sides using 3/8” #6 pan head screws.
Rack glide should be flush with the rack front.
1
2
3
4
1. Screw Bastion post into wine rack front. Screw until all
threads are hidden, then back out a half turn (or the depth of
a finger nail) such that the hole in the post will face left to
right.
2. Place the barrel nut into the side brace hole.
3. Slide the side brace onto the post such that the post also
slides into the barrel nut.
4. Screw the set screw into place, tightening such that the
side brace and wine rack front pull together tightly.
BASTION ASSEMBLY INSTRUCTIONS
1-1/4” Phillips Flat Head #8 Screw
4 Used in this step
4 Used
in this step
3/8” Pan Head #6 Screw
Open end of
glide faces
the back
