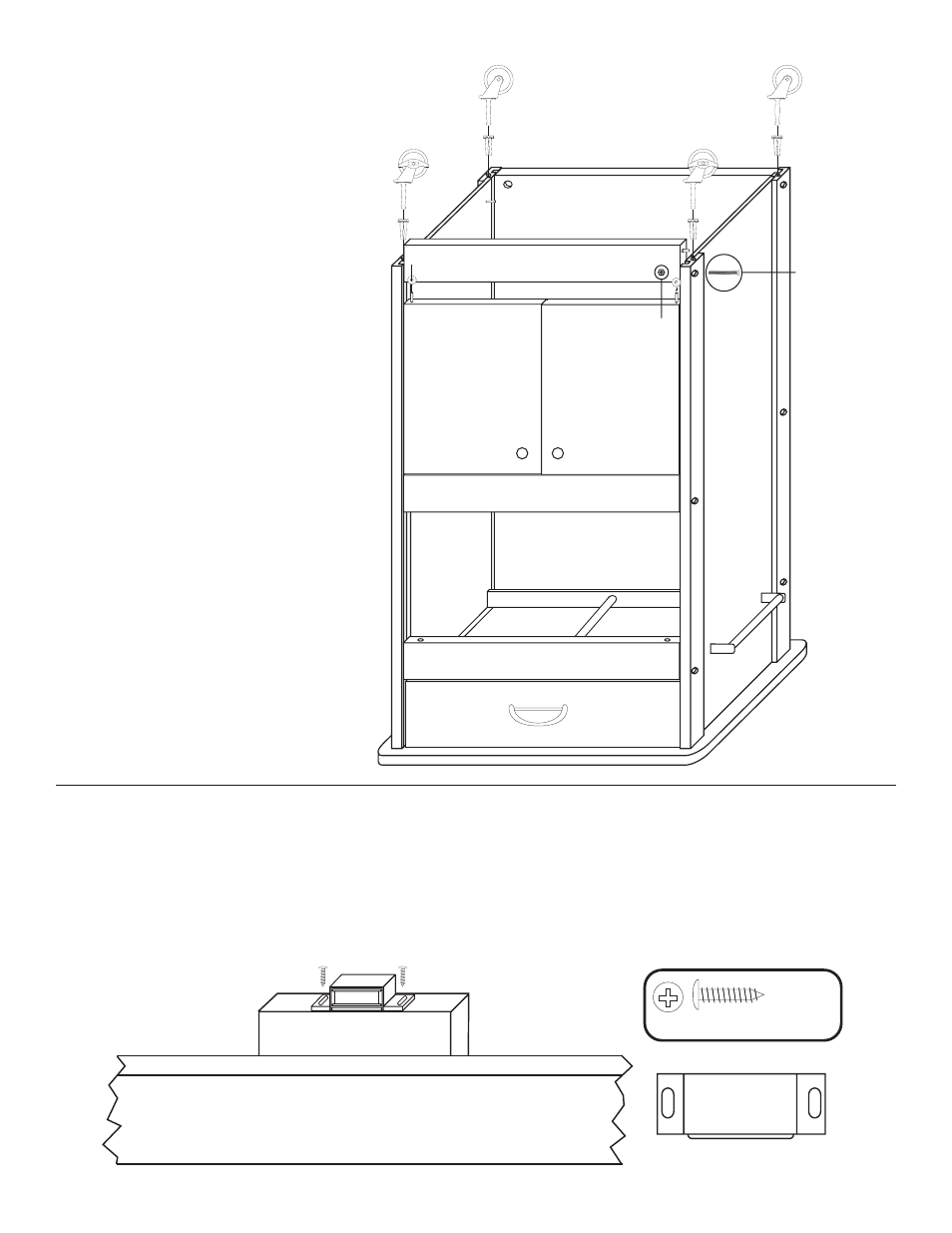

STEP 10

Install Door Magnet
A. With unit still inverted, open both doors. Stick magnet on magnet plate on Left Door. Close door

and magnet should be positioned over pine block on Middle Front Brace. Hold magnet in place on

block with thumb pressure and open door - magnet will be in proper position. Secure magnet to block

with round head magnet screws.

Magnet (1)

5/8” Pan Head Screw (2)

2 Used

in this step

STEP 9

Install Doors/Front Bottom Brace/

Wheels
A. Place a Washer on bottom pins

of doors. Seat bottom front brace on

pins and secure brace with

1 3/4 in. Machine Screws/Nuts.
B. Tap in Castor Sleeves until teeth

bite wood. DO NOT POUND FLAT.

Locking wheels go in the front.

Front Bottom Brace

Right Door

Left Door

1 3/4” Machine

Screws

Nut

washer
