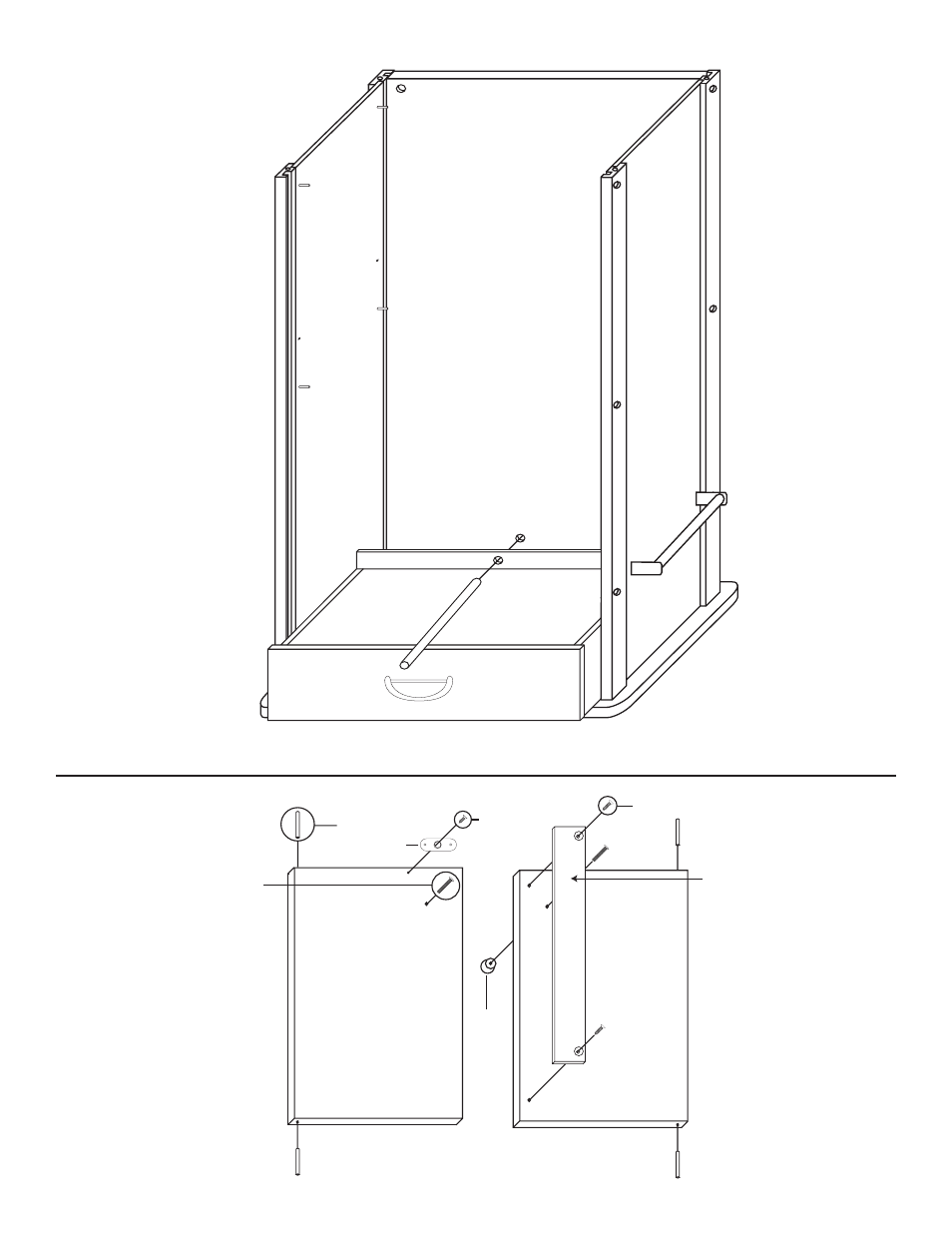

Place drawer in position upside down

Back Panel

Drawer Dowel

Drawer Back

STEP 5

Insert Drawer Dowel

through Drawer Back into

hole in Back Panel.

STEP 6

Door Assembly

1 1/2” Pin

1/2” Flat

Head #4

Screw

1 1/4” Machine Screw

5/8” #8 Screw

Magnet Plate

Door

Knob

Door Assembly

Right Door

Left Door

Door Spacer

(countersink up)

Machine

Screw

Note: Door Spacer is

flush with bottom of door.

Leaving space at the top

for magnet clearance.
