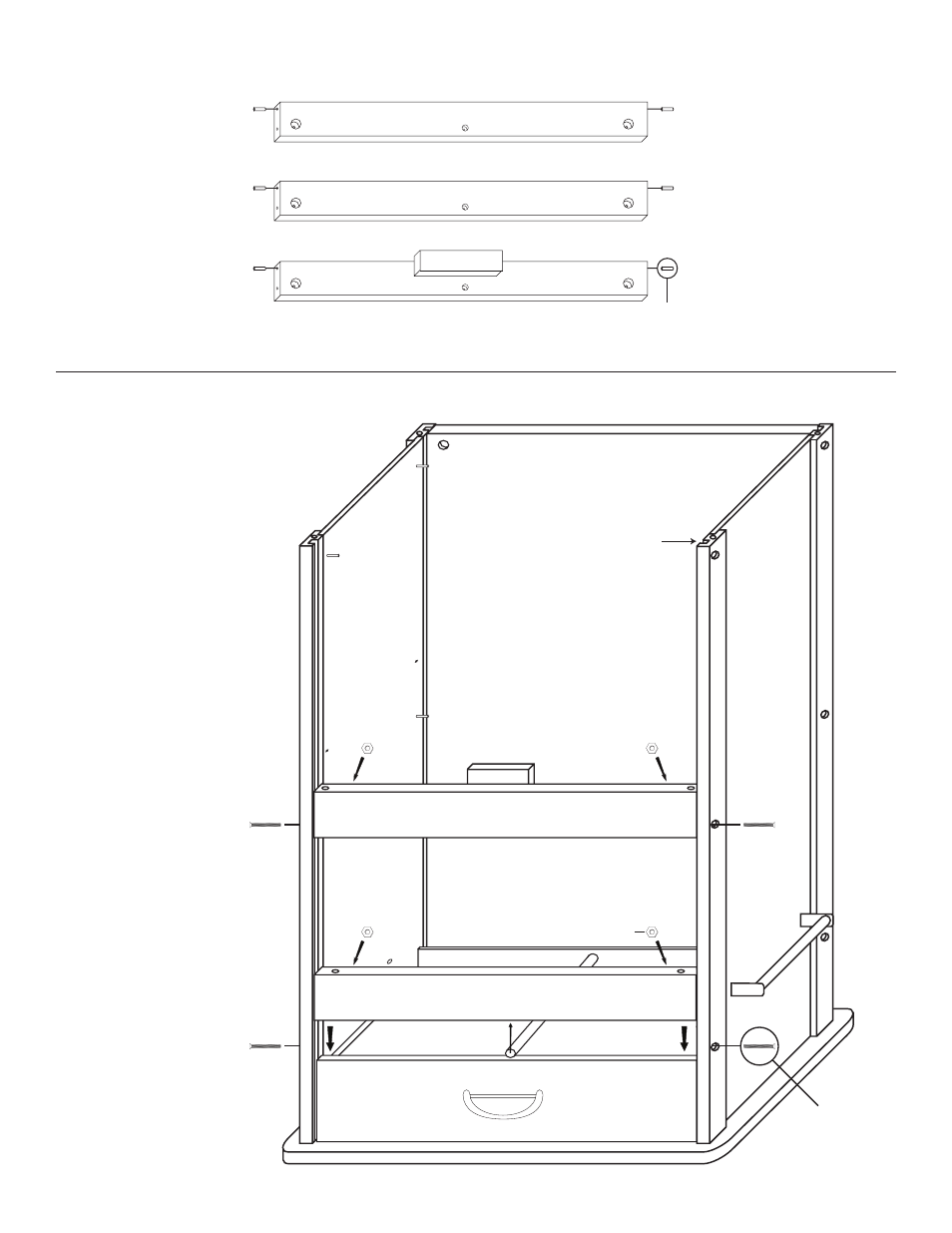

STEP 7
Brace Preparation
3/4” Pin
Install 3/4” pins in brace ends
Bottom Front Brace
Top Front Brace
Middle Front Brace
Note: O.K. if pins
are loose!
STEP 8
Install Top & Middle Front Braces
A. Insert end of drawer dowel into
hole on inside of Top Front Brace.
B. Insert the pins in the ends
of the brace into the leg slots
and slide Braces into
position. Secure
with 1 3/4” Machine
Screws and Nuts.
1 3/4” Machine Screw
Nut
Middle Front Brace
Top Front Brace
Leg Slot
