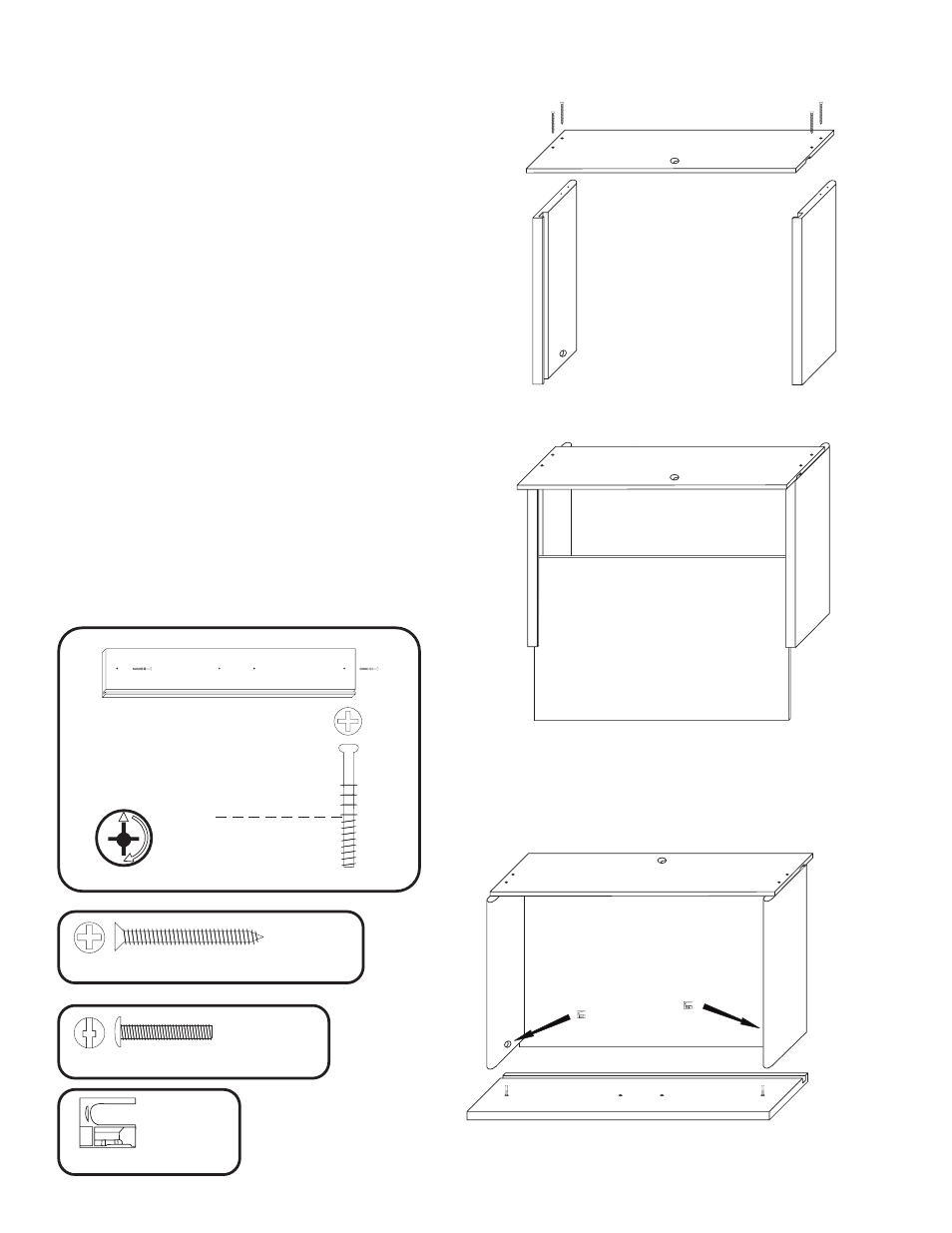

ILLUSTRATION 4A
Below line in wood
Cam Posts (2)
ILLUSTRATION 4B
ILLUSTRATION 4D
1 1/4” Phillips Flat Head #8 Screw (14)
4 used
in this step
Cam (2)
2 used
in this step
1/2” Truss Head Machine Screw (6)
2 used
in this step
ILLUSTRATION 4C
Right Drawer Side
Left
Drawer
Side
Drawer Back
1 1/4 #8 Screws
STEP 4
A. Attach the drawer back to the drawer sides with
four 1 1/4” #8 screws. Make sure parts are aligned
as in illustration 4A.
B. Insert drawer bottom into the slots in the drawer
sides, best side to inside of drawer. Slide down
until seated in the slot in the drawer back. See
illustration 4B.
C. Screw the cam posts into the two outside holes
on the inside face of the drawer front until seated.
Only 3/8” of this post goes into the wood, leaving
the 4 larger guide rings/head exposed.
See illustration 4C.
D. Insert the posts into holes in the drawer sides
until seated against the front end of the drawer
sides. Insert cams so that slot in the cam fits over
the post and turn with Phillips screwdriver until
seated. Don’t over-torque! See illustration 4D.
E. Attach drawer handle with the two handle screws
(no illustration).
Note: The arrow on the end of the Cam points
to the Post. The curved arrow shows tightening
direction.
