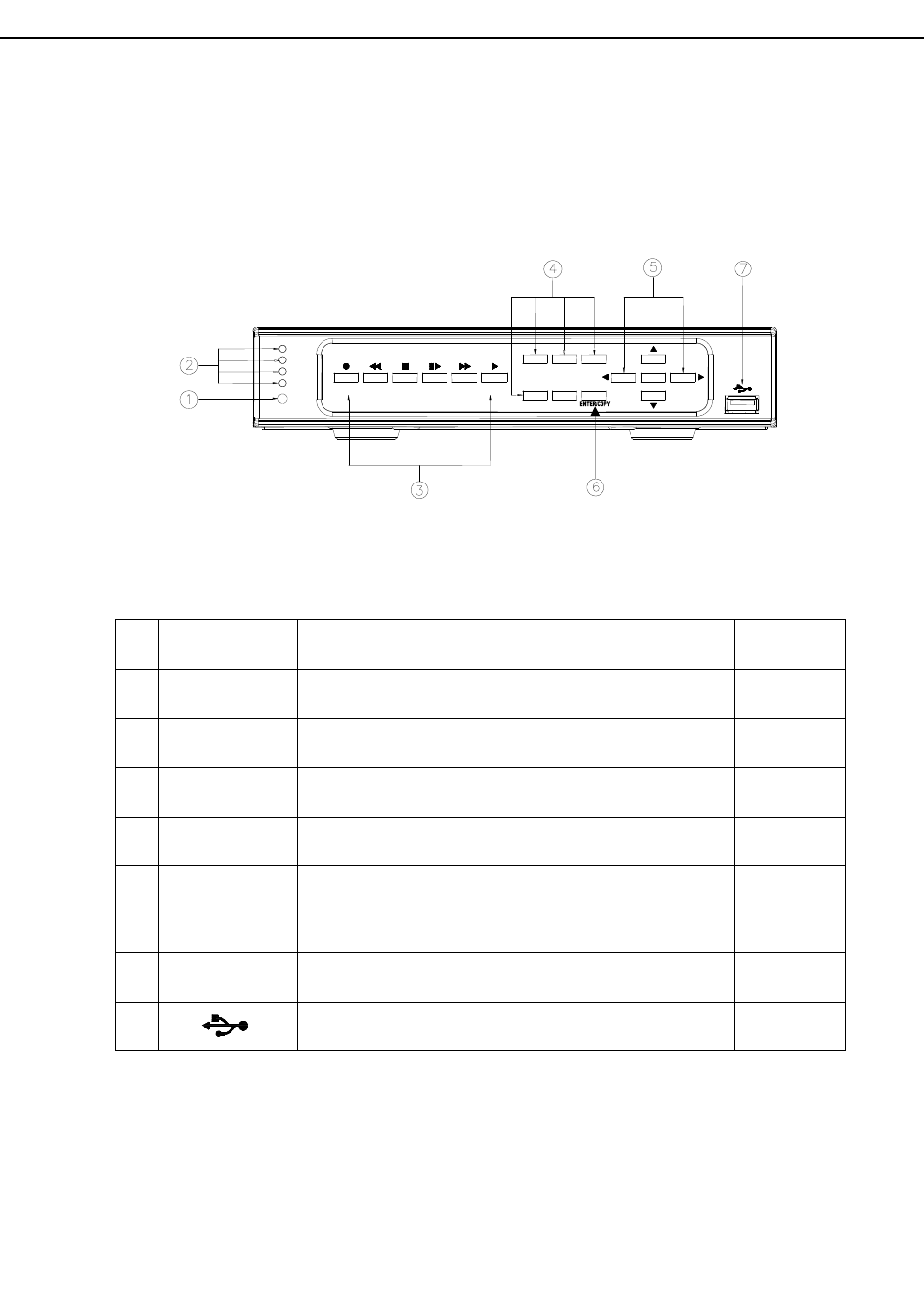

2 HARDWARE OVERVIEW
2.1 FRONT PANEL
DVR OPERATION
NO. LABEL OPERATION PTZ
1 ○ ○ ○ ○ IR Sensor For Remote Control.
2 LED REC Led Indicator
3
CONTROL
PANEL
Record, Playback And Control Button.
4 1-4 & Quad
Press The Button To Display No.1~No.4 Full Screen
and Quad Screen
5
▲▼◄► &
MENU
Button Of Controller.
Button Of Menu Screen
UP,
DOWN,
LEFT &
RIGHT
6 ENTER © ENTER and BACKUP Button
7 USB Connector.
HDD
PLAY
REC
POWER
MENU
QUAD
4 3
2 1
PLAY
SEARCH
F.FWD PAUSE STOP
SEARCH
REW REC
