General
 Logging Interval
It means the interval time between 2 stored data.
 Logging Duration
Means the total time of the whole logging process will last. The default value will never
stop the logging process, users can decide when to stop it according to requirements.
Please set time before logging.
 Communication
The default value of baud rate of serial port is 9600. No need to change it in general.
Format
 Chart Style
To set the display mode of the Chart.
 Date Format
To set the display mode of the Date.

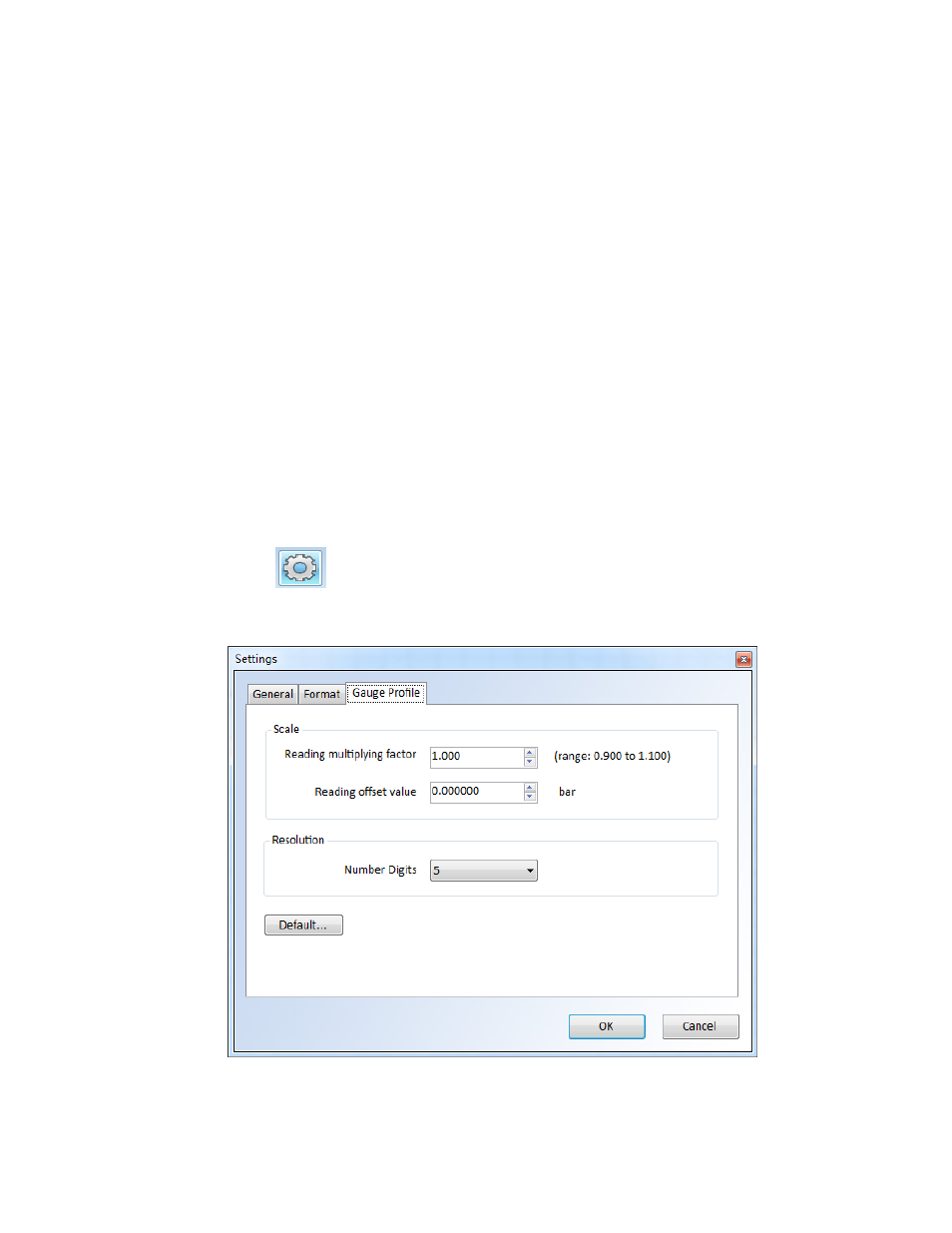

Click the button on UUT frame to enter the below window. There is another tab
(Gauge Profile) in the Settings.
Figure 2-4
