Chapter Two: Functions
Start the software by double-clicking above icon, the main interface will be shown as below.

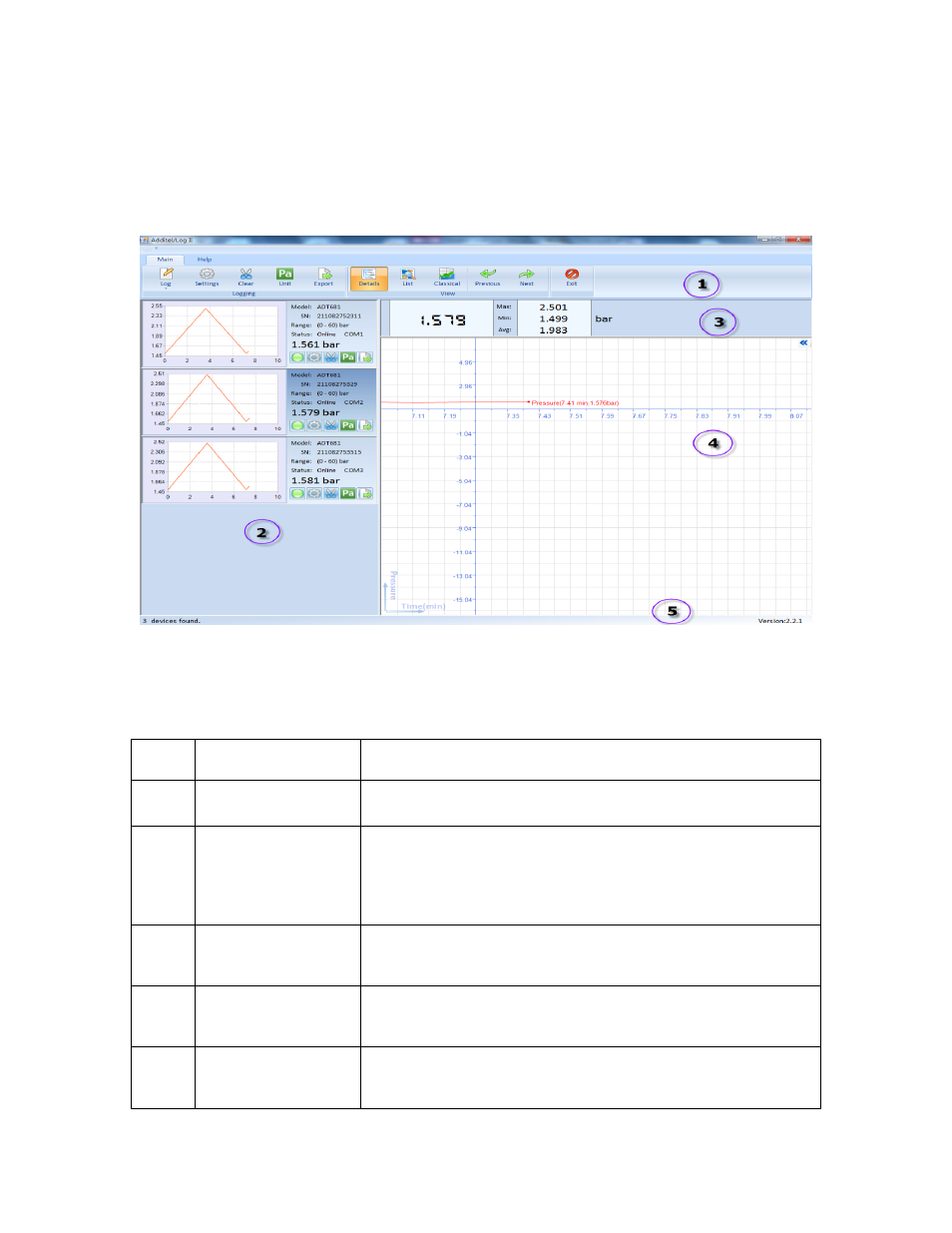

Figure 2-1
The main interface consists of 5 parts
:
No.
Name
Description
1
Toolbar
It includes all the functions.
2
UUTs’ list
The list will display all the connected UUTs. It shows the
UUTs’ information, real-time pressure value, real-time curve
and main function buttons.
3
Real-time pressure
display area
This area will display the real-time pressure, max pressure,
min pressure and average value of selected UUT.
4
Pressure value
curve display area
This area shows the whole curve of selected UUT.
5
Status bar
This area shows information like prompt message and
software version.
