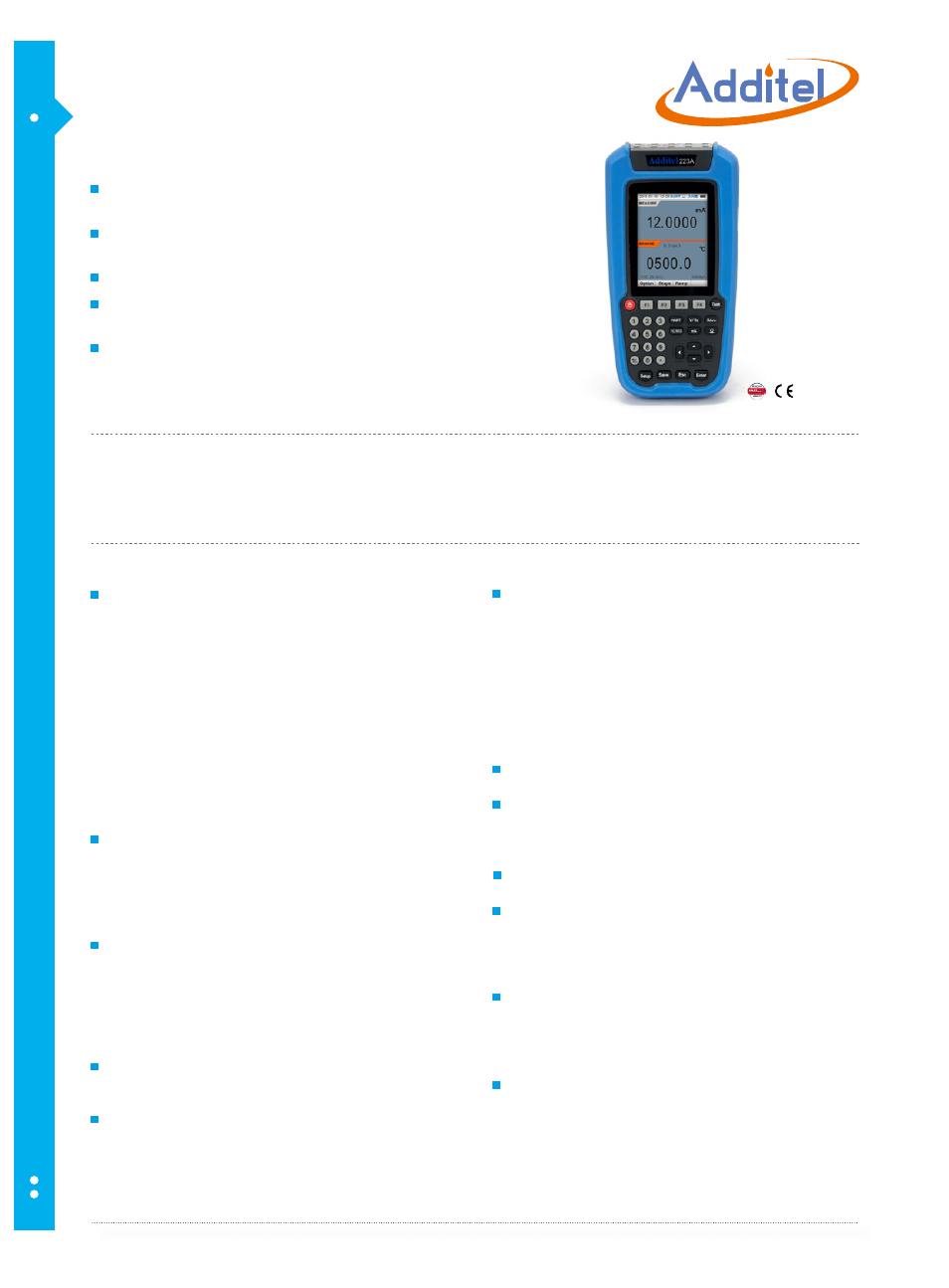

Documenting Process Calibrator
Additel 223A
Sourcing, simulating and measuring pressure,
temperature and electrical signals
Smartphone-like menu and interface make the
operation simple
HART Communication capability
The internal cold junction compensation sensor can
be re-calibrated at ice point by user
Ultra-compact, 3.9" x 7.6" x 2.0", and 1.6 lb (0.7 kg)
OVERVIEW
A highly integrated multifunction calibrator featuring several patented technologies. The 223A is an ultra-compact,
rugged, and easy to use hand-held device for sourcing, simulating and measuring pressure, temperature, and electrical
signals. Its smartphone-like menu and interface make the operation simple. With HART communication capability, the
223A is ideal for calibrating, maintaining, and troubleshooting HART instrumentation. Automation and documentation
capabilities make the 223A a turnkey solution.
Sourcing, simulating and measuring temperature and electrical
signals
Sources and measures mV, mA, ohms, RTDs,
thermocouples, frequency, and pulses
Simulates and measures 13 thermocouples and 11
RTDs to calibrate transmitters
Measures and sources pressure using Additel 160
series Intelligent Digital Pressure Modules from -15 psi
to 10,000 psi (-1 bar to 700 bar)
24V loop power supply
Simultaneous dual reading capability
Automatic switch test
Supports square root transmitter
Pulse frequency output for the calibration of flow totalizer
Easy to use
Smartphone-like menu and interface make the operation
simpler and easier
Ultra-compact, size 3.9" x 7.6" x 2.0" (100mm x 192mm
x 52mm), and weight 1.6 lb (0.7 kg)
One hand operation
Calibrated cold junction compensation (Patented)
Cold junction equivalent block in the calibrator
A calibrated PRT element with flexible leads is installed
in the equivalent block for thermocouple cold junction
compensation
This PRT element can be pulled out from the calibrator
and re-calibrated and corrected at ice point by users
Built-in temperature readout
CVD coefficients of a calibrated PRT can be input into
the calibrator for accurate temperature measurement.
Multi lingual interface
English, German, French, Italian, Spanish, Portuguese,
Simplified Chinese
(Traditional Chinese, Japanese and Russian are
available per request)
Documenting and automated procedure capability
Manage the information of the device under test.
Set up automated calibration procedures, and 223A
performs the test, calculates the errors, displays and/
or stores the results in the memory, and highlights the
out-of-tolerance points.
As-found and As-left functions allow recording and
documenting results for quality control.
Download tasks and upload the results.
Snapshots allow you to capture and save work.
HART Communication capability
Support HART
®
instrumentation
Build-in unit conversion tool
Build-in converters for pressure units, temperature
units, temperature vs. resistance (RTDs), and
temperature vs millivolt (thermocouples)
Display
3.5 inch TFT color screen
Rugged
Rugged design for harsh environments.
Passed a 1-meter drop test.
Three years warranty for the 223A, and one year for
the battery pack
Misuse protection
Up to 30V voltage on any two sockets and up to
1A current on current sockets will not damage the
calibrator. The calibrator will return to normal condition
as soon as the voltage or current is removed.
Rechargeable battery
Rechargeable Li-ion battery for 15 hours uninterrupted
use.
Battery life will be reduced when 24V is applied.
The rechargeable battery is replaceable.
