1 – SPECIFICATION
BT900SRIND BT900SR
Mains voltage (Volt): 110 V~ 50Hz 240V~50Hz
Motor capacity: 1100W 900W
Insulation class: B B
House protection class: IP54 IP54
No load speed (/min): 3400 2850
Max. Cutting Depth: 35mm 35m
Maximum Cutting Length: 760mm 760mm
Diamond blade size: Ø200 X Ø22 .23mm(bore) Ø200 X Ø22 .23mm(bore)
Table size (no extension): 807 X 460mm 807 X 460mm
Net/Gross weight: 75/85KGS 75/85KGS
Caution! Any modification which could lead to a change in the original characteristics
of the machine, such as rotational speed or maximum diameter of the cutting-off wheel
may be carried out only by the manufacturer of the machine .
2 – OPERATOR’S INSTRUCTIONS
RANGE OF APPLICATIONS AND PROPER USE
The tilt tile cutter is developed for the cutting of small and moderate size ceramic,
marble, granite, and masonry sheet . This cutting machine has the capability to tilt
the diamond blade to cut on the bias (45˚-90˚), plunge cut, push cut and pull cut . The
diamond blade is cooled by water pump .
Use only the continuous rim diamond blade recommended by the manufacturer .
Warning: Never attempt to cut wood, metal and other similar material with this machine.
Never use this machine in potential explosive environment or underground environment.
KNOW YOUR MACHINE

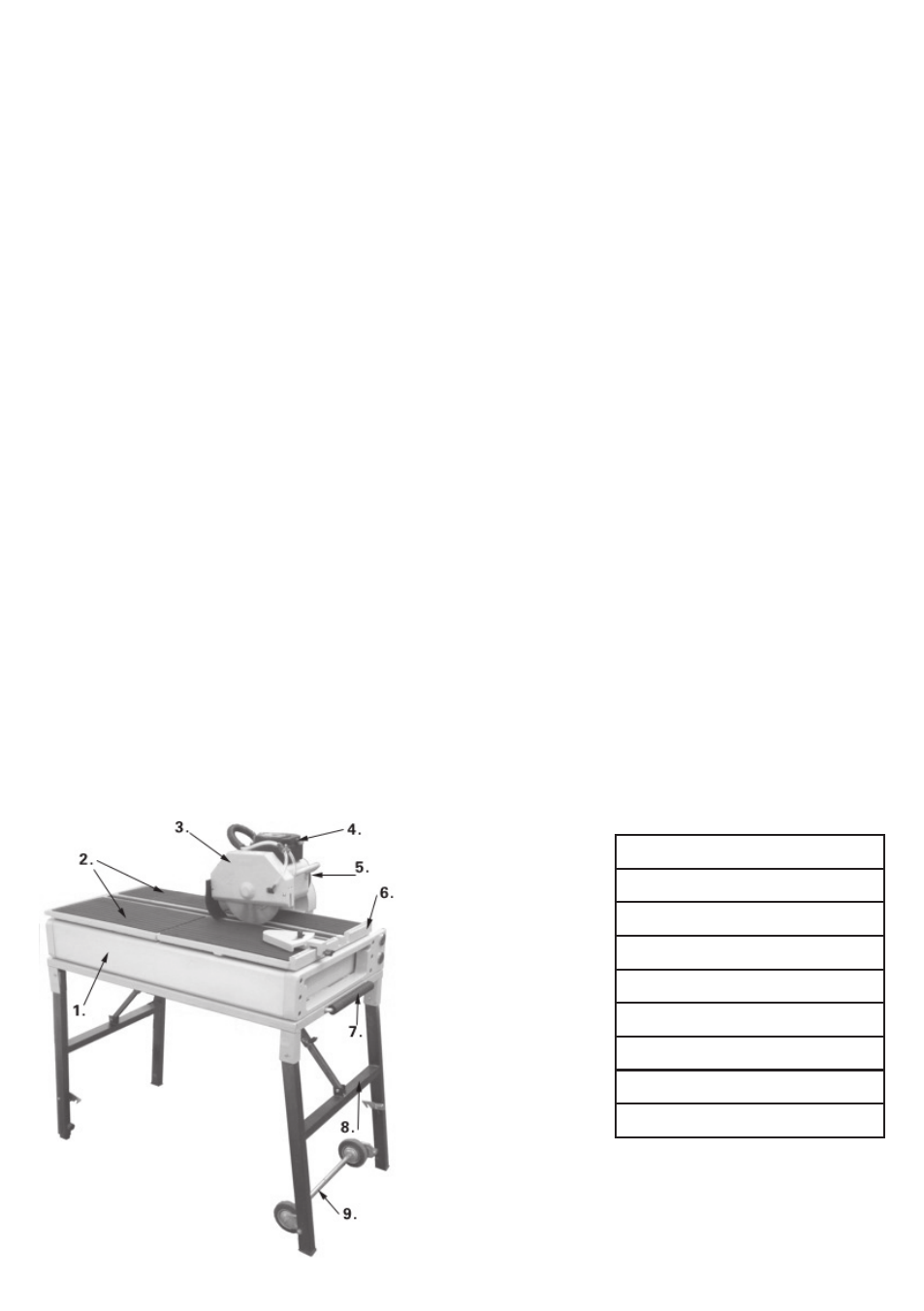

Fig . 1
1 . Machine frame
2 . Table
3 . Blade guard
4 . Switch box
5 . Handle
6 . Angle Cutting Guide
7 . Move handle
8 . Stand
9 . Wheel system
