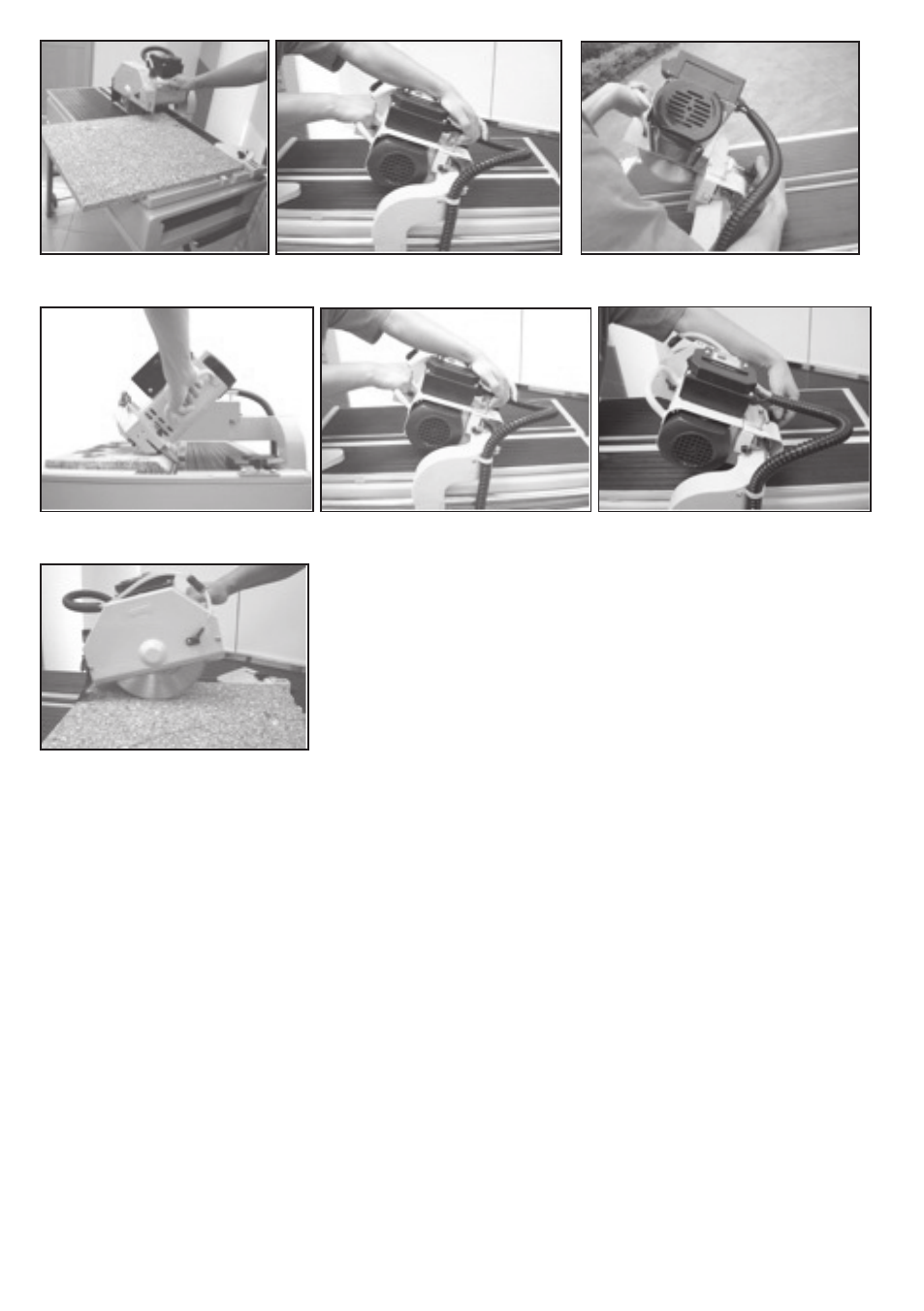

Fig . 16 Fig . 17 Fig . 18
Fig . 19 Fig . 20 Fig . 21
Fig . 22
H. MAKING A 45˚ BEVEL CUT
1 . Pull out the lock bar and raise up the cutting block . (Fig . 17) .
2 . Tilt the cutting block at 45˚ and tighten the lock knob (Fig . 18) .
3 . Following the same procedure as straight cut to cut the tile/stone . (Fig . 19)
I. MAKING A PLUNGE CUT
1 . Pull out the lock bar and raise the cut unit . (Fig . 20)
2 . Tighten the lock knob . (Fig . 21)
3 . Following the same procedure as straight cut to cut the tile/stone . (Fig . 22)
J. REPLACING THE DIAMOND BLADE
NOTE: The Saw Blade should be checked before each use of the Stone/Tile Saw . A dull
or damaged Saw Blade is potentially dangerous to the operator and will result in a poor
quality stone/tile cut . Only use a continuous rim diamond blade .
WARNING! Disconnect the power supply before making adjustments or maintenance on
the machine!
1 . CHOICE OF THE DIAMOND Blade Only use diamond blades with diameter of 200mm .
The bore of the blade must be 22 .23mm, rated at a minimum 3,000RPM .
