REPLACEMENT PARTS

We make every effort to ensure that all units ship complete and arrive undamaged. However, should your

unit contain missing or damaged parts, replacements may be obtained directly from us. To obtain proper

replacement parts, follow the instructions below, or fill out the form at www.tennsco.com/partsorder.html.

l
l
l
l

TO OBTAIN PROPER REPLACEMENT PARTS, PLEASE PROVIDE THE FOLLOWING INFORMATION:

Model Number

Purchase Date

Description of part(s) needed and part

Your company name

number(s) as shown in Parts List (above)

Contact person's name

Color (i.e. Medium Grey, etc.)

Who the product was purchased from

Was item missing, or was it damaged?

Tennsco Corp., P.O. Box 1888, Dickson, TN 37056-1888

E-mail address: [email protected]

Customer Service: (866) 446-8686 Fax: (800) 722-0134

If requesting parts by telephone, ask for customer service and have as much of the above information ready as possible.

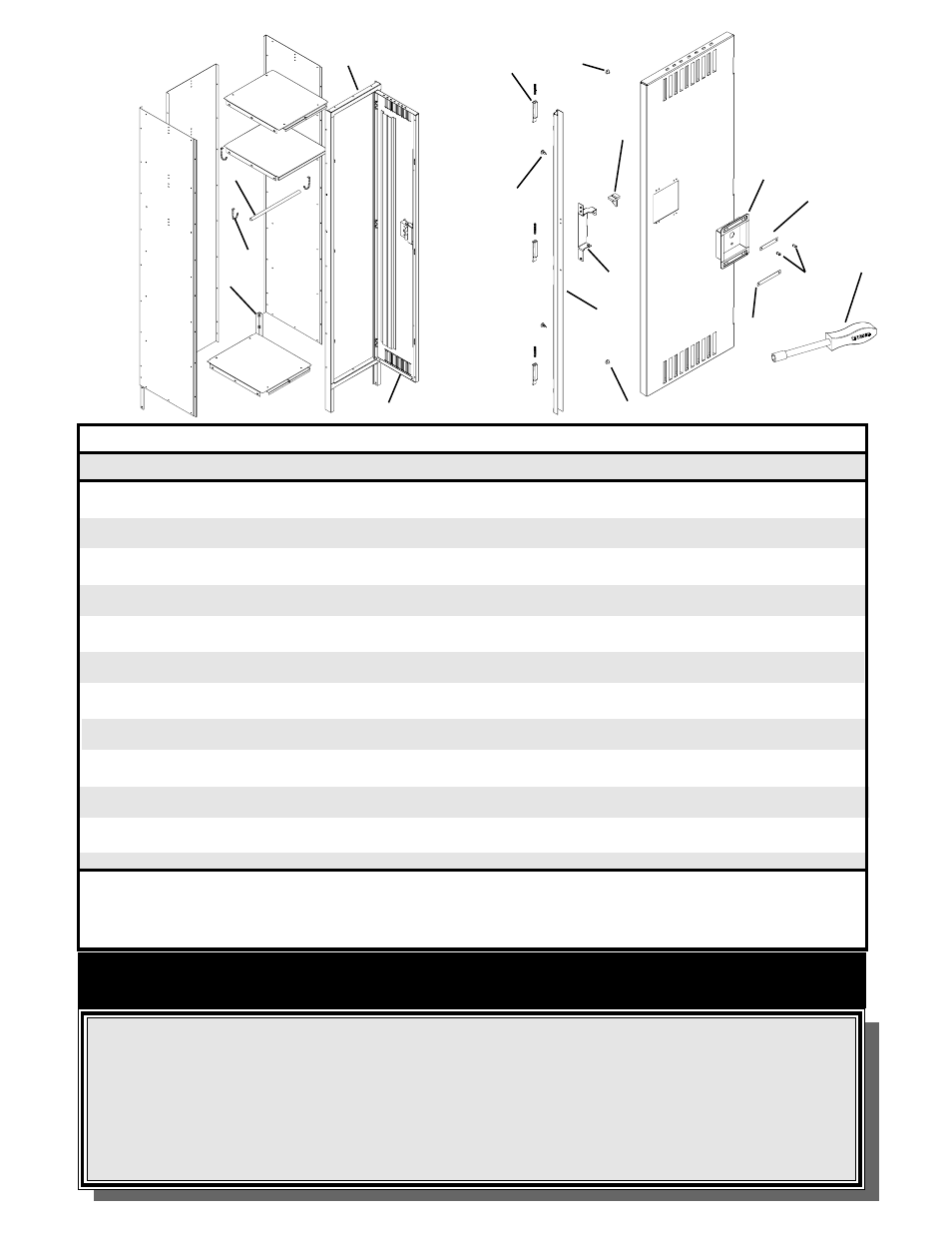

PART NO.

DESCRIPTION

QUANTITY

1

Back

kLSTB-wwhh

3

2

Left side

kLSSL-ddhh

2

3

Rear leg

LRL-1

4

4

Shelf

kESL-wwdd

3

5

Coat hook

LCH-1

6

6

Top/Bottom

kLTB-wwdd

6

7

Right side

kLSSR-wwhh-x

2

8

Door frame assembly

kLSFA-wwhh-x

3

9

Locker Door

kLSTD-wwhh

3

10

Coat rod (in units 18" or deeper only)

kLCR-ww

3

11

Number plate

LNP-3

3

12

Push plug

LPP-1

6

13

Latch and spring

LL-3

9

14

Bumper

LB-1

6

15

Dart clip

LDC-1

6

16

Locking channel

LLCA-1

3

17

Lock receiver

LPR-2

3

18

Reinforcement tab

LRT-1

3

19

Recessed handle ( painted steel )

LRH-2

3

or

Recessed handle ( plastic )

LRH-1

3

or

Recessed handle (stainless steel )

LCH-1

3

20

Logo plate

LPN-2

3

21

Tennsco nut driver

TOOL-2

1

REF. NO.

k Part No. is composed of prefix shown plus combination of opening width, depth and height. Door frame

assemblies require a further suffix (x) of either 1 or A. "1" indicates frame with legs; "A" indicates frame

without legs. For example: A door frame assembly for locker STK-151872 with legs would be Part No.

LSFA-1572-1. The door assembly alone without the frame would be Part No. LSTD-1572 for the same locker.

l

l

l
l

1

2

3

4

5

6

7

10

8

6

9

11

12

17

16

15

20

14

21

18

19

13

14
