RETAIN INSTRUCTIONS FOR FUTURE REFERENCE!
REPLACEMENT PARTS
We make every effort to ensure that all units ship complete with all parts and arrive undamaged. However,
should your unit contain missing or damaged parts, replacements may be obtained directly from us. To
obtain proper replacement parts, follow the instructions below:
! ! ! ! !
! ! ! ! !
! ! ! ! !
! ! ! ! !
! ! ! ! !
! ! ! ! !
! ! ! ! !
! ! ! ! !
TO OBTAIN PROPER REPLACEMENT PARTS, PLEASE PROVIDE THE FOLLOWING INFORMATION:
Model Number (1480RH) Purchase Date
Description of part(s) needed and part Your company name
number(s) as shown in Parts List (above) Contact person's name
Color (i.e. Medium Grey, etc.) Who the product was purchased from
Was item missing, or was it damaged?
Tennsco Corp., P.O. Box 1888, Dickson, TN 37056-1888 Customer Service: (866) 446-8686 Fax: (866) 445-7260
If requesting parts by telephone, ask for customer service and have as much of the above information ready as possible.
PK-1780707

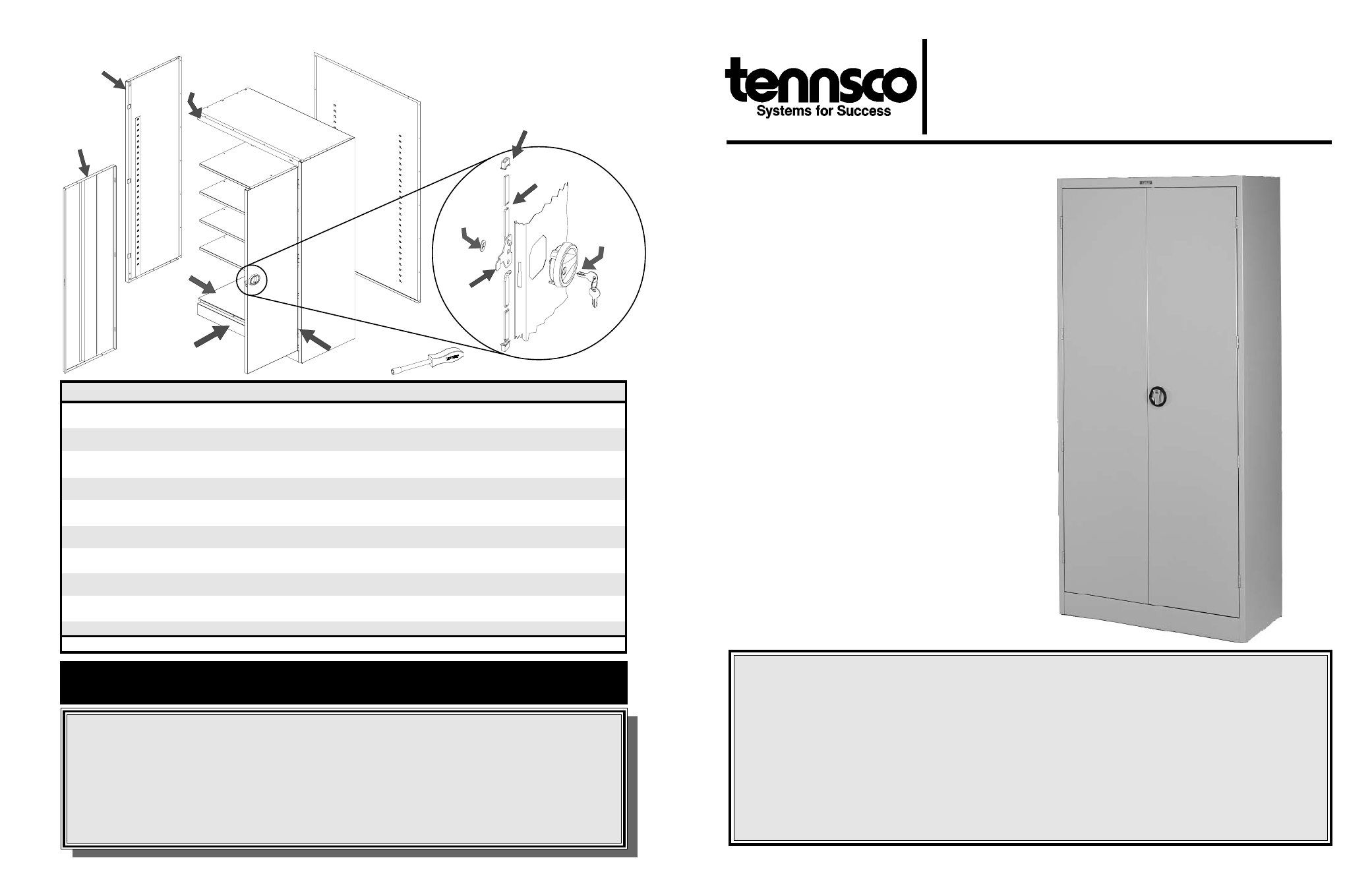

Right Side
(Ref. No. 3)
Sill
(Ref. No. 6)
Back Panel
(Ref. No. 1)
ASSEMBLY INSTRUCTIONS & PARTS MANUAL #1780707
Tennsco Corp., Dickson, TN 37056-1888 • (615) 446-8000
TENNSCO STORAGE CABINET
Model 1480RH
LIMITED WARRANTY
Tennsco warrants goods purchased hereunder to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment, hereunder.
This warranty shall not apply in the event goods are damaged as a result of misuse, abuse, neglect, accident, improper application, modification or repair by persons
not authorized by Seller, where goods are damaged during shipment, or where the date stamps on the goods have been defaced, modified or removed. UNLESS
CONSIDERED UNENFORCEABLE OR UNLAWFUL UNDER APPLICABLE LAW:
a. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE HEREBY EXCLUDED:
b. BUYERS REMEDY, IF ANY, FOR ANY DEFECTIVE GOODS SHALL BE LIMITED TO A REFUND BY SELLER OR REPLACEMENT OF THE GOODS AT
SELLER’S OPTION, AND SHALL IN NO EVENT INCLUDE DAMAGES OF ANY KIND, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.
NO GOODS ACCEPTED FOR RETURN WITHOUT PRIOR APPROVAL. Seller shall have the right to inspect any goods claimed to be defective at Buyers place
of business or require Buyer to return the goods to Seller for inspection on Seller’s premises. Transportation charges covering returned goods will be borne by
Seller only if such goods are proven to be defective, are covered by this warranty and are returned within the warranty period stated above.
TENNSCO Corp., P.O. BOX 1888, DICKSON, TN 37056-1888
(615) 446-8000 or (866) 446-8686 (toll free)
Website: www.tennsco.com E-mail: [email protected]
Shelf
(Ref. No. 4)
Bottom
(Ref. No. 7)
Left Side
(Ref. No. 2)
Top
(Ref. No. 8)
Header
(Ref. No. 5)
Left Door
(Ref. No. 9)
Right Door
(Ref.
No. 10)
Tennsco Nut Driver
(Ref. No. 17)
Hinge Pin
(Ref. No. 16)
REF. NO. PART NO. DESCRIPTION
1 Back panel 1 944BA
2 Left side 1 292LS
3 Right side 1 2924RS
4 Shelf 4 302
5 Header 1 944HE
6 Sill 1 944SI
7 Bottom 1 292BO
8 Top 1 292TO
9 Left door 1 944LD
10 Right door 1 944RD
11 Locking bar set 1 944LB
12 Locking handle w/keys & hardware 1 RH-1
13 Locking cam* 1 059LC
14 Cam retainer* 1 944CR
15 Locking bar guide insert (nylon)* 2 944GI
16 Hinge pin 6 944HP
17 Tennsco nut driver 1 TOOL-2
18 #8-32 x 3 / 8 "bolts* 44 AVAILABLE LOCALLY
19 #8-32 nuts* 44 AVAILABLE LOCALLY
*Included in Ref. No. 12, locking handle with keys and hardware (Part No. RH-1).
QTY.
Congratulations on your purchase of a
Tennsco Storage Cabinet! Tennsco's 1480RH
units are general purpose storage cabinets
that provide a level of quality you won't find
elsewhere. They provide secure storage for
office supplies, books, records, small parts,
tools, etc.
These cabinets offer five openings with four
adjustable shelves, a recessed handle with two
keys, and a three-point locking system for
extra security.
Tennsco's cabinets are constructed from top
quality 24 gauge steel, with 20 gauge steel
shelves, offering weight capacities of up to 200
lbs. per shelf (evenly distributed). Our attractive
and durable powder-coated paint finish will
provide for years of service.
GENERAL SAFETY INFORMATION
Some parts may have sharp edges. CARE must
be taken when handling various pieces to avoid
injury. For safety, wear a pair of work gloves when
assembling or performing any maintenance on
your cabinet.
Cam Retainer
(Ref. No. 14)
Locking Cam
(Ref. No. 13)
Locking Handle
with Keys
(Ref. No. 12)
Locking Bar Guide
Nylon Insert
(Ref. No. 15)
Locking Bar Set
(Ref. No. 11)
