Figure 1 figure 2, Door-lock detail – Tennsco Single Tier Lockers Three Wide User Manual
Page 3

9.
Place non slotted end of coat rod (Ref. No.
10) over projecting tab at top of left coat hook.
Slide the slotted end of the coat rod over the
projecting tab in the right coat hook and turn
90 degrees to secure it.
10.
Anchor units to wall or floor. The units are not
intended to stand free and may topple if not
secured. (Units standing back to back should
be bolted together.)
11.
If units are not pre-numbered, optional number
plates (Ref. No. 11) may be attached with two
#6 x 5/16 drive screws or push plugs (Ref.
No. 12).

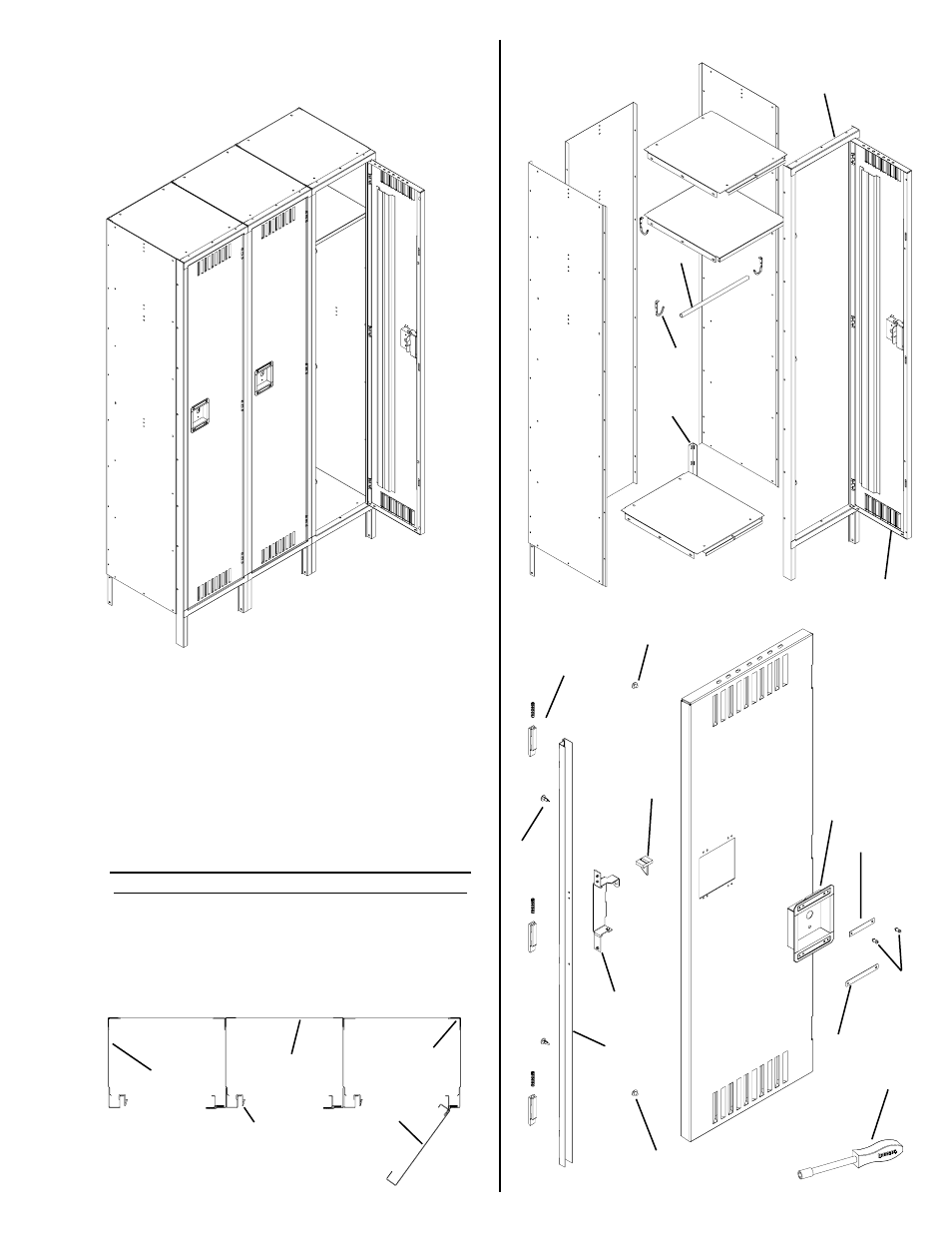

FIGURE 1
FIGURE 2
SIDE
BACK
DOOR
LEG
FRAME
HOOK
1
2
3
4
5
6
7
10
9
8
6
11
12
13
14
18
19
17
16
15
20
14
21
DOOR-LOCK DETAIL
8.
Stand units upright and place in desired
location. Bolt adjacent units
together through frames.
Care must be taken to assure that lockers
are set plumb and true before anchoring.
