Tennsco Q-Line Shelving Open - Manual (Page 8)

REF.
NO. PART NO. DESCRIPTION
1a Offset Angle Post OAP-hh 7 Optional Front Base Strip FBS-ww2
1b Beaded T-Post BTP-hh 8 Optional Label Holder LH-ww
1c Heavy Duty Beaded Post HBP-hh --- Optional Hinged Door & Frame HD-3687
2a End Sway Braces (Pair), 12" to 24" ESB-1224 --- Optional Bin Dividers BD-ddhh
2b End Sway Braces (Pair), 30" to 36" ESB-3036 --- Optional Bin Front BF-wwh
3 Shelf Clip T-1--- Optional End Panel EP-ddhh
4a 22 gauge steel shelf Q2-wwdd --- Optional Back Panel BP-wwhh
4b 20 gauge steel shelf Q-wwdd --- Optional Foot Plate FP-1
5 Rear Sway Braces (Pair), 48" RSB-48 --- Optional Sliding Divider SD-ddhh
6 1 / 4
-20 x 5 / 8
" bolts and nuts ------- --- Optional Shelf Box BX-wwdd
REPLACEMENT PARTS
Tennsco makes every effort to ensure that all units ship complete with all parts and arrive undamaged.
However, should your unit contain missing or damaged parts, replacements may be obtained directly from
Tennsco. To obtain proper replacement parts, follow the instructions below:
l
l
l
l
l
l
l
l
TO OBTAIN PROPER REPLACEMENT PARTS, PLEASE PROVIDE THE FOLLOWING INFORMATION:
Model Number Purchase Date
Description of part(s) needed and part Your company name
number(s) as shown in Parts List (above) Contact person's name
Color (i.e. Medium Grey, etc.) Who the product was purchased from
Was item missing, or was it damaged?
Tennsco Corp., P.O. Box 1888, Dickson, TN 37056-1888 Voice: (800) 251-8184 Fax: (800) 722-0134
If requesting parts by telephone, ask for customer service and have as much of the above information as possible.

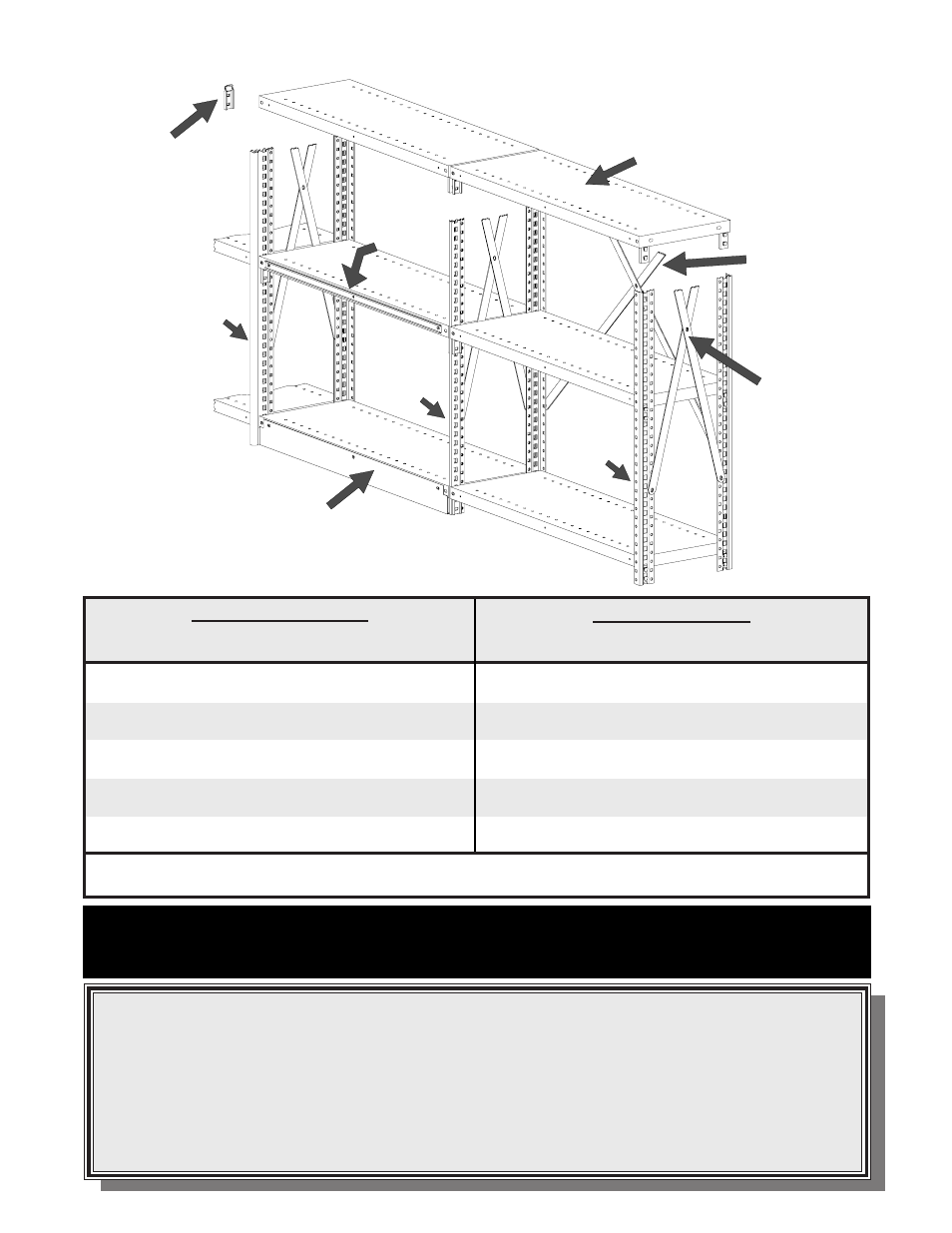

End Sway Braces
(Ref. Nos. 2a, 2b)
Shelf Clip
(Ref. No. 3) Steel Shelf
(Ref. Nos. 4a, 4b)
Optional
Front Base
Strip
(Ref. No. 7)
Offset Angle
Post
(Ref. No. 1a)
Optional
Label Holder
(Ref. No. 8)
REF.
NO. DESCRIPTION PART NO.
BASIC UNIT PARTS OPTIONAL ITEMS
Beaded
T-Post
(Ref. No. 1b)
Heavy Duty
Beaded Post
(Ref. No. 1c)
Rear
Sway Braces
(Ref. No. 5)
*Where the suffix "ww", "dd", or "hh" is used in the part number, the width (ww), depth (dd) or height (hh) is sub-
stituted in the part number. For example, for an 84" high Offset Angle Post, the part number would be OAP-84.
