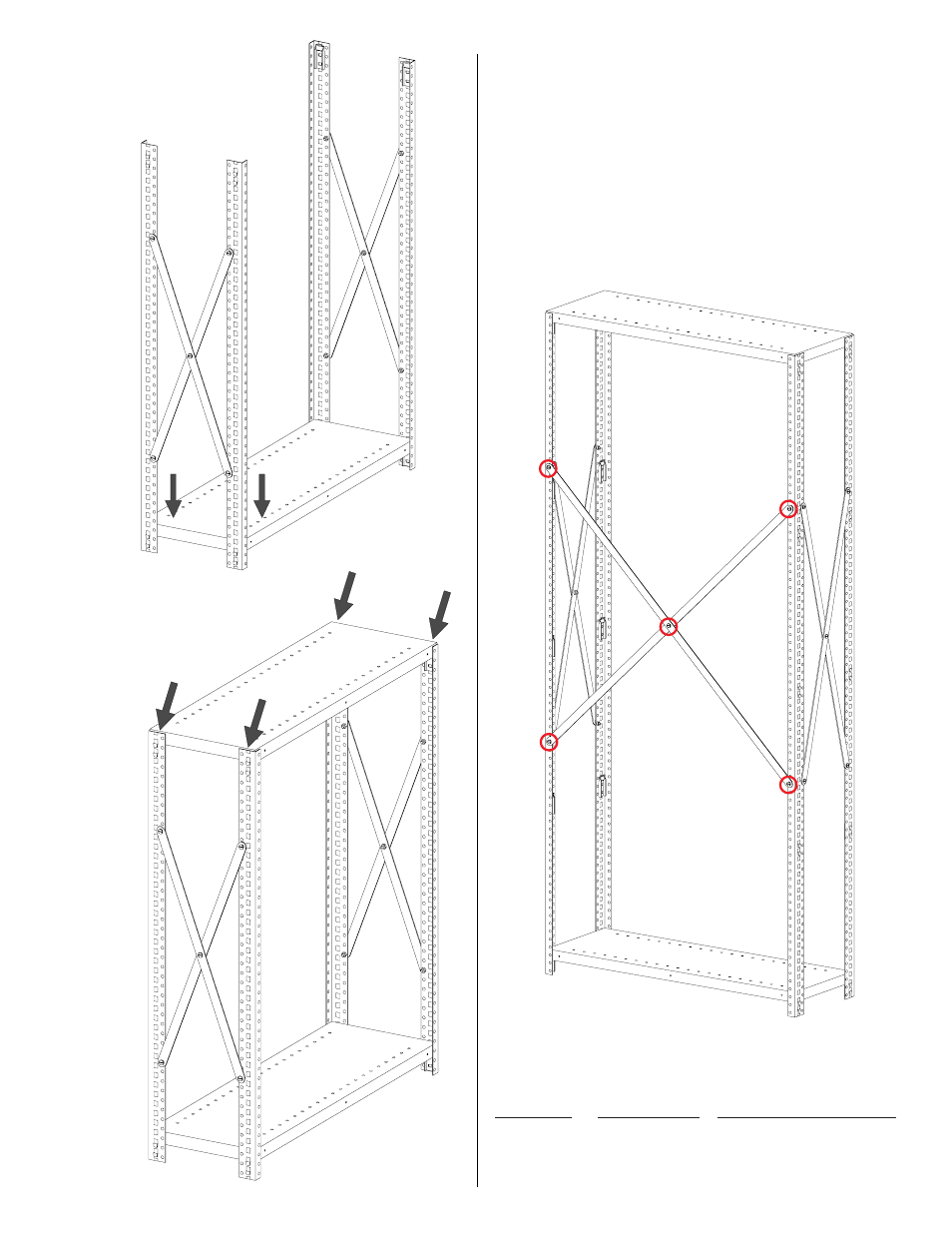

12. Bolt the rear sway braces (Ref. No. 5) on the
back of the unit, using five 1 / 4
-20 x 5 / 8
bolts and
nuts, as shown. Again, the top of the sway
braces should be in the 20th hole from the top
of each upright (approximately 20 inches from
the top). The chart below will help you
determine the proper number of holes between
the top and bottom of the sway braces. Note
that the hole count INCLUDES the holes
which will contain the bolts.
11. Place the top shelf over
the four clips at
the top of the
upright.
10. Tie in the two sets
of uprights with the
bottom shelf.
Unit Width Brace Length Distance Between Bolts
36" 56 11 / 32
" 44 holes (43")
42" 56 11 / 32
" 38 holes (37")
48" 56
11 / 32
" 30 holes (29")
