Empty carbon, distributor tube and gravel into a disposable
container and wash all parts clean. Discard the old dis-
tributor tube.
Reassemble unit by centering new distributor tube (includ-
ed in mineral package 136227) in tank and cover top end
of tube with masking tape to prevent gravel and carbon
from entering the tube. Using mineral package 136227,
pour in gravel and then the carbon, keeping the distributor
tube centered in the tank opening. Remove cover from
distributor tube and reinstall the distributor head.
The filter may now be reinstalled under the sink following
the installation instructions. Refer to start up instructions
before using the filter. NOTE: Record date carbon was
replaced for future reference.
2
CARBON REPLACEMENT RECORD
Cold
Water
Line
Union ➀
Poly Tubing ➁
Manifold
➃
Distributor
Tube ➄
Activated
Carbon
Gravel
Shut-Off Valve
Cold Water
Line
Union ➀
Tank
➅
Poly Tubing ➁
Hot Water Line
➂ ➂
Figure 2 Feed tube supplied
with unit
Union
Ferrule (use plastic
for plastic tubing or
brass for copper
tubing
Copper or plastic tubing
coming from home or
going to cold water faucet
Brass compression nut
Tube insert
Install this end of
both tubes to inlet
and outlet of carbon
unit as shown. Do
not add white plastic
ferrules or anything
else to this end.

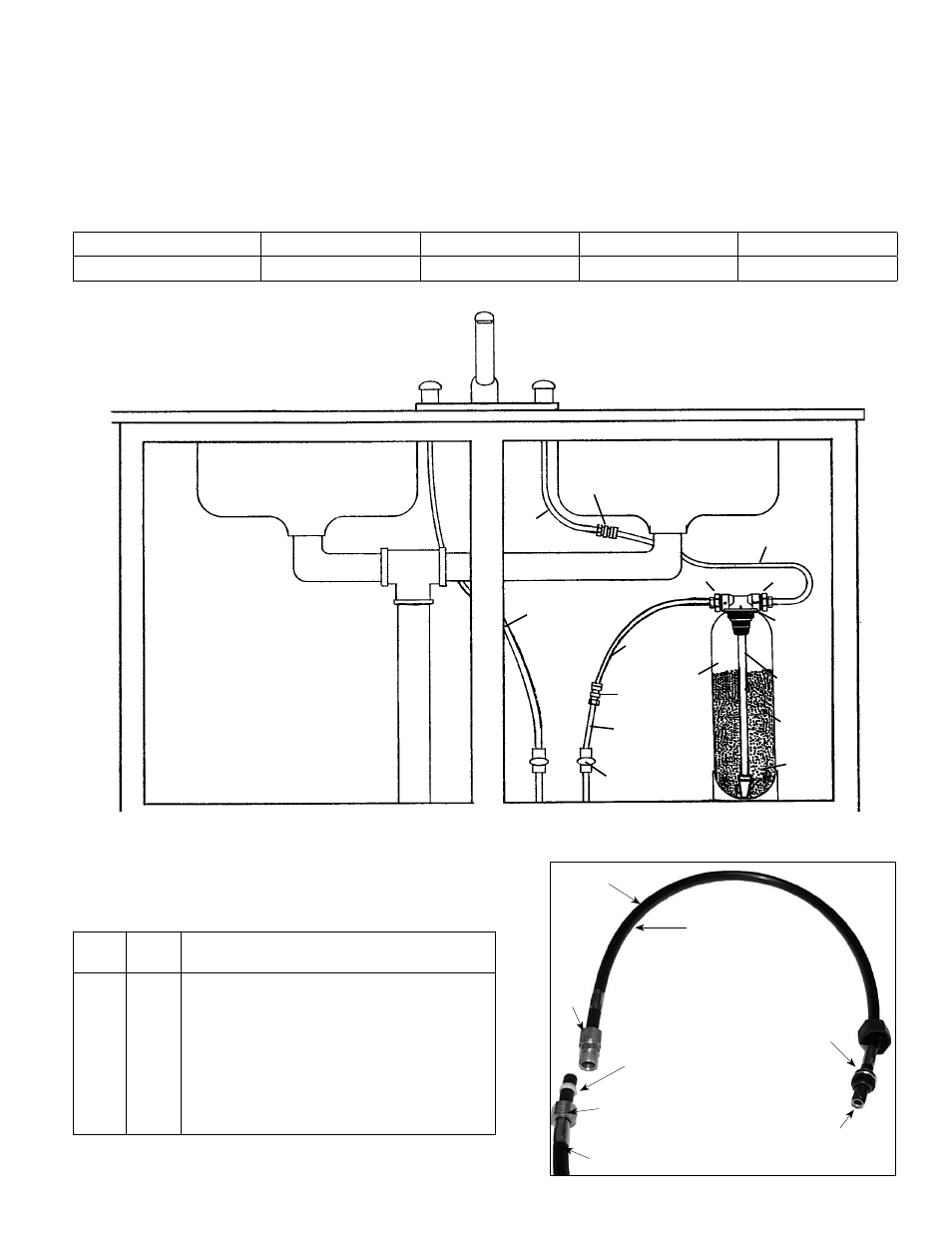

Installation Illustration Figure 1
REPAIR PARTS
NO.
PART
NO.
DESCRIPTION
1
2
3
4
5
6
7
136237
136236
136235
020088
136950
136232
136227
127737
131120
023053 Union 3/8” compression x 3/8” compression (Figure 1)
Tube/poly 3/8” O.D. x 2 ft. (Figure 1)
Union 3/4” N.P.T. x 3/8” compression (Figure 1)
Manifold (Figure 1)
Distributor (Figure 1)
Mineral tank/base (6 x 18) (Figure 1)
Carbon refill kit (Figure 1)
Ferrule/plastic 3/8” (Figure 2)
Insert/tube (Figure 2)
Tube Assy. (Figure 2)
Original Installation Date Replacement Date Replacement Date Replacement Date Replacement Date
Tube Assy. (7)
