13 © Trynex International 2011 (REV 001)

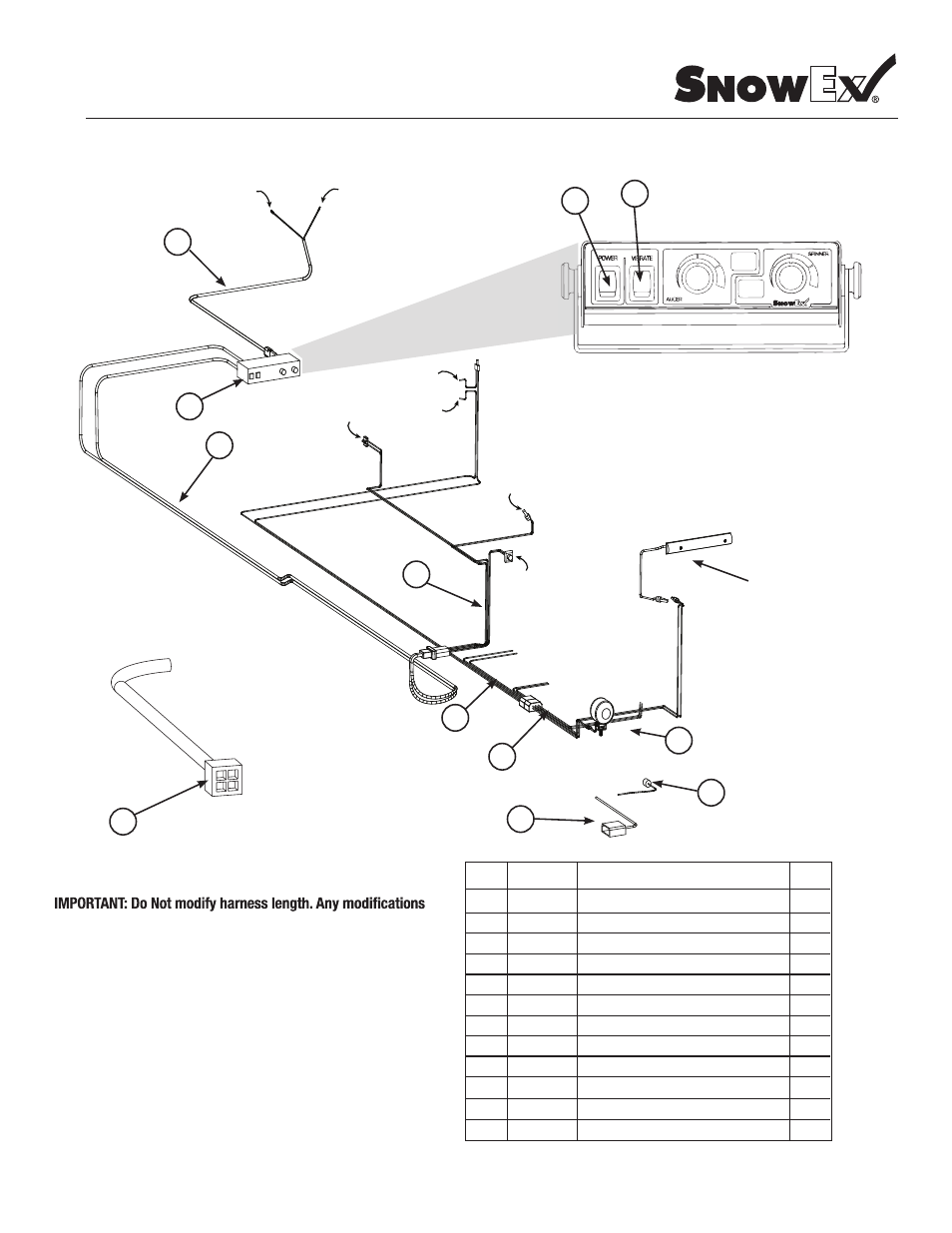

Control and Harness Diagram
Model # SP-8500
Aux.
Brake Light Power
(Truck)
Spinner Plug
(+)
(-)
Vibrator
Auger Motor
Truck Cab.
Power Under Dash
Aux.
(+) (-)
Key Part No. Description Qty
1 D6838 Spreader Harness 1
2 D5716 Spreader Control 1
3 D6118 Dust Cover | Standard 1
4 D6170 Connector Adapter | 6” Anderson 1
5 D6237 Power Switch | 5 Terminal 1
6 D6836 Vehicle Harness 1
7 D6837 Control Power Cable 1
8 D6343 Dust Cover 2
9 D6354 Vibrator Switch | 3 Terminal Red 1
10 D6784 Utility Work Light 1
11 D6785 Light Kit Spreader Harness 1
12 D6786 Light Kit Vehicle Harness 1
IMPORTANT: In the off season remove control
and put in a cool dry place. The interior summer
temperatures could damage circuit board and
void warranty.
10
6
1
12
3
8 4
2
5
9
will void warranty.
Special Notes:
1) All external connections must have dielectric grease.
2) Read lead labels before attaching to power source or ground.
3) No other devices may be spliced into wiring harness.
4) Any repairs to wiring harness must be done with heat shrink butt
connectors.
7
11
See CHMSL page 15
