STEP 1
Determine the location of the vehicle’s battery.

STEP 2
Mount the breaker within 12 inches of the battery’s positive terminal.

STEP 4
Connect the negative lead of the harness to the negative terminal of the battery and the positive harness lead to the “AUX” terminal on the
breaker.

STEP 5
Tie the harness to the frame and other harnesses, working from the hitch area to the battery. Keep away from high-temperature and moving
components. Leave the end by the hitch loose so the harness can connect to the plug on the trailer tongue.

STEP 6
Connect the breaker wire to the positive terminal of the battery and the “BAT” terminal of the breaker.

STEP 7
Connect the spreader. Test that the spinner, auger, and vibrator work.

STEP 3
Route the harness from the rear of the vehicle, near the drawbar, to the battery. Leave enough harness free near the hitch to allow connect-
ing to the trailer tongue plug. Keep away from high-temp and moving components

Vehicle Wiring Instructions

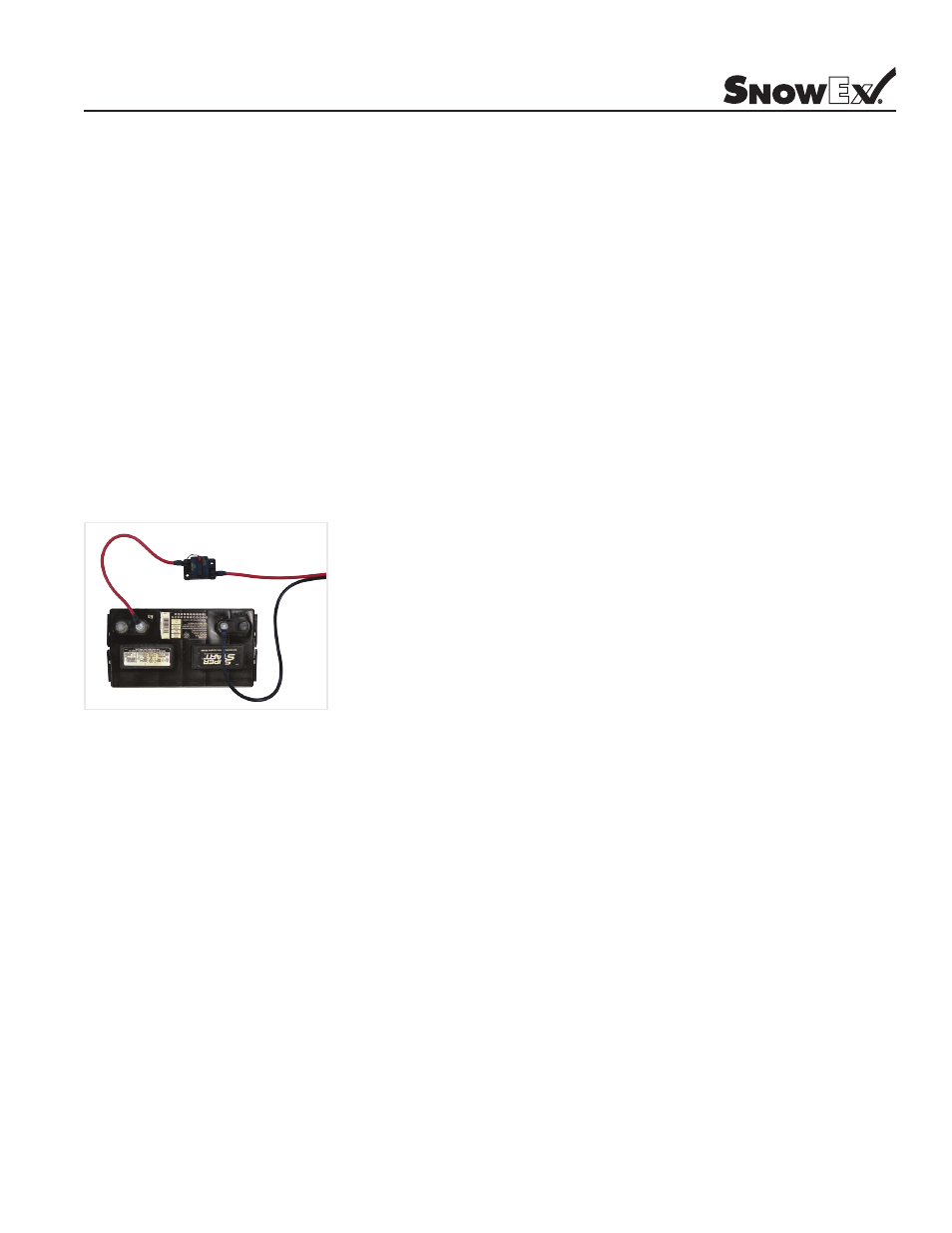

View of Battery, Breaker,
Breaker Wire, and
Harness.

FINISHED
