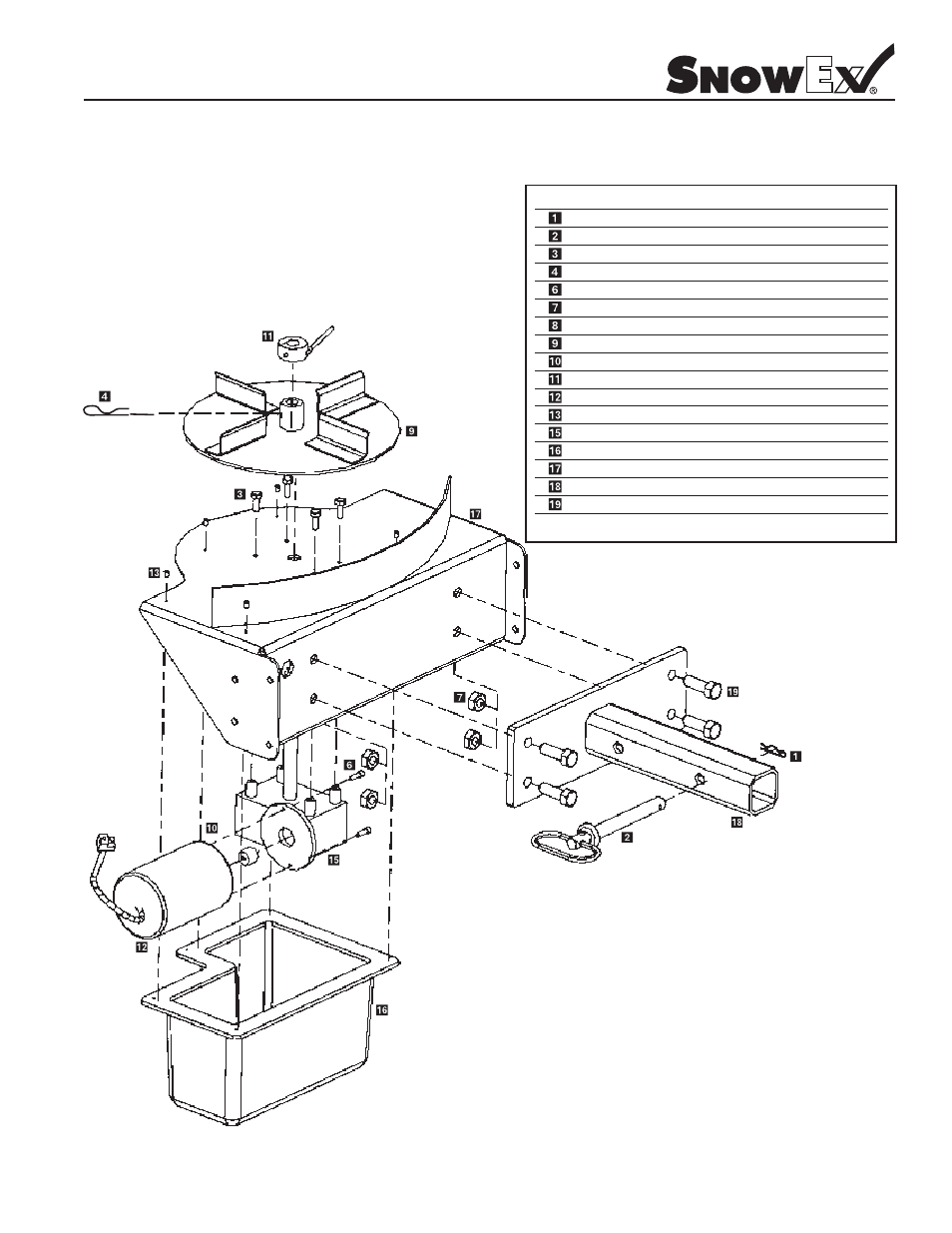

Complete Drive Assembly Parts Breakdown
Model #SP-125/US-100
Key Part No. Description Qty.
D 4135 2-5/16" Hair Pin Clip 1
D 4136 5/8" x 5-1/2" Hitch Pin 1
D 6131 1/4"-20 x 1/2" Serr. Flange Bolt 4
D 6746 5/16'' x 1-1/4 Detent Clevis 1
D 6172 #10-32 x 5/8" Serr Flange Bolt 2
D 6140 5/16" - 18 x 3/8" S.S. Set Screw 1
D 6750 10" Plastic Spinner 1
D 6232 Motor Drive Coupler 1
r 1 o t a ti g A 5 0 4 6 D
D 6410 Motor 12 Volt DC 1
D 6487 #8 x 1/2" Hex Head Sheet Screw 5
D 6715 Transmission 14.5 to 1 1
D 7153 Plastic Bottom Cover 1
D 6480 Transmission Weldment 1
D 6485 Light Duty Receiver Mount 1
D 4116 1/2"-13 x 1-1/2" Hex Bolt 4
D 4120 1/2" Lock Nut 4
D 6782 Complete Drive Assembly
