Complete drive assembly parts breakdown – SnowEx SP-225 / US-200 User Manual
Page 12
L1188 © Trynex International 2009
GR4 — 12

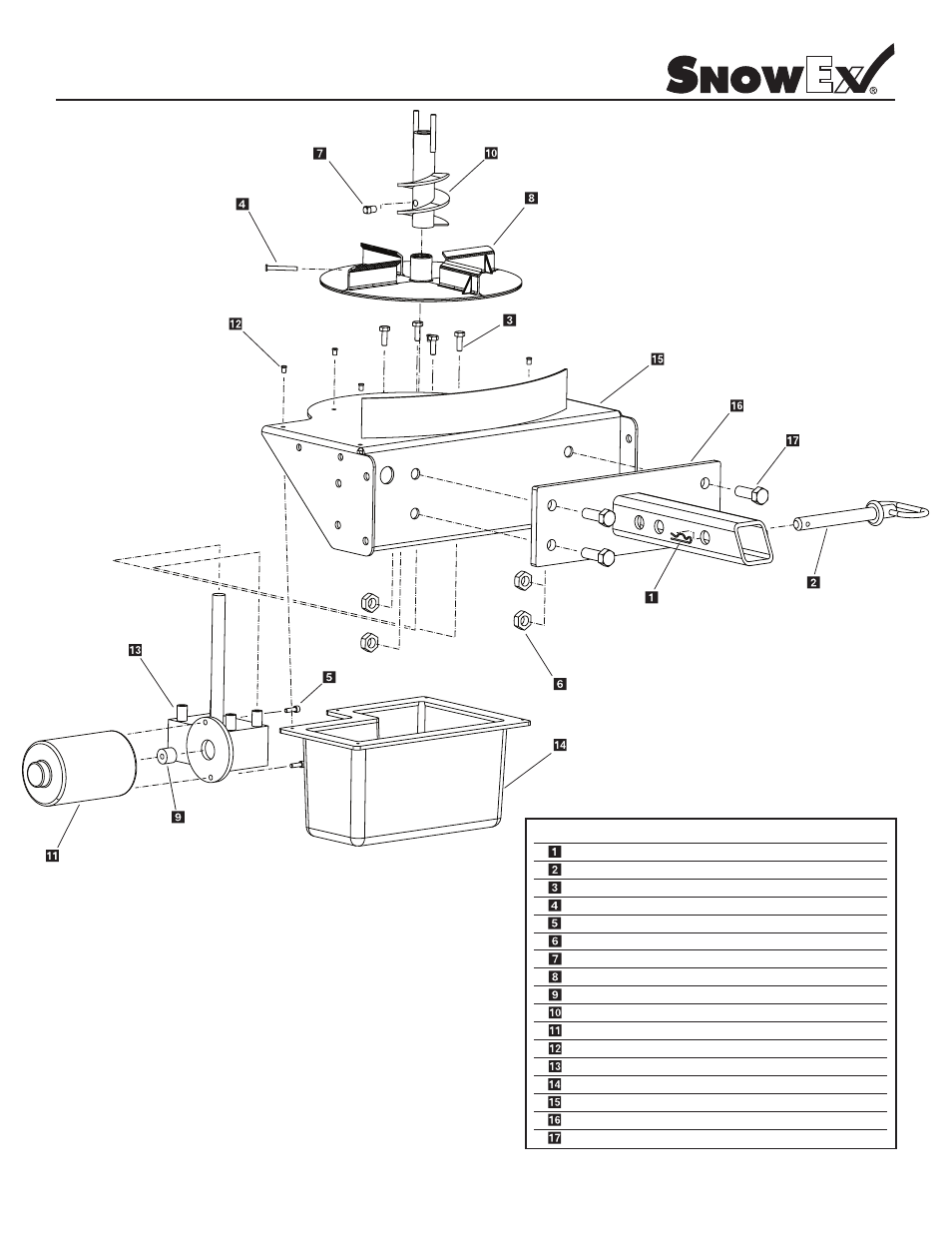

Complete Drive Assembly Parts Breakdown
Model #SP-225 / US-200
Key
Part No.
Description
Qty.
D 4135
2-5/16" Hair Pin Clip
1
D 4136
5/8" x 5-1/2" Hitch Pin
1
D 6131
1/4"-20 x 1/2" Serr Flange Bolt 4
D 6746
5/16'' x 1/4” Detent Clevis Pin 1
D 6172
#10-32 x 5/8’’ Serr Flange Bolt 2
D 6140
5/16" - 18 x 3/8" S.S. Set Screw 1
D 6750
10" Plastic Spinner 1
D 6232
Motor Drive Coupler 1
r 1
e
g
u
A
2
2
1
6
D
D 6410
Motor 12 Volt DC 1
D 6487
#8 x 1/2" Hex Head Sheet Screw 5
D 6715
Transmission 14.5 to 1 1
D 7153
Plastic Bottom Cover 1
D 6480
Transmission Weldment 1
D 6485
Light Duty Receiver Mount 1
D 4116
1/2"-13 x 1-1/2" Hex Bolt 4
D 4120
1/2" Lock Nut 4
Complete Drive Assembly
D 6783
