Frame assembly parts breakdown, Model # sp-1075x – SnowEx SP-1075X User Manual

Page 21

background image

21

© Trynex International 2012 (REV A) F50769

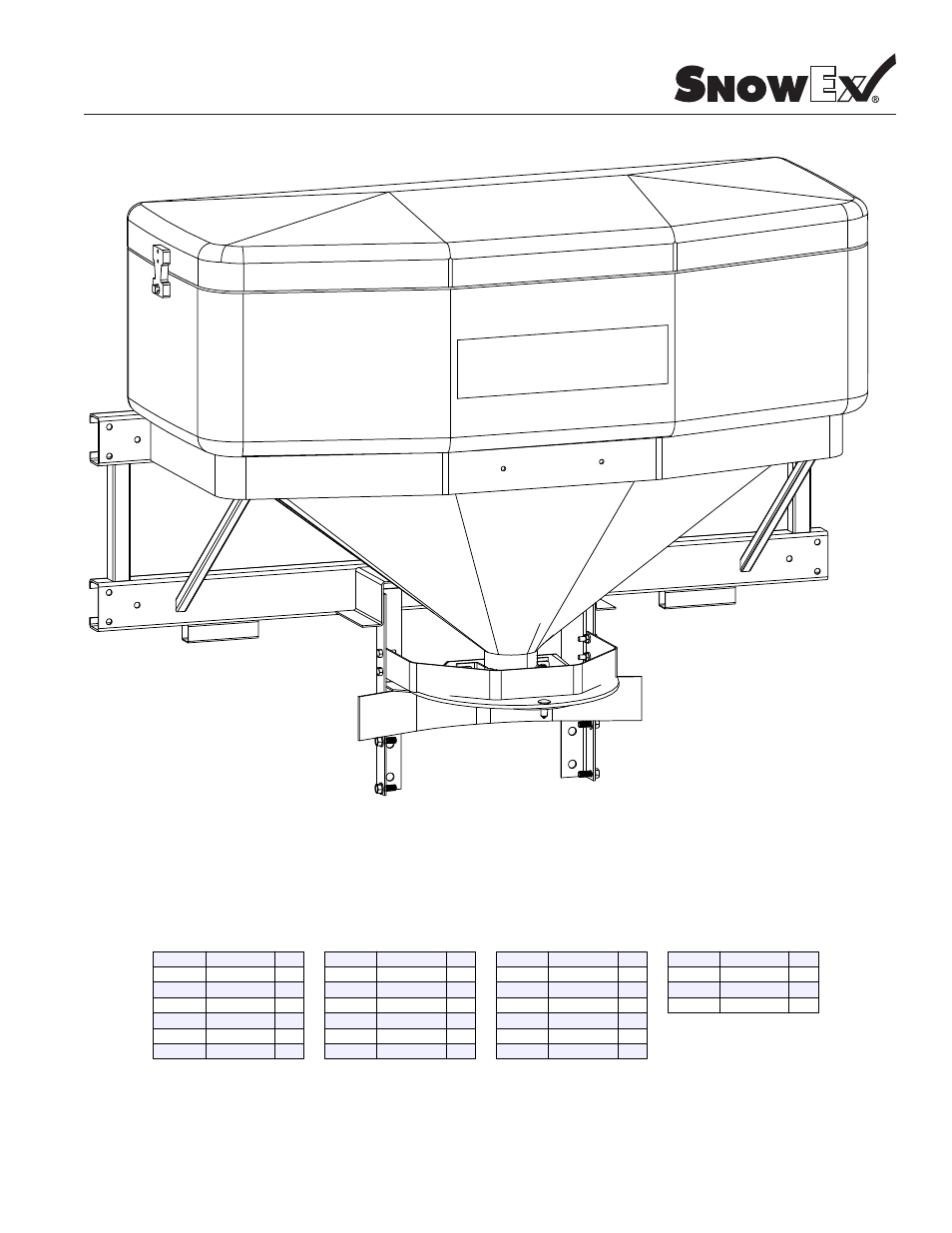

Frame Assembly Parts Breakdown

Model # SP-1075X

BOM ID Description

Qty

1

D5706

4

2

D6105

2

3

D6108

1

4

D6110

1

5

D6128

1

6

D6129

1

BOM ID Description

Qty

7

D6137

2

8

D6166

4

9

D6169

2

10

D6198

2

11

D6260

1

12

D6261

1

BOM ID Description

Qty

13

D6262

1

14

D6263

1

15

D6276

1

16

D6277

1

17

D6394

2

18

D6452

4

BOM ID Description

Qty

19

D6463

5

20

D6553

6

21

D6584

2
