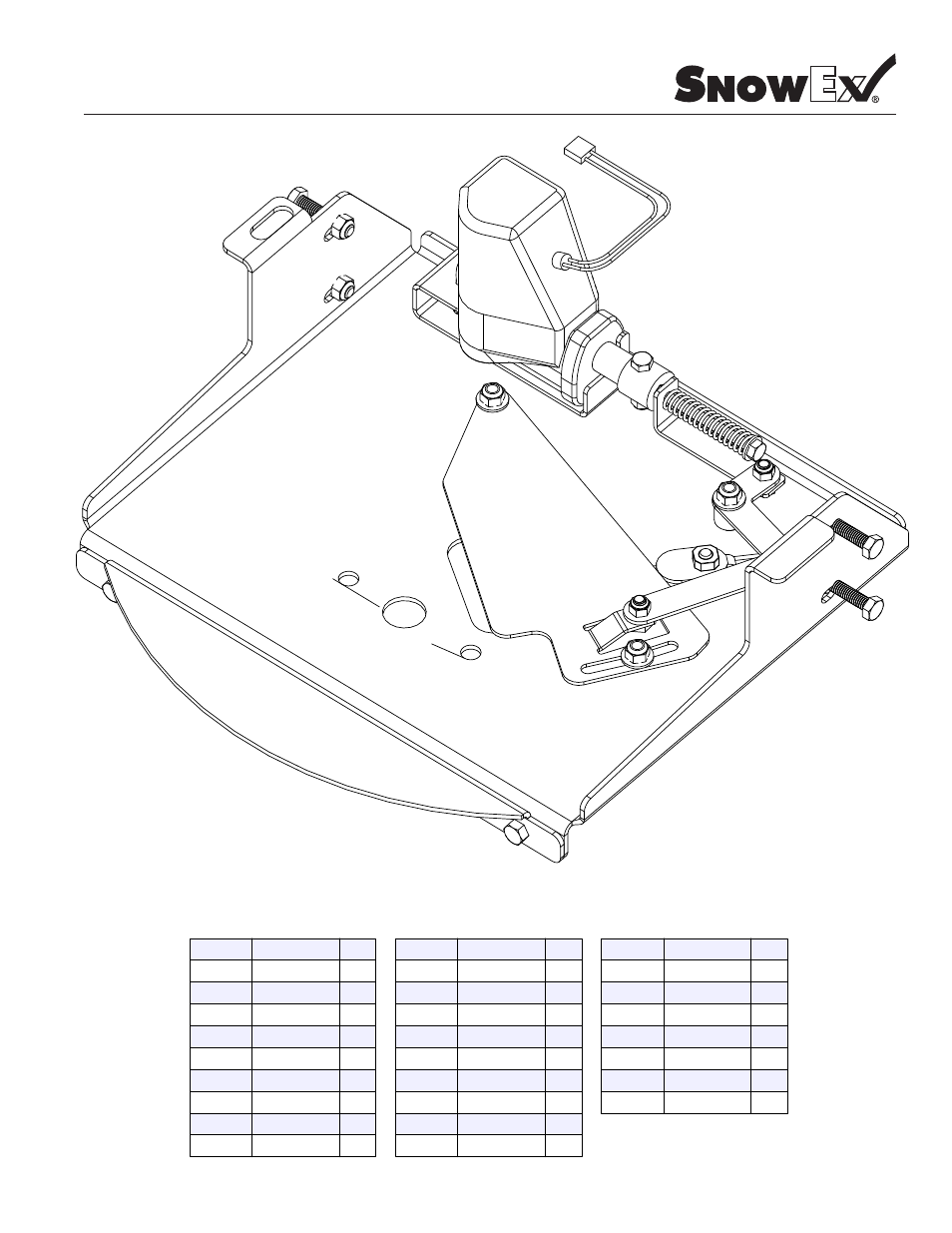

Gate Assembly Parts Breakdown

Model # SP-100

ID #

Part #

Qty

1

D5907

2

2

D6138

4

3

D6524

4

4

T15014

1

5

T15016

5

6

T15018

5

7

T15023

3

8

T15029

1

9

T15037

1

ID #

Part #

Qty

10

T15038

3

11

T15049

3

12

T15074

3

13

T15079

1

14

T15082

1

15

T15086

1

16

T15087

1

17

T15088

1

18

T15089

1

ID #

Part #

Qty

19

T15090

1

20

T15091

1

21

T15092

1

22

T15093

1

23

T15094

1

24

T15095

1

25

T15096

1
